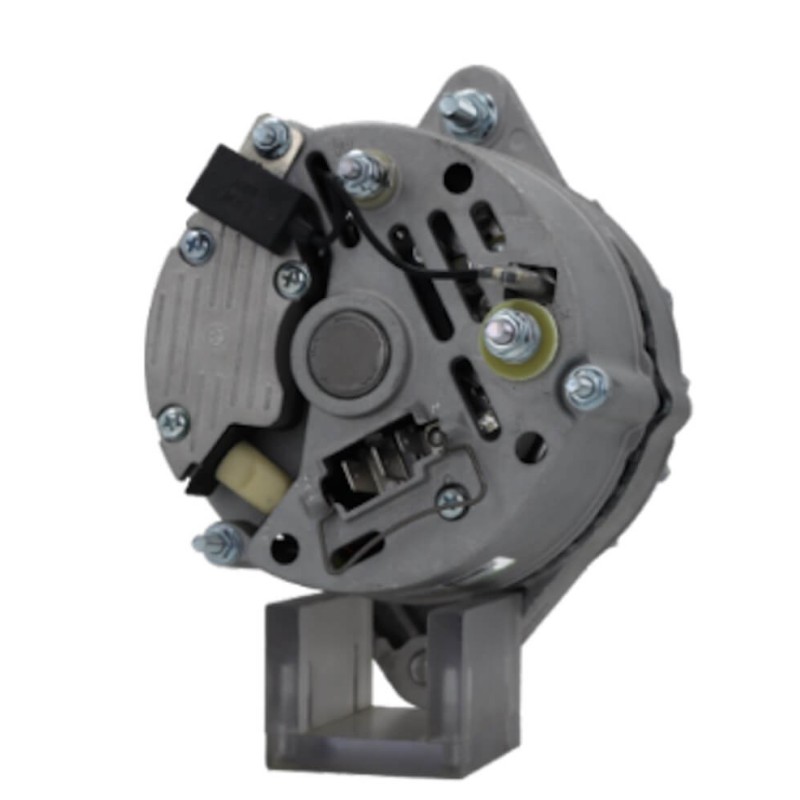

Alternator replacing 11.201.693 / 9AR2856K / 23835 / 23880 / 24019 / 24022 / 24087
Alternator replacing 11.201.693 / 9AR2856K / 23835 / 23880 / 24019 / 24022 / 24087
WITHOUT PULLEY !
| 9AR2513 | Motorola |
| 9AR2513F | Motorola |
| 9AR2514 | Motorola |
| 9AR2514F | Motorola |
| 9AR2553 | Motorola |
| 9AR2553K | Motorola |
| 9AR2556 | Motorola |
| 9AR2556K | Motorola |
| 9AR2566 | Valeo |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
| Terminal | W | |
Physical information | ||
|---|---|---|
| B | Width/holder arm | 29.00 |
| D | Bracket hole | 10.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| J | Radius | 85.00 |
| J | Radius 2 | 87.00 |

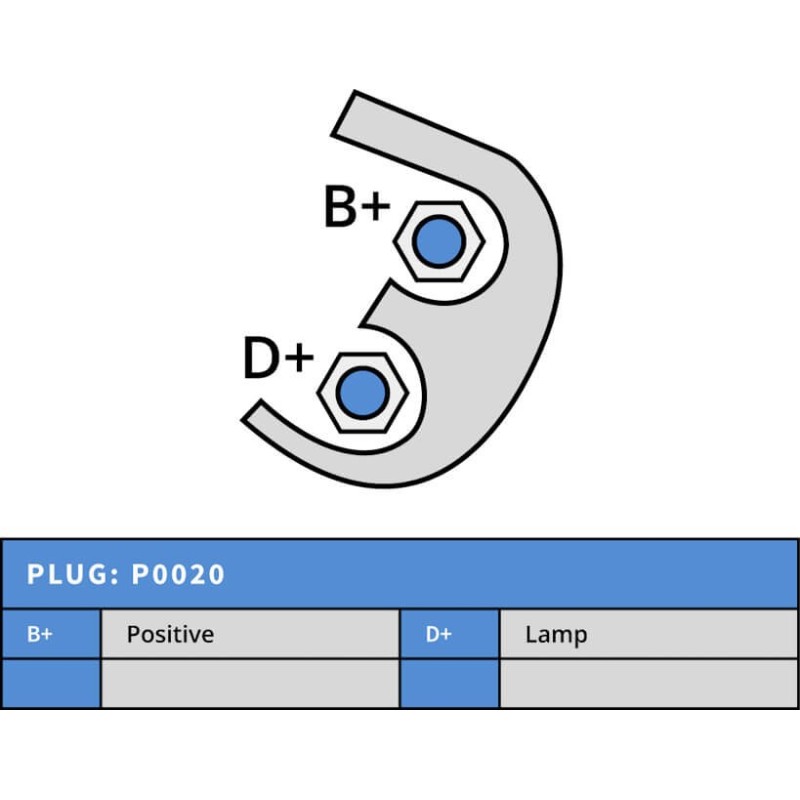

| K | B+ position | Plug |
| K | Position/B+ in min. | 20 |
| N | Rotation | CW |

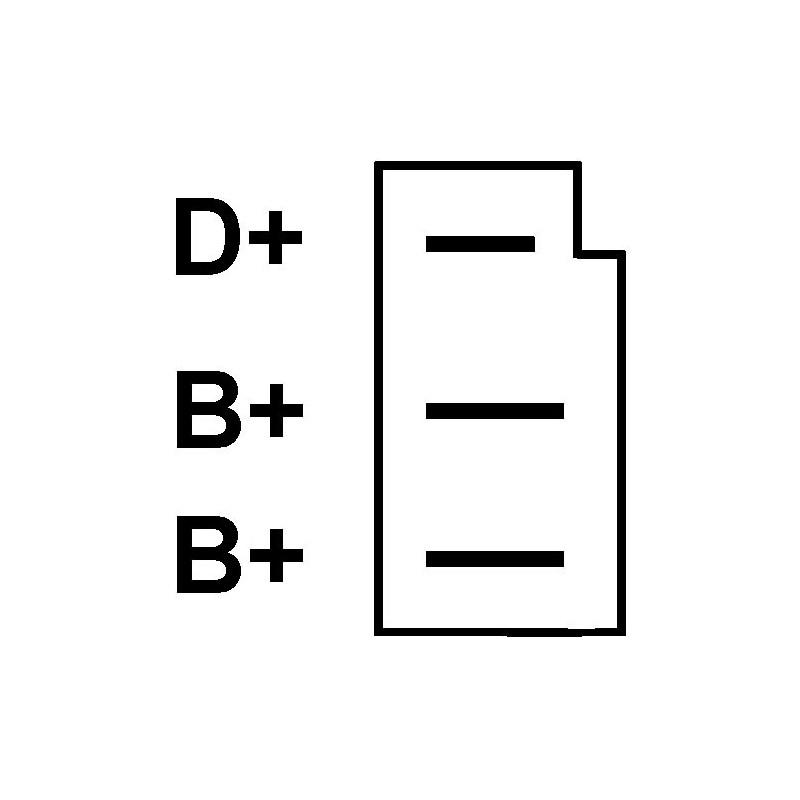

| O | Plug no. 1 | PL22 |
| Q | W plug type | 6.30 |
| R | Total length mm | 159.00 |
GENERIC BRAND
| 11.201.693 | ISKRA |
| 23835 | LUCAS |
| 23835A | LUCAS |
| 23835E | LUCAS |
| 23865 | LUCAS |
| 23865A | LUCAS |
| 23880 | LUCAS |
| 23880A | LUCAS |
| 24019 | LUCAS |
| 24019A | LUCAS |
| 24022 | LUCAS |
| 24022A | LUCAS |
| 24087 | LUCAS |
| 24087A | LUCAS |
| 24087B | LUCAS |
| 24087D | LUCAS |
| 24123 | LUCAS |
| 24123A | LUCAS |
| 24123B | LUCAS |
| 24123P | LUCAS |
| 24123R | PERKINS |
| 2518051 | VALEO |
| 2541130 | VALEO |
| 2541131 | VALEO |
| 2541148 | VALEO |
| 2541148 | MOTOROLA |
| 2928610 | VALEO |
| 2940772 | VALEO |
| 2950700 | VALEO |
| 3405390M1 | MASSEY FERGUSON |
| 3930503R1 | MASSEY FERGUSON |
| 9AR2510 | MOTOROLA |
| 9AR2513 | MOTOROLA |
| 9AR2513F | MOTOROLA |
| 9AR2514 | MOTOROLA |
| 9AR2514F | MOTOROLA |
| 9AR2553 | MOTOROLA |
| 9AR2553K | MOTOROLA |
| 9AR2556 | MOTOROLA |
| 9AR2556K | MOTOROLA |
| 9AR2566 | VALEO |
| 9AR2566G | MOTOROLA |
| 9AR2566K | MOTOROLA |
| 9AR2725 | VALEO |
| 9AR2786 | VALEO |
| 9AR2786K | MOTOROLA |
| 9AR2826K | MOTOROLA |
| 9AR2851 | MOTOROLA |
| 9AR2851K | MOTOROLA |
| 9AR2852 | MOTOROLA |
| 9AR2852K | MOTOROLA |
| 9AR2853 | MOTOROLA |
| 9AR2853K | MOTOROLA |
| 9AR2856 | MOTOROLA |
| 9AR2856K | MOTOROLA |
| 9AR2861K | MOTOROLA |
| 9AR2862 | MOTOROLA |
| 9AR2862K | MOTOROLA |
| 9AR2944K | MOTOROLA |
| 9AR5040K | MOTOROLA |
| 9AR5070K | MOTOROLA |
| CA1387IR | HC-PARTS |
| AAK4554 | ISKRA |
used on:
| Modèle | Modèle série | Référence d'origine du produit | Carburant | Date du | à la date | Tipo moteur | Tipo du moteur | KW | Puissance en chevaux | Tipo de châssis | Tipo de modèle | Cylindré du moteur en cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MF 100 | 194 | - | - | 0 | 0 | 0 | 0 | ||||||
| MF 100 | 152 | - | - | 0 | 0 | 0 | 0 | ||||||
| MF 200 | 284 | 3.9 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 0 | ||||
| MF 200 | 240 | 2.5 | Diesel | 1979 01 | 1988 12 | 0 | 0 | 0 | 3 | ||||
| MF 200 | 254 | 2.5 | Diesel | 1973 01 | 1988 12 | 0 | 0 | 0 | 3 | ||||
| MF 200 | 265 | Diesel | 1981 01 | 1988 12 | 0 | 0 | 0 | 0 | |||||
| MF 200 | 275 | Diesel | 1975 01 | 1988 12 | 0 | 0 | 0 | 0 | |||||
| MF 200 | 245 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | ||||
| MF 200 | 255 | 2.5 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 3 | ||||
| MF 200 | 260 | 3.3 | Diesel | 1977 01 | 1988 12 | 0 | 0 | 0 | 0 |
