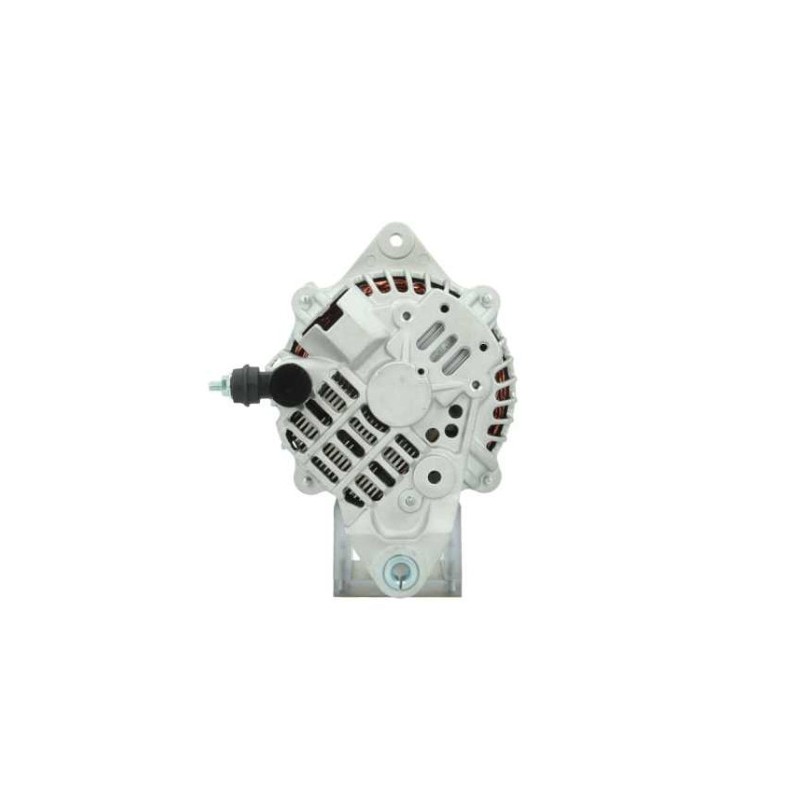

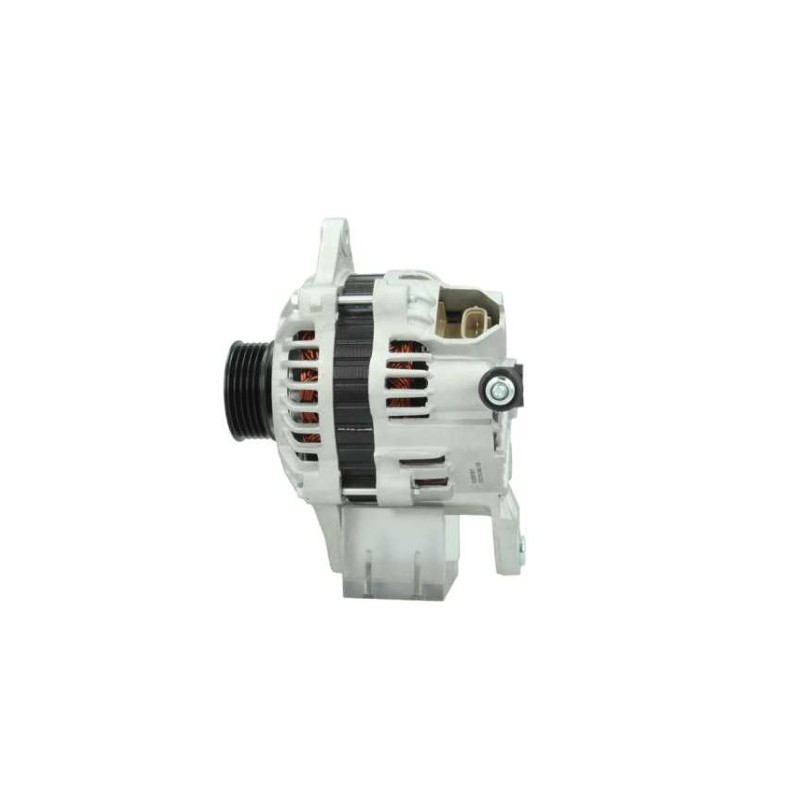

Alternator replacing A002TB3091 / A002TB5391 / A002TG0391 / A2TB3091
W11058n
Alternator NEW replacing :
MITSUBISHI A002TB3091, A002TB5391, A002TG0391, A2TB3091, A2TB5391, A2TG0391, SAAB 32-01-0646, SUBARU 23700-AA380, 23700-AA420, 23700-AA540, 23700-AA541
NO CORE EXCHANGE NEEDED
Features
Specs Electricals | ||
---|---|---|
Voltage | 14 | |
Amp. | 80 |
Physical Information | ||
---|---|---|
A | Pulley dist. | 46.50 |
B | Width/holder arm | 13.00 |
C | Mount. bracket dist | 80.00 |
D | Bracket hole | 8.50 |
E | Belt. adj. brackethole pos. | 60 |
G | Belt. adj. bracket hole | M8 |
H | Pulley dia. | 54.00 |
I | Grooves/pulley | 5 |
J | Radius | 87.00 |
J | Radius 2 | 85.00 |
K | Position B + | M8 |
K | B+ position en min. | 45 |
N | Rotation | Cr |

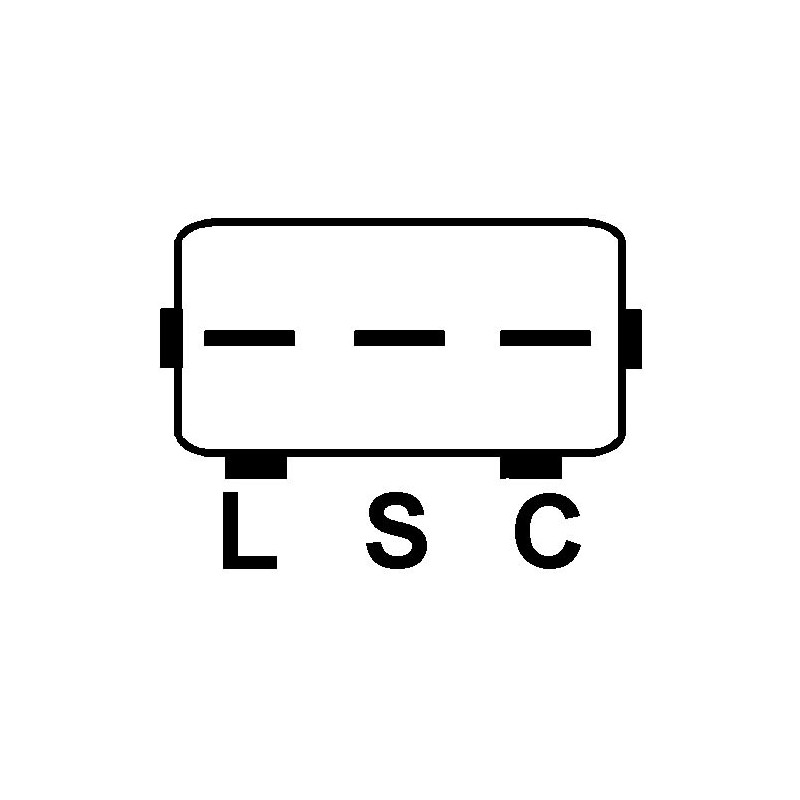

O | Plug n° 1 | PL163 |
Replacing | |
---|---|
23700-AA380 | SUBARU |
23700-AA420 | SUBARU |
23700-AA450 | SUBARU |
23700-AA540 | SUBARU |
A002TB3091 | MITSUBISHI |
A002TB5391 | MITSUBISHI |
A002TB6991 | MITSUBISHI |
A002TG0391 | MITSUBISHI |
A2TB3091 | MITSUBISHI |
A2TB5391 | MITSUBISHI |
A2TB6991 | MITSUBISHI |
A2TG0391 | MITSUBISHI |
CA2083IR | HC-PARTS |
generic brand
replacing :
0986045741 | BOSCH |
0986UR0318 | BOSCH |
11058 | Plug + div |
11058N | WAI |
11058R | WAI |
12060776 | EuroTec |
175510075 | PSH |
175510080 | PSH |
23700AA380 | SUBARU |
23700AA420 | SUBARU |
23700AA450 | SUBARU |
23700AA540 | SUBARU |
284542 | Elstock |
57361 | EAI |
9045741F | Friesen |
934278 | EDR |
A2TB3091 | MITSUBISHI |
A2TB5391 | MITSUBISHI |
A2TB6991 | MITSUBISHI |
A2TG0391 | MITSUBISHI |
ALT5014sa | Electrolog |
ASA415 | ATK |
CA2083IR | HC |
DRA4278 | DELCO REMY |
J5117014 | Nipparts |
KTR351020160 | KTR |
L45740 | ATL |
LRA02102 | LUCAS |
TRA292 | TWA |
fits:
Brand | Model | Tipo | Year | Remarks |
---|---|---|---|---|
SUBARU | Forester 2.0 | [EJ20.] | 01.1998-12.2002 | AC |
SUBARU | Forester 2.0 | [EJ20.] | 01.2003-12.2008 | |
SUBARU | Forester 2.0 Turbo | [EJ20.] | 01.2003-12.2008 | |
SUBARU | Forester 2.5 | [EJ25.] | 01.2003-12.2008 | |
SUBARU | Forester 2.5 MT | [EJ25.] | 01.2003-12.2008 | |
SUBARU | Forester 2.5 XT MT | [EJ25.] | 01.2003-12.2008 | |
SUBARU | Impreza 1.5 R | [EJ154] | 01.2006- | |
SUBARU | Impreza 1.5 R | [EL15] | 01.2006- | |
SUBARU | Impreza 2.0 | [EJ20.] | 01.2003- | |
SUBARU | Impreza 2.0 i Turbo STi | [EJ20.] | 01.2003-12.2007 | |
SUBARU | Impreza 2.0 Turbo | [EJ20.] | 01.2003- | |
SUBARU | Impreza 2.5 WRX | [EJ25.] | 01.2004- | |
SUBARU | Outback 2.5 i 16V | [EJ25.] | 01.2002- |
