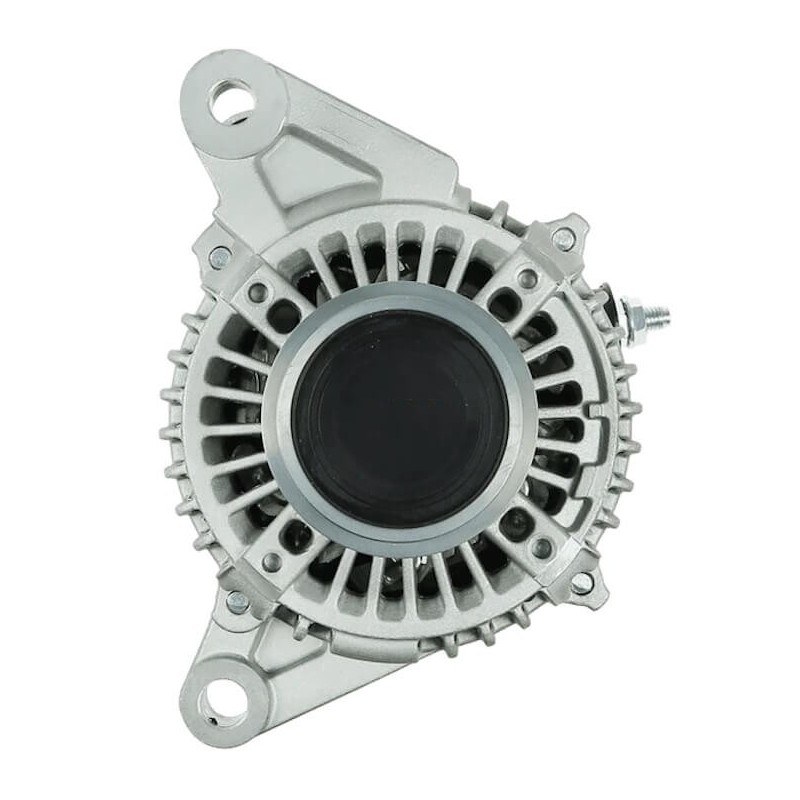

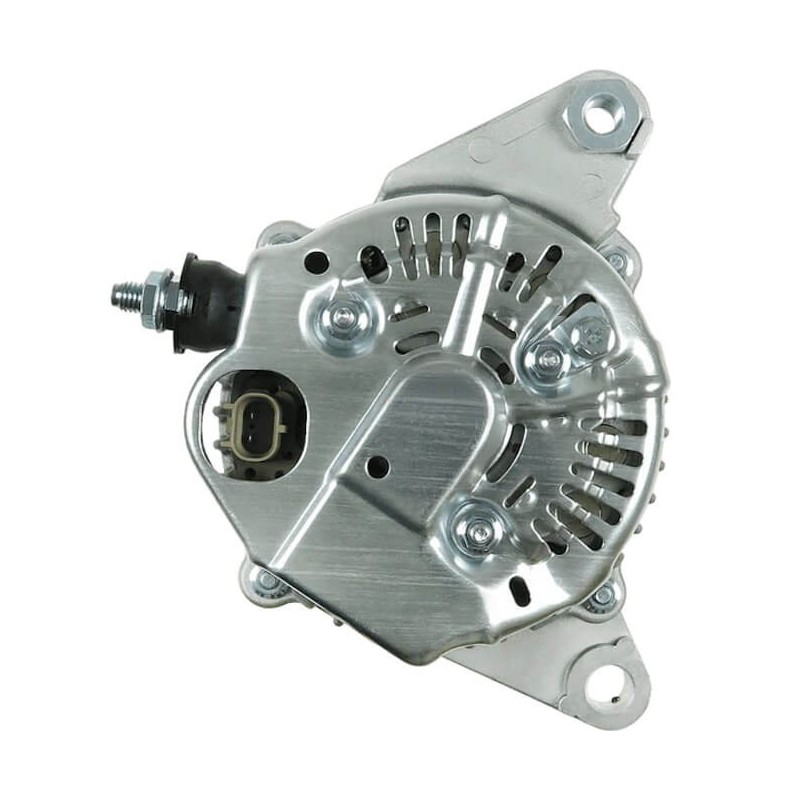

Alternator replacing 121000-3841 / 121000-3842 / 121000-3843 / 121000-3846 / 56041578AD / 56041578AE
Alternator NEW replacing :
CHRYSLER 56041578AD, 56041578AE, DENSO121000-3840, 121000-3841, 121000-3842, 121000-3843, 121000-3844, 121000-3845, 121000-3846
NO CORE EXCHANGE NEEDED
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 110 | |

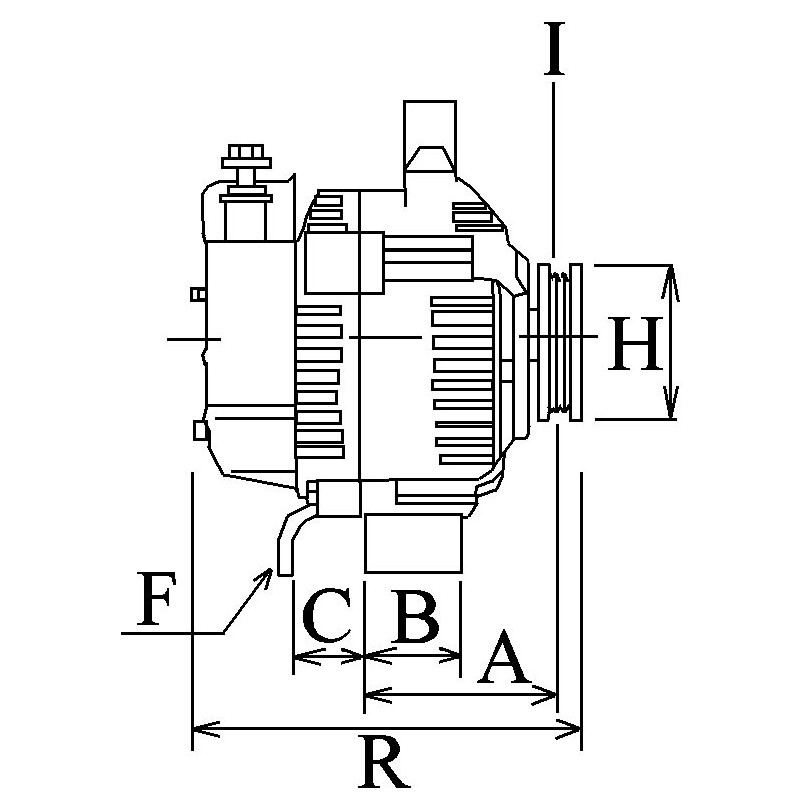

Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 28.00 |
| B | Width/holder arm | 12.80 |
| C | Mount. bracket dist | 68.00 |
| D | Bracket hole | 11.00 |
| E | Belt. adj. brackethole pos. | 10 |
| G | Belt. adj. bracket hole | 12.50 |
| H | Pulley dia. | 57.00 |
| I | Grooves/pulley | 6 |
| J | Radius | 87.00 |
| J | Radius 2 | 88.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 15 |
| N | Rotation | Cr |

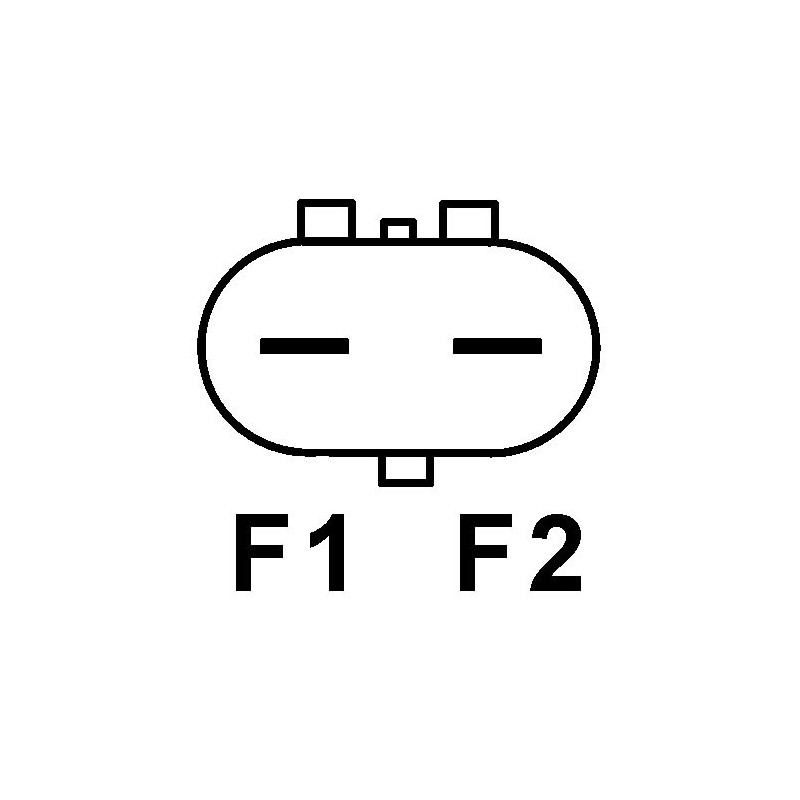

| O | Plug n° 1 | PL135 |
| R | Total length mm | 180.00 |
Replacing | |
|---|---|
| 121000-3841 | DENSO |
| 121000-3842 | DENSO |
| 121000-3843 | DENSO |
| 121000-3846 | DENSO |
| 56041578AD | CHRYSLER |
| 56041578AE | CHRYSLER |
generic brand
| 12090204 | EuroTec |
| 1210003841 | DENSO |
| 1210003842 | DENSO |
| 1210003843 | DENSO |
| 1210003846 | DENSO |
| 23798N | WAI |
| 23798R | WAI |
| 274915 | Elstock |
| 56041578AD | CHRYSLER |
| 56041578AE | CHRYSLER |
| 57082 | EAI |
| 835534110 | PSH |
| DRA0158 | DELCO REMY |
| LRA02798 | LUCAS |
| TNA054 | TWA |
Mounted on :
JEEP
| Model | Model série | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Engine in cm3 | Cylindres |
|---|---|---|---|---|---|---|---|---|---|---|
| Cherokee | Cherokee | Diesel | 2002 11 | - | ENR | CRD | 110 | 150 | 2776 | 4 |
| Cherokee | Cherokee | Diesel | 2001 09 | - | R425 (DOHC) | CRD | 105 | 143 | 2499 | 4 |
