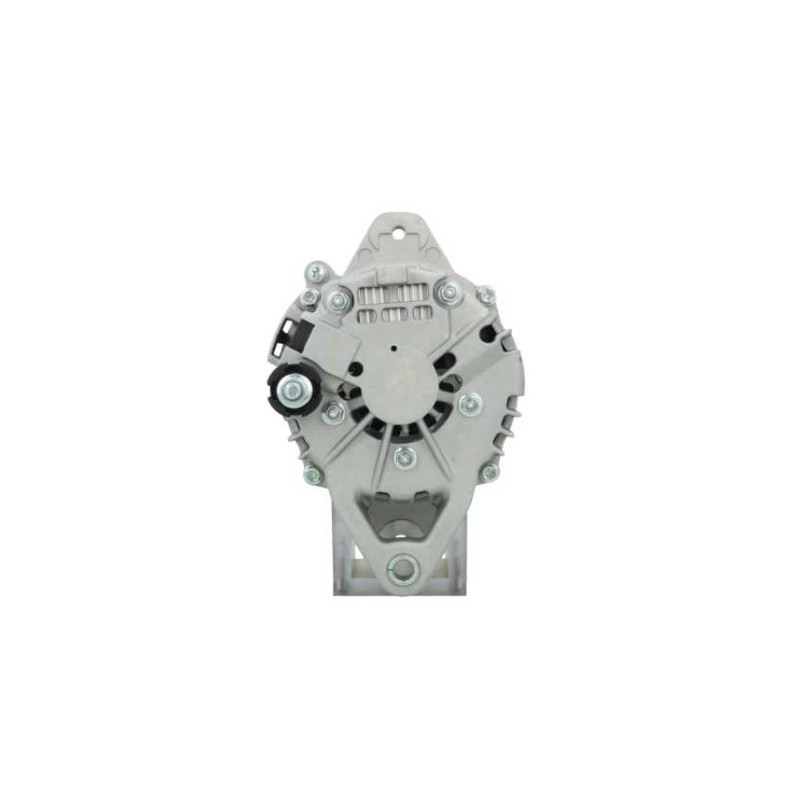

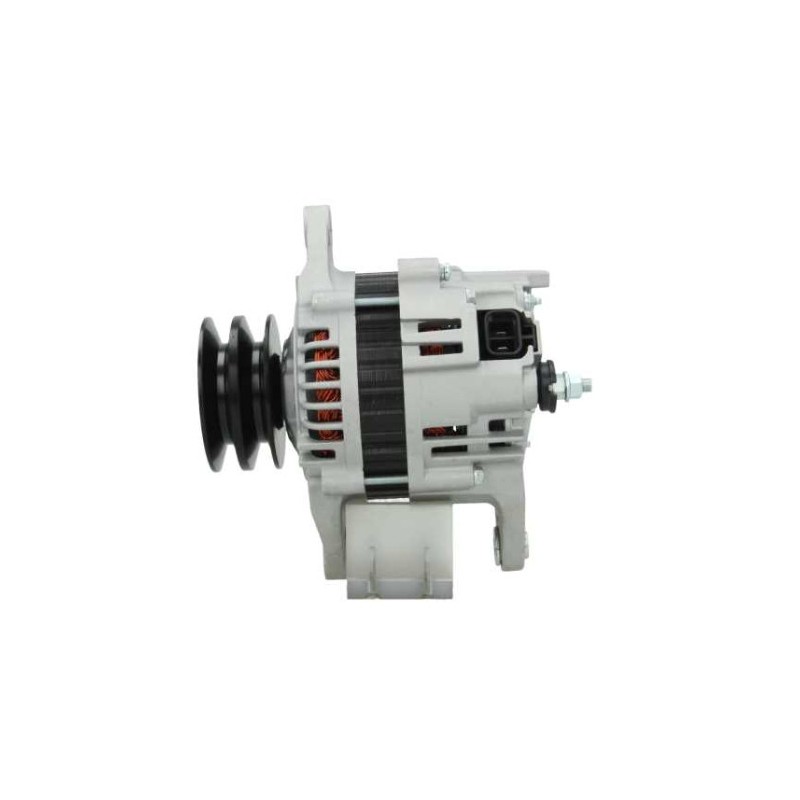

Alternator replacing LR160-728 / LR160-728B / LR160-728C / LR160-728E / 23100-7T400 / 23100-7T402 / 23100-7T403 / 23100-7T40A
Alternator NEW replacing :
HITACHI LR160-728, LR160-728B, LR160-728C, LR160-728E, NISSAN, INFINITI 23100-7T400, 23100-7T402, 23100-7T403
0986045681 / DRA4095 / ALTH134 / KTR330022120 / LRA01662
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 60 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 42.00 |
| B | Width/holder arm | 12.80 |
| C | Mount. bracket dist | 80.90 |
| D | Bracket hole | 10.40 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 85.00 |
| I | Grooves/pulley | 2 |
| J | Radius | 90.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 45 |
| N | Rotation | Cr |

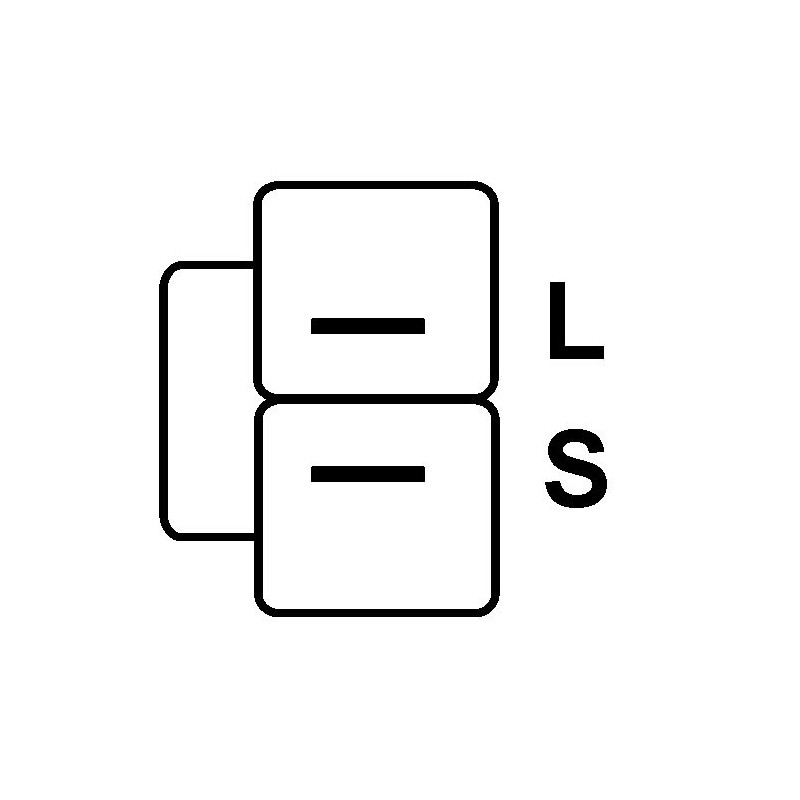

| O | Plug n° 1 | PL07 |
| R | Total length mm | 181.00 |
generic brand
replacing
| 0986045681 | BOSCH |
| 113383 | Cargo |
| 12060298 | EuroTec |
| 165011060 | PSH |
| 22663N | WAI |
| 22663R | WAI |
| 2310042K00 | NISSAN |
| 231007T400 | NISSAN |
| 231007T402 | NISSAN |
| 231007T403 | NISSAN |
| 231007T403REPL | NISSAN |
| 231007T40A | NISSAN |
| 282874 | Elstock |
| 56931 | EAI |
| 5825SP | Spidan |
| 737752001 | HELLA |
| 9051178F | Friesen |
| 934095 | EDR |
| ADA451 | ATK |
| ADA968 | ATK |
| ALT3008Gsa | Electrolog |
| ALT3008sa | Electrolog |
| ALTH134 | UNIPOINT |
| DRA4095 | DELCO REMY |
| F042A0H134 | BOSCH |
| HJA1516IR | HC |
| J5111078 | Nipparts |
| JA1516IR | HC |
| KTR330022120 | KTR |
| L68840 | ATL |
| LR150221 | HITACHI |
| LR160728 | HITACHI |
| LR160728B | HITACHI |
| LR160728C | HITACHI |
| LR160728E | HITACHI |
| LR160728EREPL | HITACHI |
| LRA01662 | LUCAS |
| TRA006 | TWA |
Mounted on :
NISSAN, Europe
| Model | Model série | Reference d'origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Tipoe châssis | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| King Cab | King Cab | 2.7 | Diesel | 1987 08 | 1998 02 | TD27 | TD | 73 | 99 | Pick-up | 4WD | 2663 | 4 | D21 |
| Pick-Up | Pick-Up | 2.5 | Diesel | 1998 02 | - | TD25 | Diesel | 61 | 83 | Pick-up | 2494 | 4 | D22 | |
| Pick-Up | Pick-Up | 2.5 | Diesel | 1998 05 | - | TD25Ti | TD | 76 | 103 | Pick-up | 4WD | 2494 | 4 | D22 |
| Pick-Up | Pick-Up | 2.5 | Diesel | 1998 02 | - | TD25 | Diesel | 61 | 83 | Pick-up | 4WD | 2494 | 4 | D22 |
