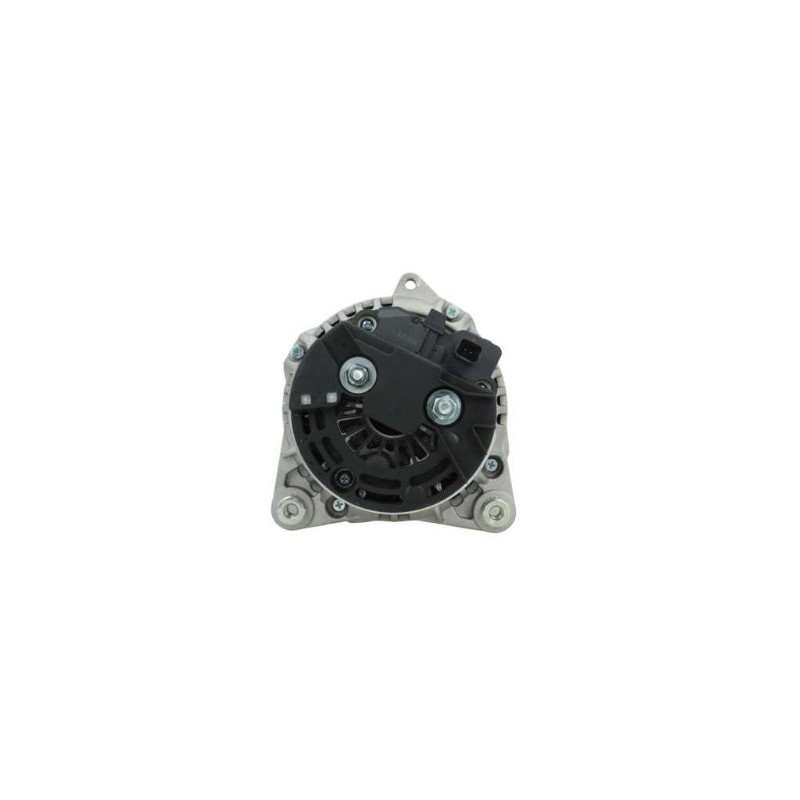

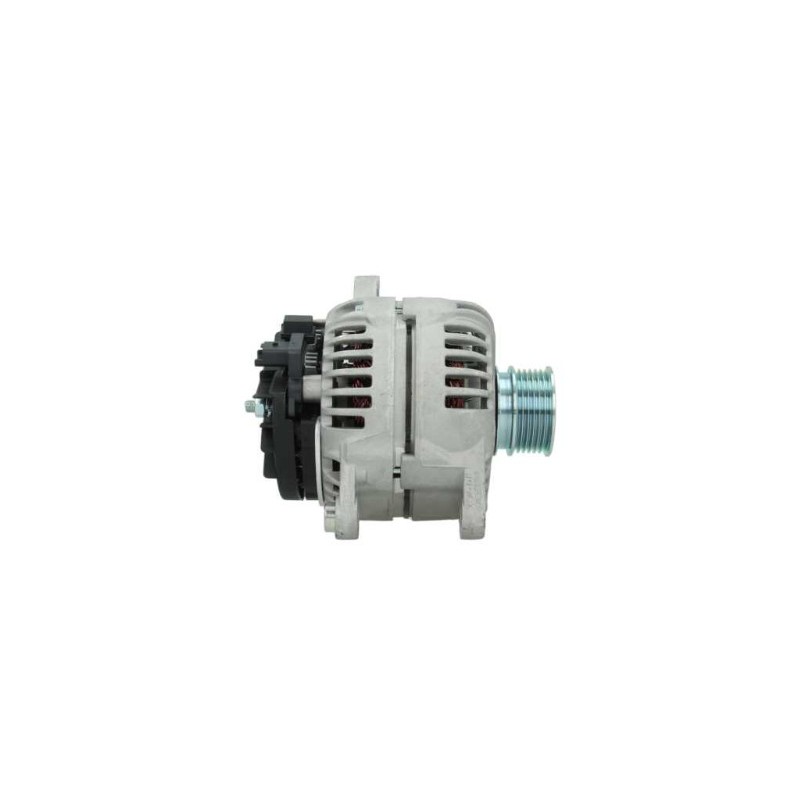

Alternator replacing BOSCH 0124525070 / 0124525136 / 0124525207
Alternator replacing BOSCH 0124525070 / 0124525136 / 0124525207 / 0124525536 / 0986081110
= RENAULT 7711368386 / 8200327183 / 8200660029 / 8200992208
DRA0862 / LRA03516
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.75 |
| G | Belt. adj. bracket hole | 8.75 |
| B | Width/holder arm | 14.50 |
| E | Belt. adj. brackethole pos. | 45 |
| C | Mount. bracket dist | 61.20 |
| H | Pulley dia. | 56.00 |
| A | Pulley dist. | 38.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 88.00 |
| j | Radius 2 | 88.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

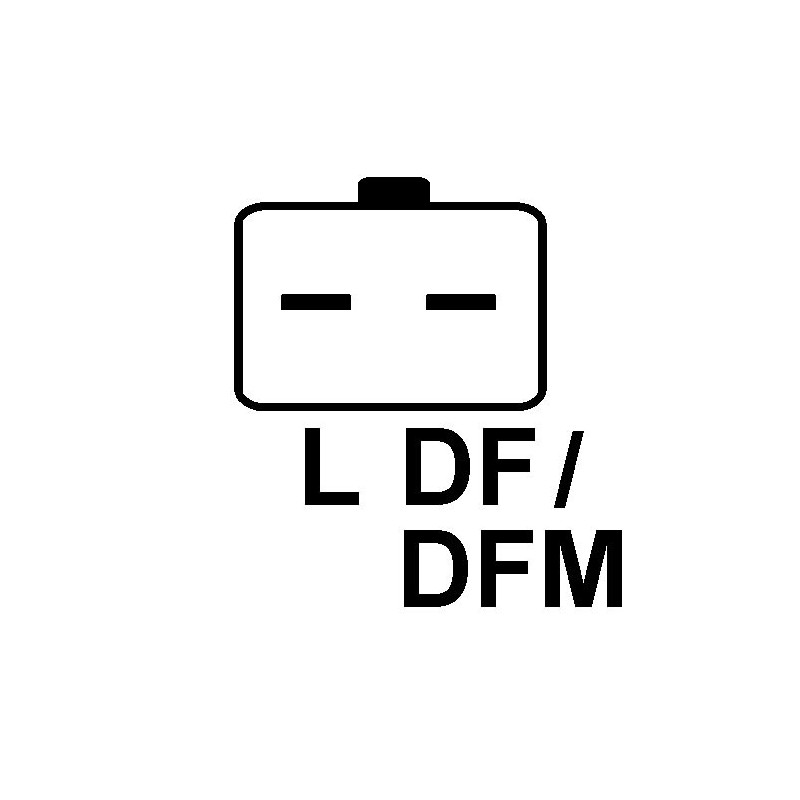

| o | Plug no. 1 | PL72 |
| R | Total length mm | 195.00 |
| Lamp | Active | |
Replacing | |
|---|---|
| 0124525070 | BOSCH |
| 0124525136 | BOSCH |
| 0124525207 | BOSCH |
| 0124525536 | BOSCH |
| 7711368386 | RENAULT |
| 8200327183 | RENAULT |
| 8200660029 | RENAULT |
| 8200992208 | RENAULT |
| ca1944ir | HC-PARTS |
Mounted on :
RENAULT / DACIA
| Model série | Tipo of Gas | Start build | End built | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Cylindres | Descrip- tion du type from | Remark | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Megane | 1.4 | Unleaded | 2003 09 | K4J740 | 72 | 98 | 1390 | 4 | ||||
| Megane | 1.4 | Unleaded | 2003 08 | K4J740 | 72 | 98 | Break | 1390 | 4 | |||
| Megane | 1.4 | Unleaded | 2003 08 | K4J730 | 72 | 98 | Break | 1390 | 4 | |||
| Megane | 1.6 | Unleaded | 2003 09 | K4M760 | 83 | 113 | Décapotable | 1598 | 4 | |||
| Megane | 1.4 | Unleaded | 2003 09 | K4J730 | 72 | 98 | 1390 | 4 | ||||
| Megane | 1.6 | Unleaded | 2003 09 | K4M760 | 83 | 113 | 1598 | 4 | ||||
| Megane | 1.4 | Unleaded | 2002 11 | K4J730 | 16V | 72 | 98 | Hayon | 1390 | 4 | BM0_, CM0_ | |
| Megane | 1.6 | Unleaded | 2002 11 | K4M760 | 16V | 83 | 113 | Hayon | 1598 | 4 | BM0_, CM0_ | |
| Megane | 1.6 | Unleaded | 2003 09 | K4M761 | 83 | 113 | Décapotable | 1598 | 4 | |||
| Megane | 1.6 | Unleaded | 2005 05 | K4M812 | 16V | 83 | 113 | 1598 | 4 | LM_ |
| Duster | 1.6 | Unleaded | 2010 06 | - | K4M606 | 16V | 77 | 105 | 4x4 | 1598 | 4 | ||
| Duster | 1.6 | Bi-Fuel | 2011 04 | - | K4M696 | 16V | 77 | 105 | LPG | 1598 | 4 | ||
| Logan | 1.6 | Diesel | 2010 05 | - | K7M800 | Flexfuel | 62 | 84 | Pick Up | 1598 | 4 | US_ | |
| Logan | 1.6 | Unleaded | 2010 05 | - | K7M800 | MPi | 62 | 84 | Boîte/Trucksnette | 85 | 1598 | 4 | FS_ |
| Logan | 1.6 | Unleaded | 2010 05 | - | K7M718 | 62 | 84 | Break | 1598 | 4 | |||
| Logan | 1.6 | Unleaded | 2010 05 | - | K7M800 | MPi | 62 | 84 | 85 | 1598 | 4 | LS_ | |
| Logan | 1.6 | Unleaded | 2010 05 | - | K7M800 | MPi | 62 | 84 | Break | 85 | 1598 | 4 | KS_ |
| Logan | 1.6 | Diesel | 2010 05 | - | K7M800 | BiFuel | 62 | 84 | Boîte/Trucksnette | Express BiFuel | 1598 | 4 | FS_ |
| Logan | 1.6 | Diesel | 2010 05 | - | K7M718 | Flexfuel | 62 | 84 | 1598 | 4 | LS_ | ||
| Sanfromro | 1.6 | Diesel | 2011 01 | - | K4M690 | Flexfuel | 77 | 105 | Hayon | 1598 | 4 |
