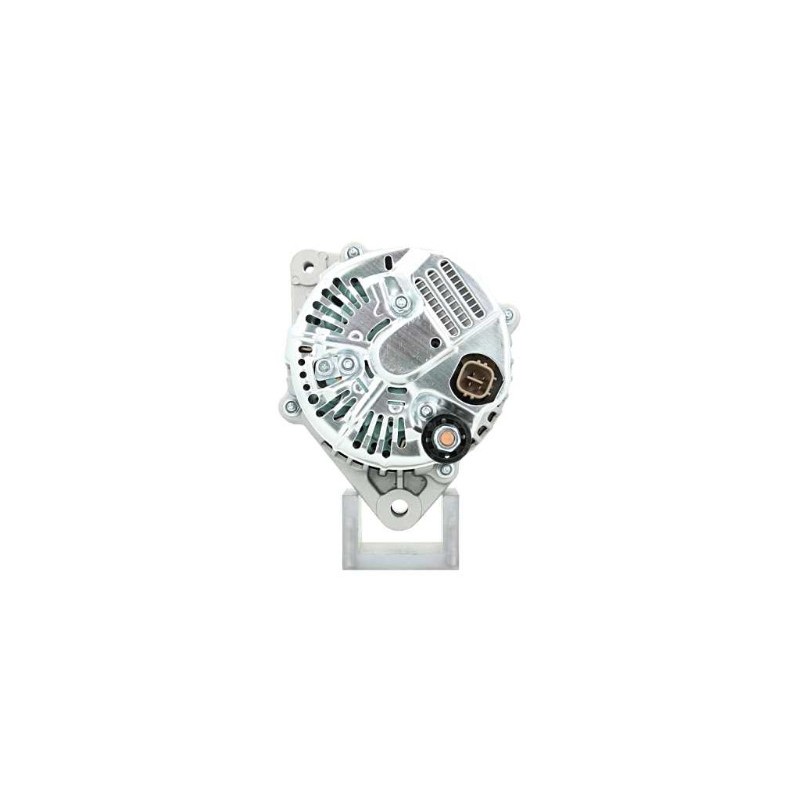

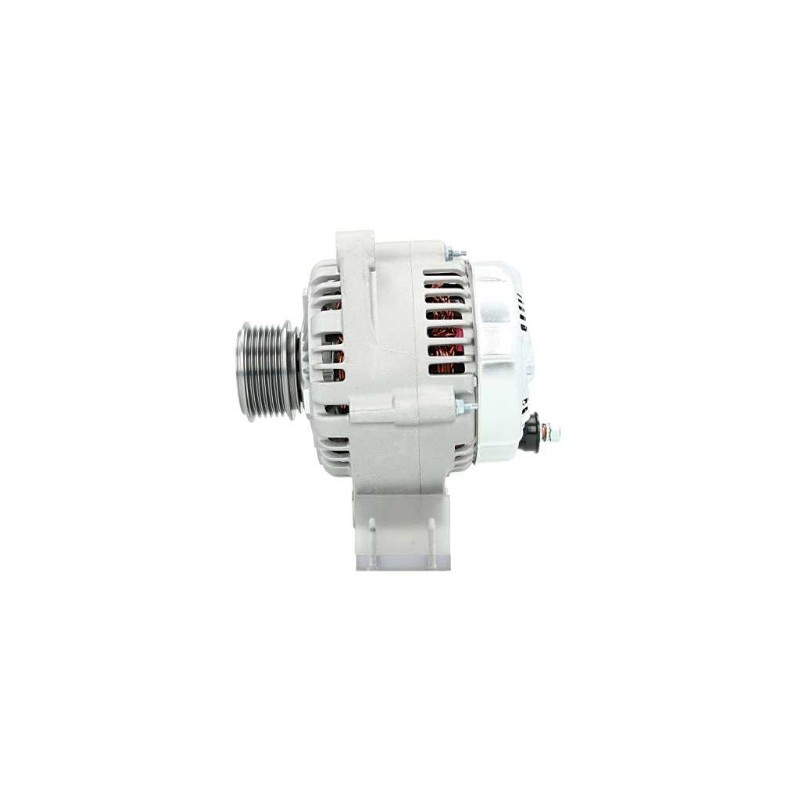

Alternator replacing 102211-0870 / FORD 1X4310300CB / JAGUAR C2S3710
Alternator NEW replacing DENSO 102211-0870 / FORD 1X4310300CB / JAGUAR C2S3710
DRA0731 / LRA03196 / 9090639F
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 58.00 |
| E | Belt. adj. brackethole pos. | 7 |
| H | Pulley dia. | 58.00 |
| A | Pulley dist. | 97.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

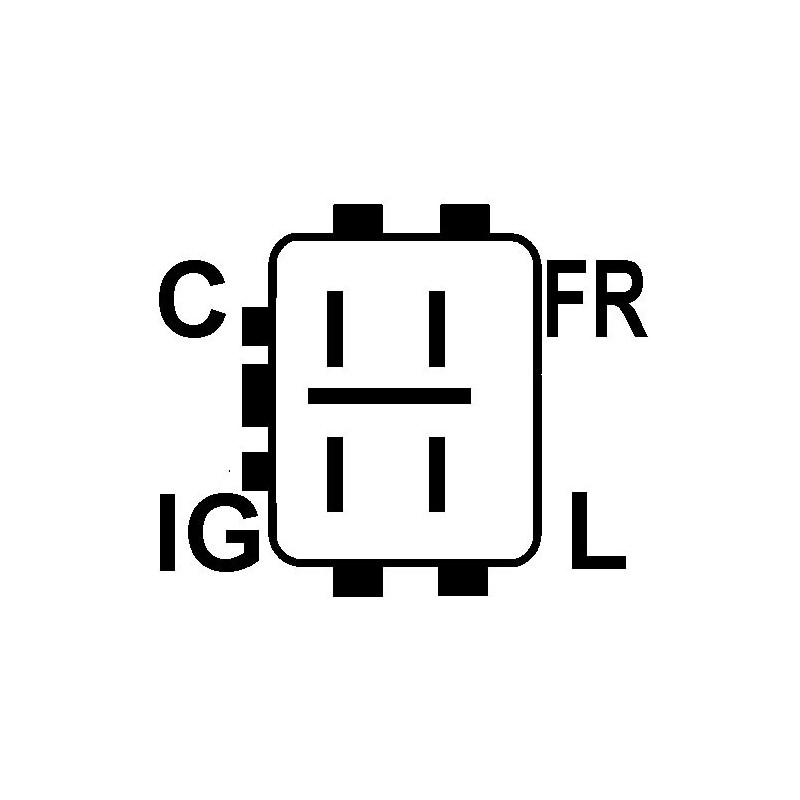

| o | Plug no. 1 | PL60 |
| R | Total length mm | 202.00 |
Replacing | |
|---|---|
| 102211-0870 | DENSO |
| 1X4310300CB | FORD |
| 1X4310300CB | JAGUAR |
| C2S3710 | JAGUAR |
| 1022110870 |
| 13926 |
| 13926N |
| 1X4310300CB |
| 285808 |
| 2905088 |
| 845504120 |
| 9090639F |
| 930731 |
| DRA0731 |
| L80820 |
| LRA03196 |
| TNA018 |
generic brand
Mounted on :
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X-type | X-type | 2.5 | Unleaded | 2001 06 | - | XB | V6 | 144 | 196 | 2495 | 6 | CF1 | ||
| X-type | X-type | 2.5 | Unleaded | 2004 02 | - | XB | V6 | 144 | 196 | Break | 2495 | 6 | ||
| X-type | X-type | 3.0 | Unleaded | 2001 06 | - | AJ-V6 | V6 | 169 | 230 | 2967 | 6 | |||
| X-type | X-type | 3.0 | Unleaded | 2004 02 | - | AJ-V6 | V6 | 169 | 230 | Break | 2967 | 6 |
