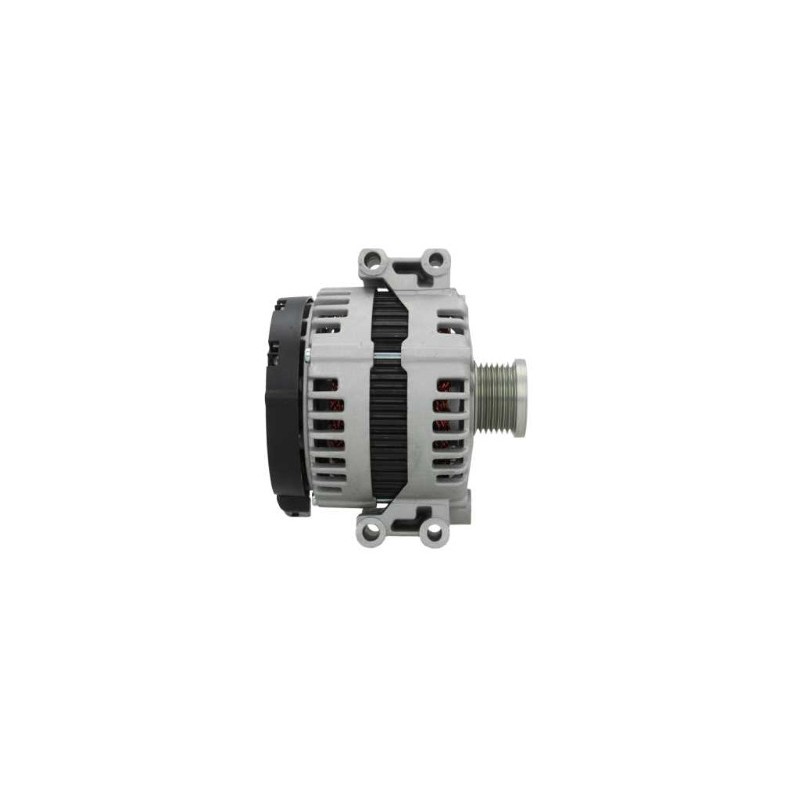

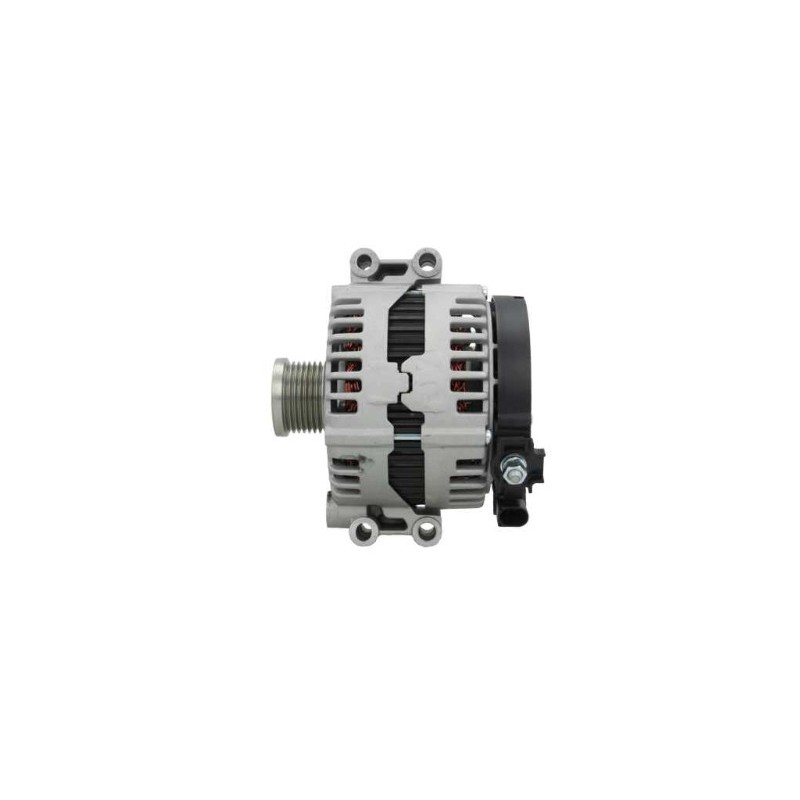

Alternator replacing 0121715016 / 0121715116 / 12317557789 / 12317558219
Alternator NEW replacing BOSCH 0121715016 / 0121715116 / BMW 12317557789 / 12317558219 / 12317558220
0986048830 / DRA0165 / LRA03107 / 9090690F / KTR431096360 / ALT1289sa
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.50x10.50 |
| G | Belt. adj. bracket hole | 9.50 |
| B | Width/holder arm | 62.50 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 40.80 |
| H | Pulley dia. | 49.00 |
| A | Pulley dist. | 30.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

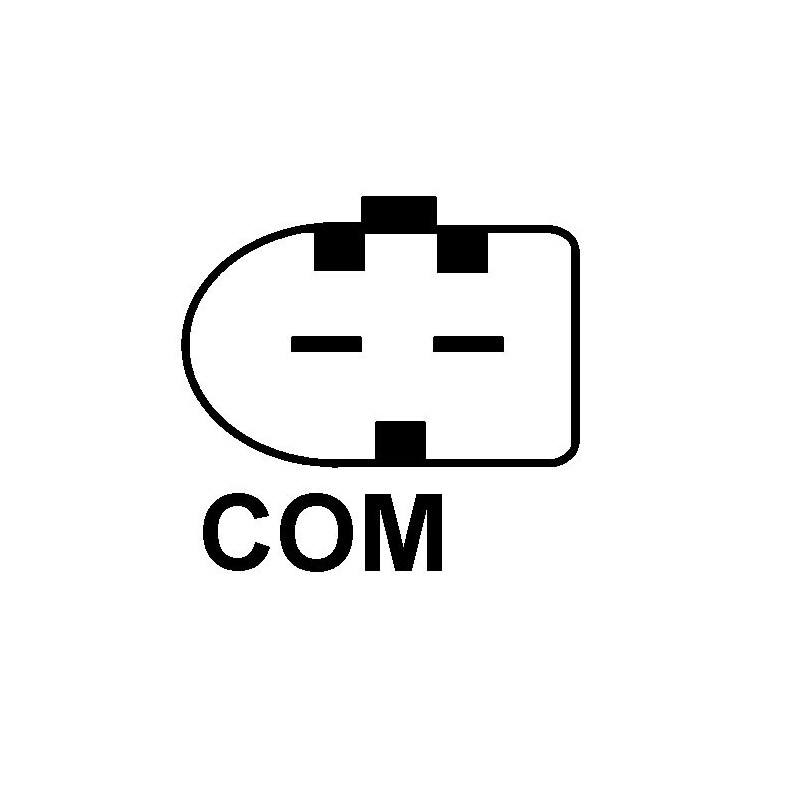

| o | Plug no. 1 | PL86 |
| G | Belt. adj. bracket hole 2 2 | 10.50 |
| R | Total length mm | 178.00 |
Replacing | |
|---|---|
| 0121715016 | BOSCH |
| 0121715116 | BOSCH |
| 12317557789 | BMW |
| 12317558219 | BMW |
| 12317558220 | BMW |
generic brand
Mounted on :
BMW
| 1 | 135 | 3.0 | Unleaded | 2008 03 | - | N55B30A | i | 225 | 306 | Décapotable | 2979 | 6 | E88 | |
| 3 | 335 | 3.0 | Unleaded | 2006 09 | - | N55B30A | Xi | 225 | 306 | Coupé | 2979 | 6 | E92 | |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | 2011 12 | N55B30A | i | 225 | 306 | Xdrive | 2979 | 6 | E90 | |
| 3 | 335 | 3.0 | Unleaded | 2009 01 | 2013 06 | N54B30A | i | 224 | 305 | Coupé | xDrive | 2979 | 6 | E92 |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | - | N55B30A | i | 225 | 306 | Break | Xdrive | 2979 | 6 | E91 |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | - | N55B30A | i | 225 | 306 | Coupé | Xdrive | 2979 | 6 | E92 |
| 3 | 335 | 3.0 | Unleaded | 2007 03 | 2010 02 | N54B30A | xi | 240 | 326 | Coupé | 2979 | 6 | E92 | |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | 2011 12 | N54B30A | i | 225 | 306 | Xdrive | 2979 | 6 | E90 | |
| 3 | 335 | 3.0 | Unleaded | 2007 09 | 2011 12 | N54B30A | Xi | 225 | 306 | 2979 | 6 | E90 | ||
| 3 | 335 | 3.0 | Unleaded | 2006 09 | - | N54B30A | Xi | 225 | 306 | Coupé | 2979 | 6 | E92 |
| 3 | 335 | 3.0 | Unleaded | 2007 09 | 2011 12 | N55B30A | Xi | 225 | 306 | 2979 | 6 | E90 | ||
| 3 | 335 | 3.0 | Unleaded | 2007 03 | - | N54B30A | Xi | 225 | 306 | Break | 2979 | 6 | E91 | |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | - | N54B30A | i | 225 | 306 | Break | Xdrive | 2979 | 6 | E91 |
| 3 | 335 | 3.0 | Unleaded | 2008 09 | - | N54B30A | i | 225 | 306 | Coupé | Xdrive | 2979 | 6 | E92 |
| M1 | M1 | 3.0 | Unleaded | 2011 04 | 2012 06 | N54B30A | 250 | 340 | Coupé | 2979 | 6 | E82 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
