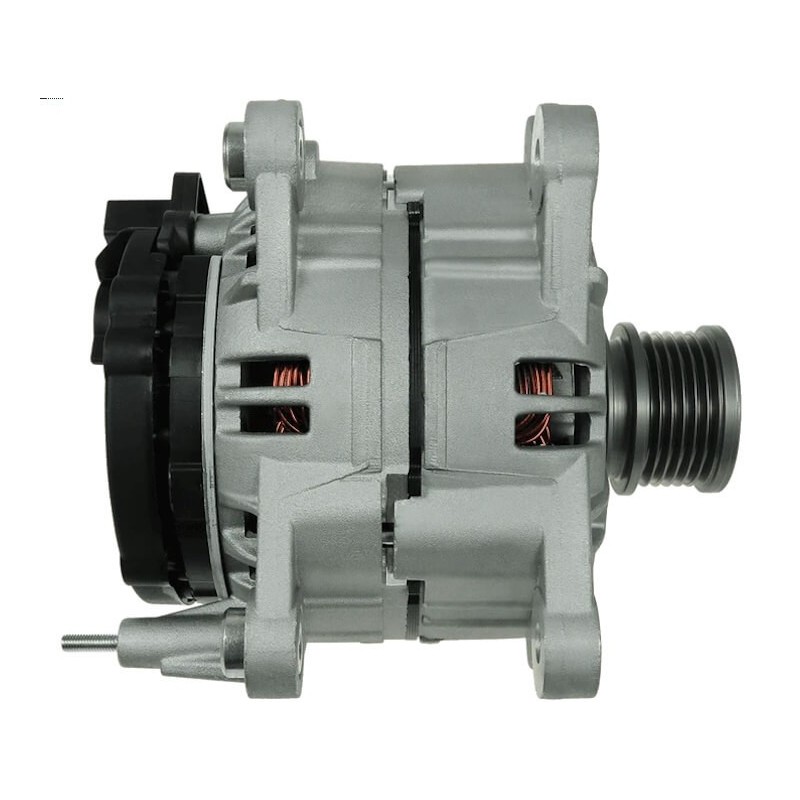

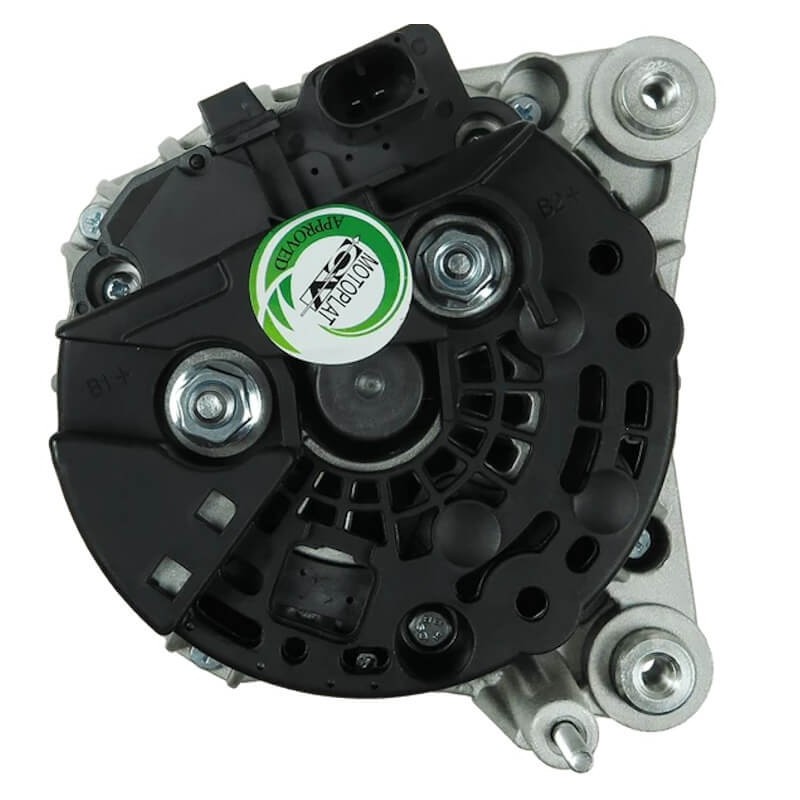

Alternator replacing 0124525146 / TG14C023 / TG14C034 / 03L903024B
W115730
0986083050 | BOSCH | CAL15456OS | CASCO |
11425N | WAI / TRANSPO | CAL15456RS | CASCO |
115730 | CARGO | DRA0483 | DELCO |
2015456 | SANDO | LRA03241 | LUCAS |
2543569 | VALEO | LRA3241 | LUCAS |
2543569A | VALEO | PRAS366 | 3EFFE |
2543569B | VALEO | PRAS366V | 3EFFE |
2616267A | VALEO | TG14C023 | VALEO |
301782RI | KUHNER | TG14C034 | VALEO |
301782RIB | KUHNER | TG14C050 | VALEO |
Features
Information:
Electrical Information | ||
---|---|---|
Voltage | 14 | |
Amp | 140 |
Physical Information | ||
---|---|---|
D | Bracket hole | 8.50 |
G | Belt. adj. bracket hole | 8.50 |
B | Width/holder arm | 14.10 |
E | Belt. adj. brackethole pos. | 45 |
C | Mount. bracket dist | 61.00 |
H | Pulley dia. | 49.50 |
A | Pulley dist. | 39.50 |
i | Grooves/pulley | 6 |
j | Radius | 90.00 |
j | Radius 2 | 90.00 |
k | Position B + | M8 |
n | Rotation | CW |

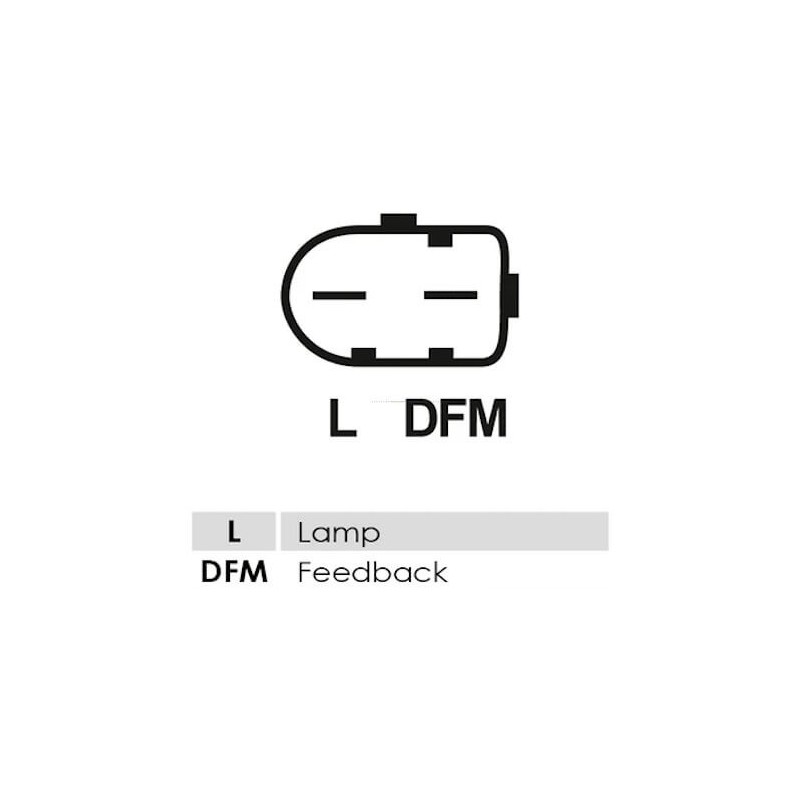

o | Plug no. 1 | PL61 |
R | Total length mm | 195.00 |
generic brand
replacing
0124525146 | BOSCH | ALV3023 | KRAUF |
03L903023P | VW | ALV3023UX | KRAUF |
03L903023PX | VW | BOS0124525146 | WOODAUTO |
03L903024B | VW | CA2136IR | HC PARTS |
04B903023A | VW | CAL15456 | CASCO |
06F903023N | VW | CAL15456AS | CASCO |
06F903023NX | VW | CAL15456ES | CASCO |
06F903023P | VW | CAL15456GS | CASCO |
0986083050 | BOSCH | CAL15456OS | CASCO |
11425N | WAI / TRANSPO | CAL15456RS | CASCO |
115730 | CARGO | DRA0483 | DELCO |
2015456 | SANDO | LRA03241 | LUCAS |
2543569 | VALEO | LRA3241 | LUCAS |
2543569A | VALEO | PRAS366 | 3EFFE |
2543569B | VALEO | PRAS366V | 3EFFE |
2616267A | VALEO | TG14C023 | VALEO |
301782RI | KUHNER | TG14C034 | VALEO |
301782RIB | KUHNER | TG14C050 | VALEO |
301782RIV | KUHNER | TG14C069 | VALEO |
32440343 | HERTH+BUSS | UD13501A | AS-PL |
553483RI | KUHNER | VALTG14C023 | WOODAUTO |
553483RIV | KUHNER | 209104 | ERA |
57538 | EAI | 442448 | LOGISTIK |
89215305 | POWERMAX | ANM32703X | ANDEL |
8EL738213-431 | HELLA | ALT10230 | ELECTROLOG |
90-15-6598 | WILSON | ALT579CP | ROLLCO |
9215305 | POWERMAX | 03L903023CX | VW |
A-6534 | DIXIE | 03L903024S | VW |
A0533S | AS-PL | 03L903024SX | VW |
AEC1782 | AUTOELECTRO | 06F903023PX | VW |
AI-90130 | AINDE | F000BL0895 | FIAT |
ALB3023AN | KRAUF | STX102238 | STARDAX |
ALB3023UX | KRAUF | STX102241 | STARDAX |
ALT174560 | SIOM | STX102245 | STARDAX |
ALTS366 | 3EFFE | STX102245R | STARDAX |
ALTS366V | 3EFFE |
Mounted on :
Brand | Model | Typ | Year | Remarks | Brand | Model | Typ | Year |
AUDI | A3 3.2 Quattro | [BDB] | 01.2003-12.2005 | AC | VW | Transporter 2.0 TDi | [CAAB] | 01/09/09 |
AUDI | A3 3.2 Quattro | [BMJ] | 01.2003-12.2005 | AC | VW | Crafter 2.0 TDi | [CKUC] | 01/01/11 |
AUDI | TT 3.2 Quattro | [BUB] | 01.2006-12.2010 | VW | Multivan 2.0 TDi | [CAA.] | 01/01/09 | |
AUDI | TT 2.0 Quattro | [CDLA] | 01/05/08 | VW | Amarok 2.0 TDi 4-Motion | [CNFA] | 01/01/10 | |
AUDI | TT 2.0 Quattro | [CDMA] | 01/05/08 | VW | Caravelle 2.0 TDi 4-Motion | [CAAC] | 01/01/15 | |
SEAT | Exeo 2.0 TDi ST | [CA..] | 01/01/09 | VW | Transporter 2.0 TDi | [CAAB] | 01/01/15 | |
SEAT | Exeo 2.0 TDi ST | [CAGA] | 01/05/09 | VW | Amarok 2.0 TDi 4-Motion | [CNFA] | 01/09/10 | |
SEAT | Exeo 2.0 TDi ST | [CAGC] | 01/07/09 | VW | Amarok 2.0 BiTDi | [CDCA] | 01/09/10 | |
SEAT | Exeo 2.0 TDi ST | [CAHA] | 01/05/09 | VW | Amarok 2.0 TDi 4-Motion | [CNFB] | 01/01/12 | |
SEAT | Exeo 2.0 TDi ST | [CG..] | 01/01/09 | VW | Crafter 2.0 TDi | [CS..] | 01/01/11 | |
SEAT | Exeo 2.0 TDi ST | [CGLB] | 01/05/09 | VW | Amarok 2.0 BiTDi 4-Motion | [CDCA] | 01/09/10 | |
SEAT | Exeo 2.0 TDi ST | [CJ..] | 01/01/09 | VW | Transporter 2.0 TDi 4-Motion | [CAA.] | 01/01/09 | |
SEAT | Exeo 2.0 TDi ST | [CJCA] | 01/05/09 | VW | Amarok 2.0 TDi 4-Motion | [CSHA] | 01/01/10 | |
SEAT | Exeo 2.0 TDi | [CA..] | 01/01/09 | VW | Transporter 2.0 TDi | [CAAC] | 01/09/09 | |
SEAT | Exeo 2.0 TDi | [CAGA] | 01/12/08 | VW | Multivan 2.0 TDi 4-Motion | [CAA.] | 01/01/09 | |
SEAT | Exeo 2.0 TDi ST | [CJCC] | 01/07/09 | VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 01/09/09 | |
SEAT | Exeo 2.0 TDi | [CAGC] | 01/08/09 | VW | Amarok 2.0 TDi | [CDBA] | 01/01/10 | |
SEAT | Exeo 2.0 TDi | [CAHA] | 01/02/09 | VW | Amarok 2.0 TDi 4-Motion | [CSHA] | 01/01/12 | |
SEAT | Exeo 2.0 TDi | [CG..] | 01/01/09 | VW | Caravelle 2.0 TDi | [CAAA] | 01/01/15 | |
SEAT | Exeo 2.0 TDi | [CGLB] | 01/02/09 | VW | Multivan 2.0 TDi | [CAAB] | 01/01/15 | |
SEAT | Exeo 2.0 TDi | [CJ..] | 01/01/09 | VW | Amarok 2.0 TDi | [CDBA] | 01/09/10 | |
SEAT | Exeo 2.0 TDi | [CJCA] | 01/12/08 | VW | Transporter 2.0 TDi | [CAAC] | 01/01/15 | |
SEAT | Exeo 2.0 TDi | [CJCC] | 01/08/09 | VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 01/01/15 | |
SKODA | Superb 2.0 TDi | [BMP] | 01/10/09 | VW | Amarok 2.0 TDi | [CDCA] | 01/01/10 | |
SKODA | Superb 2.0 TDi 4x4 | [CBBB] | 01/09/08 | VW | Eos 3.2 V6 | [BUB] | 01/01/06 | |
SKODA | Superb 2.0 TDi 4x4 | [CBBB] | 01/10/09 | VW | Amarok 2.0 TDi | [CNEA] | 01/01/10 | |
SKODA | Superb 2.0 TDi 4x4 | [CFFB] | 01.2010-12.2015 | AC | VW | Caravelle 2.0 TDi | [CAAB] | 01/01/15 |
SKODA | Superb 2.0 TDi | [CBBB] | 01/07/08 | AC | VW | Eos 3.2 V6 | [CBRA] | 01/01/06 |
SKODA | Superb 2.0 TDi | [CBBB] | 01/10/09 | VW | Amarok 2.0 TDi | [CNEA] | 01/01/12 | |
SKODA | Superb 1.6 TDi | [CAYB] | 01.2010-12.2015 | VW | Transporter 2.0 TDi 4-Motion | [CAAE] | 01/05/10 | |
SKODA | Superb 2.0 TDi | [CFFB] | 01.2010-12.2015 | AC | VW | Multivan 2.0 TDi 4-Motion | [CAAC] | 01/01/15 |
SKODA | Superb 2.0 TDi 4x4 | [CFGB] | 01/09/08 | VW | Multivan 2.0 TDi | [CAAC] | 01/01/15 | |
SKODA | Superb 2.0 TDi 4x4 | [CFGB] | 01/10/09 | VW | Transporter 2.0 BiTDi | [CFCA] | 01/09/09 | |
SKODA | Superb 2.0 TDi 4x4 | [CFGB] | 01.2010-12.2015 | AC | VW | Transporter 2.0 TDi | [CCH.] | 01/01/09 |
SKODA | Superb 2.0 TDi | [CFFB] | 01/03/10 | VW | Transporter 2.0 TDi 4-Motion | [CCH.] | 01/01/09 | |
SKODA | Superb 2.0 TDi 4x4 | [CLJA] | 01.2010-12.2015 | AC | VW | Amarok 2.0 TDi | [CNFA] | 01/01/10 |
SKODA | Superb 2.0 TDi | [CFGB] | 01/07/08 | VW | Eos 3.2 V6 | [CDVA] | 01/01/06 | |
SKODA | Superb 1.6 TDi | [CAYC] | 01/09/10 | VW | Transporter 2.0 BiTDi 4-Motion | [CFCA] | 01/09/09 | |
SKODA | Superb 1.9 TDi | [BLS] | 01/07/08 | AC | VW | Amarok 2.0 TDi | [CNFA] | 01/09/10 |
SKODA | Superb 2.0 TDi | [CFGB] | 01.2010-12.2015 | AC | VW | Eos 3.6 V6 | [CDVA] | 01.2009-12.2010 |
SKODA | Superb 1.9 TDi | [BLS] | 10.2009-11.2010 | VW | Transporter 2.0 TDi 4-Motion | [CCHA] | 01/09/09 | |
SKODA | Superb 2.0 TDi | [CLJA] | 01.2010-12.2015 | AC | VW | Amarok 2.0 TDi | [CNFB] | 01/01/12 |
SKODA | Superb 1.9 TDi | [BXE] | 01/07/08 | AC | VW | Multivan 2.0 TDi 4-Motion | [CCH.] | 01/01/09 |
SKODA | Superb 1.9 TDi | [BXE] | 01/07/08 | VW | Transporter 2.0 TDi | [CCHA] | 01/09/09 | |
SKODA | Superb 3.6 4x4 | [CDVA] | 01/11/08 | VW | Transporter 2.0 TDi 4-Motion | [CCHB] | 01/05/10 | |
SKODA | Superb 2.0 TDi | [CLJA] | 01/02/10 | VW | Crafter 2.0 TDi | [CKTB] | 01/01/11 | |
SKODA | Superb 3.6 V6 4x4 | [CDVA] | 01/01/08 | VW | Multivan 2.0 TDi | [CCH.] | 01/01/09 | |
SKODA | Superb 1.9 TDi | [BXE] | 10.2009-11.2010 | VW | Transporter 2.0 TDi 4-Motion | [CFCA] | 01/01/09 | |
SKODA | Superb 3.6 V6 4x4 | [CDVA] | 01/10/09 | VW | Amarok 2.0 TDi | [CSHA] | 01/01/10 | |
SKODA | Superb 2.0 TDi | [BKD] | 01/01/09 | VW | Crafter 2.0 TDi 4-Motion | [CKUB] | 01/01/11 | |
SKODA | Superb 2.0 TDi | [BKD] | 01/09/09 | VW | Transporter 2.0 TDi | [CAA.] | 01/01/09 | |
SKODA | Superb 2.0 TDi 16V 4x4 | [CFFB] | 01/11/10 | VW | Transporter 2.0 TDi | [CFCA] | 01/01/09 | |
SKODA | Superb 2.0 TDi 16V 4x4 | [CFGB] | 01/11/10 | VW | Amarok 2.0 TDi | [CSHA] | 01/01/12 | |
SKODA | Superb 2.0 TDi | [BMP] | 01/07/08 | AC | VW | Crafter 2.0 TDi | [CKTC] | 01/01/11 |
SKODA | Superb 2.0 TDi 4x4 | [CBBB] | 01/01/08 | AC | VW | Amarok 2.0 TDi 4-Motion | [CDBA] | 01/01/10 |
VW | Multivan 2.0 TDi 4-Motion | [CFCA] | 01/01/09 | |||||
VW | Transporter 2.0 TDi | [CAAA] | 01/09/09 | |||||
VW | Crafter 2.0 TDi 4-Motion | [CSNA] | 01/01/11 | |||||
VW | Amarok 2.0 TDi 4-Motion | [CDBA] | 01/09/10 | |||||
VW | Transporter 2.0 TDi | [CAAA] | 01/01/15 | |||||
VW | Multivan 2.0 TDi | [CFCA] | 01/01/09 | |||||
VW | Amarok 2.0 TDi 4-Motion | [CDCA] | 01/01/10 | |||||
VW | Crafter 2.0 TDi | [CKUB] | 01/01/11 | |||||
VW | Passat R36 3.6 4-Motion | [BWS] | 01/04/07 | |||||
VW | Amarok 2.0 TDi 4-Motion | [CNEA] | 01/01/10 | |||||
VW | Multivan 2.0 TDi | [CFCA] | 01/01/15 | |||||
VW | Amarok 2.0 TDi 4-Motion | [CNEA] | 01/01/12 |
