w113600

Alternator NEW for BOBCAT

= BOBCAT 6675292 / 6678205 / 6687205 / 6681857
= LUCAS LRA03022

= VALEO TA000A48402 / TA000A48401

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

113600 CARGO
12390N WAI / TRANSPO
12390R WAI / TRANSPO
141-30102 DIXIE
20193021OE REAL
2032120.1 SANDO
210590 ERA
230-20250 ROBERT'S
2578 CEVAM
28-5634 ELSTOCK
553024RI KUHNER
553024RIV KUHNER
6675292 BOBCAT
6678205 BOBCAT
6681857 BOBCAT
66905393 BOBCAT
835.523.090 PSH
89214129 POWERMAX
90-31-7021 WILSON
90-31-7021N WILSON
A-8838 DIXIE
AG0595 GHIBAUDI
ALT34002 WOODAUTO
ALT341200 SIOM
ALT8054 3EFFE
ALTS355 3EFFE
ALV3600 KRAUF
CAL32120GS CASCO
CGB-13041 AINDE
DA1302 DELCO
DRA0192 DELCO
LRA03022 LUCAS
LRA3022 LUCAS
TA000A48401 VALEO
TA000A48402 VALEO
TA000A63701 VALEO
UD18515A AS-PL
446857 LOGISTIK
A12VA1180 SIDAT
A12VA1180A2 SIDAT
A3497S AS-PL
ALT8709 ELECTROLOG
6687205 BOBCAT
6690593 BOBCAT
STX102109 STARDAX
835.523.090.460 PSH

Features

Information:

Rotation Cr

Amp 90

Voltage 14

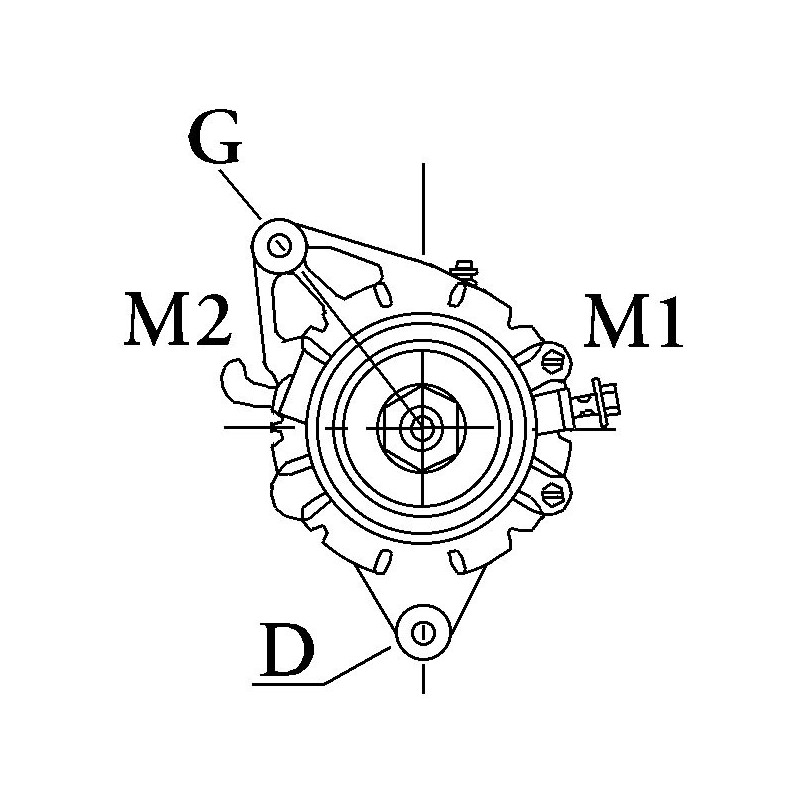

D = Bracket hole 8.50

G =  Belt. adj. bracket hole M8

B =  Width/holder arm 13.00

E =  Belt. adj. brackethole pos. 55

C =  Mount. bracket dist 57.70

H =  Pulley dia. 82.50

A =  Pulley dist. 37.50

Grooves/pulley 1

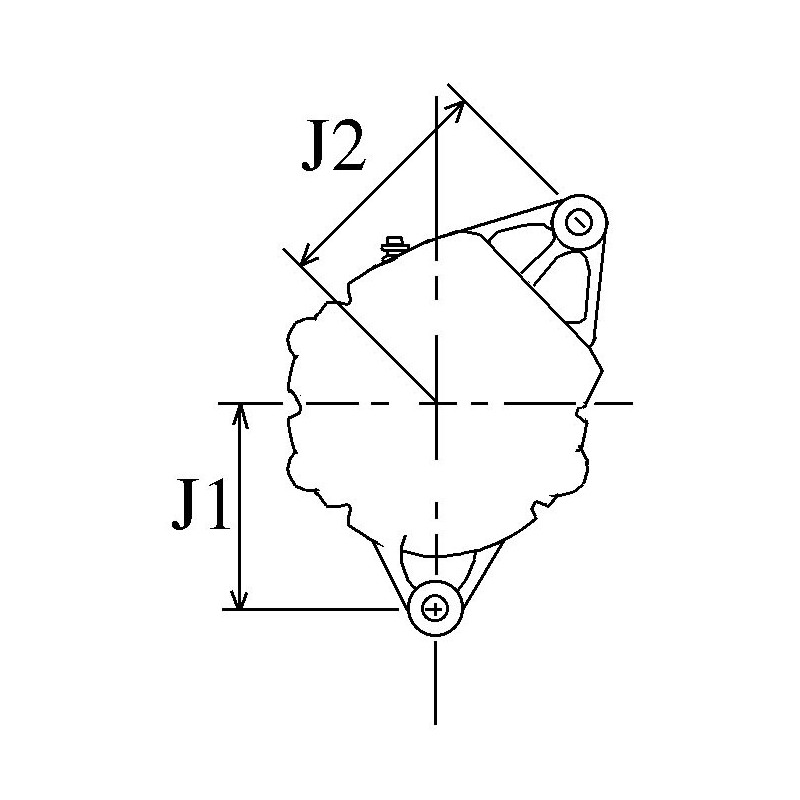

J = Radius 90.00

J = Radius 2 89.00

Position B + M8

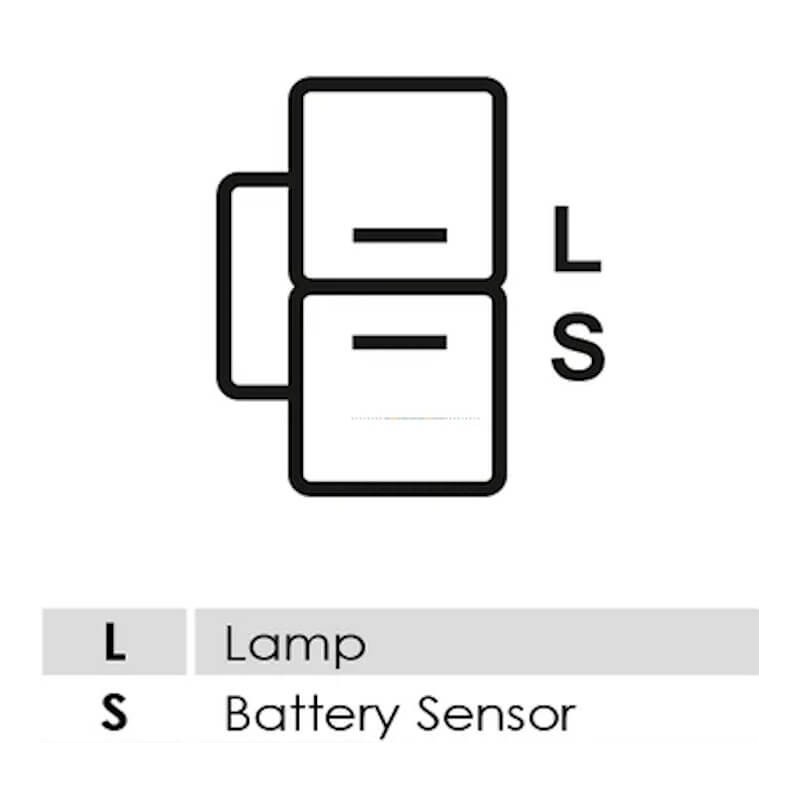

Plug no. 1 PL07

Fan If

Pulley Pulley

Tipo regulator Ir

R = Total length mm 173.00

generic brand

fits BOBCAT excavator 331 / x331

loafromr track loafromr T190 / T200 / T300 V2203 / V3300 DE 1999 to 2007

Mounting on

Brand Model Typ Year
BOBCAT 863 [BF4M1011F] 01.1999-12.2003
BOBCAT 863F [BF4M1011] 01.1999-12.1999
BOBCAT 863G [BF4M1011F] 01.1999-12.2006
BOBCAT 863G [BF4M1011] 01.1999-12.2006
BOBCAT 863HF [BF4M1011] 01.1999-12.1999
BOBCAT 863HG [BF4M1011] 01.1999-12.2006
BOBCAT 864F [BF4M1011F] 01.1999-12.1999
BOBCAT 864G [BF4M1011F] 01.1999-12.1999
BOBCAT 864G [BF4M1011F] 01.1999-12.2001
BOBCAT 864HG [BF4M1011F] 01.1999-12.1999
BOBCAT 864HG [BF4M1011F] 01.1999-12.2001
BOBCAT 883G [BF4M1011F] 01.2001-12.2002
BOBCAT A220 [BF4M1011F] 01.2001-12.2007
BOBCAT A300 [BF4M1011F] 01.2002-12.2007
BOBCAT E42   01.2010-12.2014
BOBCAT 331 [V2203-B] 01.2000-12.2006
BOBCAT E45 [V2403-M] 01.2010-12.2014
BOBCAT E50 [V2403-M] 01.2010-12.2014
BOBCAT E55 [V2403-M] 01.2011-12.2014
BOBCAT 331E [V2203-EB] 01.2000-12.2000
BOBCAT S100 [V1505-E3B] 01.2008-12.2013
BOBCAT S130 [V2203-M] 01.2003-12.2013
BOBCAT S130 [V2403] 01.2003-12.2013
BOBCAT S150 [V2203-M] 01.2003-12.2013
BOBCAT S150 [V2403] 01.2003-12.2013
BOBCAT S160 [V2003] 01.2003-12.2007
BOBCAT S160 [V2203] 01.2003-12.2007
BOBCAT S160 [V2607] 01.2008-12.2013
BOBCAT S175 [V2203-EB] 01.2001-12.2008
BOBCAT S175 [V2403] 01.2009-12.2013
BOBCAT S185 [V2003-M] 01.2004-12.2007
BOBCAT S185 [V2003-T] 01.2002-12.2003
BOBCAT S185 [V2203T-EB] 01.2002-12.2003
BOBCAT S185 [V2607] 01.2008-12.2013
BOBCAT S205 [V2403] 01.2004-12.2007
BOBCAT S205 [V2607] 01.2008-12.2013
BOBCAT S220 [V3300-DI] 01.2004-12.2007
BOBCAT S220 [V3800] 01.2008-12.2010
BOBCAT S250 [V2003-T] 01.2002-12.2003
BOBCAT S250 [V3300-DI] 01.2005-12.2007
BOBCAT S250 [V3800] 01.2008-12.2012
BOBCAT S300 [V3300-T] 01.2002-12.2007
BOBCAT 5600 [44-54.0HP] 01.2002-12.2009
BOBCAT S300 [V3800-T] 01.2008-12.2013
BOBCAT 5600 [V2403-M] 01.2004-12.2007
BOBCAT S330 [V3800-T] 01.2006-12.2012
BOBCAT 5600 [V3800] 01.2004-12.2007
BOBCAT S510 [V2203-DMI] 01.2013-12.2013
BOBCAT S510 [V2403-DMI] 01.2013-12.2013
BOBCAT S530 [V2403-DMI] 01.2013-12.2013
BOBCAT S530 [V2607-DIT] 01.2013-12.2013
BOBCAT S550 [V2607-DIT] 01.2013-12.2013
BOBCAT S570 [V2607-DIT] 01.2013-12.2013
BOBCAT S590 [V2607-DIT] 01.2013-12.2013
BOBCAT S630 [V3307] 01.2009-12.2013
BOBCAT S650 [V3307] 01.2009-12.2013
BOBCAT S750 3.4 [V3307] 01.2011-12.2013
BOBCAT S770   01.2011-12.2013
BOBCAT S850 [V3800] 01.2011-12.2013
BOBCAT T190 [V2003T-EB] 01.2001-12.2012
BOBCAT 751G [V1903-EB] 01.1999-12.2000
BOBCAT T200 [BF4M1011F] 01.1999-12.2002
BOBCAT 763 [V2203-EB] 01.1999-12.2003
BOBCAT T300 [V3300-DI] 01.2002-12.2007
BOBCAT 763 [V2203-E] 01.2002-12.2007
BOBCAT 763G [V2203-EB] 01.1999-12.2006
BOBCAT 773 [V2203-EB] 01.1999-12.2002
BOBCAT 773 Turbo [V2003T-EB] 01.1999-12.2002
BOBCAT 773 Turbo 500K [V2003T-EB] 01.2001-12.2001
BOBCAT 773 TurboG [V2203T-EB] 01.1999-12.2002
BOBCAT 773 TurboG 500K [V2203T-EB] 01.2001-12.2001
BOBCAT 773C [V2203-EB] 01.1994-12.1997
BOBCAT 773F [V2203-EB] 01.1997-12.1999
BOBCAT 773G [V2203-EB] 01.1999-12.2007
BOBCAT 773TG [V2203T-EB] 01.1999-12.2006
BOBCAT X331 [V2203-MDI-E2B] 01.2000-12.2004
