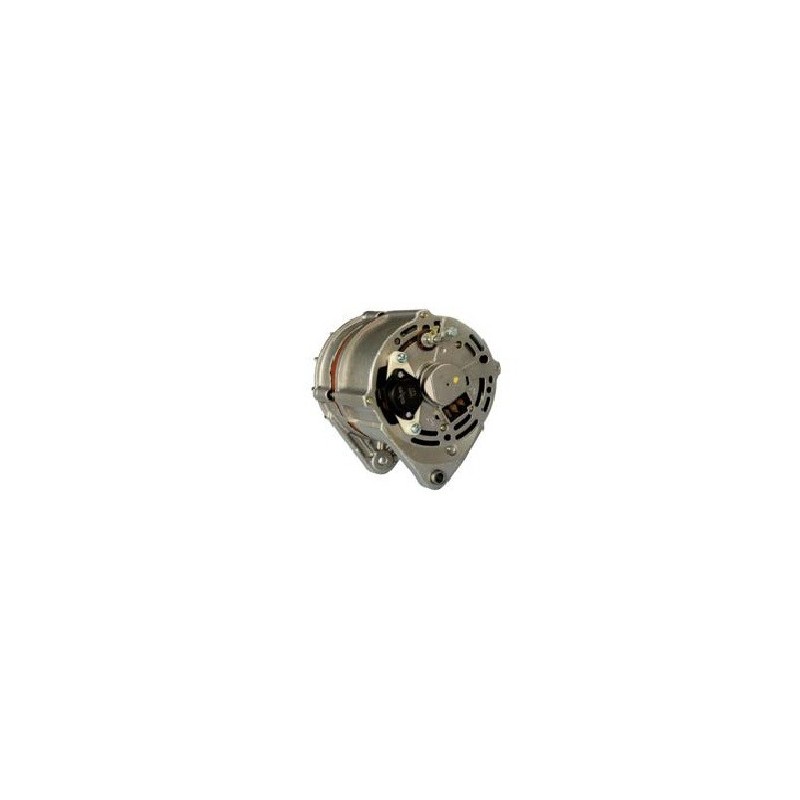

Alternator replacing BOSCH 0120489940 / 0120489894 / 0120489804

Information:

Voltage 14

Amp 35

D = Bracket hole 8.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 10.50

E = Belt. adj. brackethole pos. 49

C = Mount. bracket dist 79.00

H = Pulley dia. 70.50

A = Pulley dist. 36.15

Grooves/pulley 1

J = Radius 84.65

J = Radius 79.79

Position B + 9.40

Rotation Cr

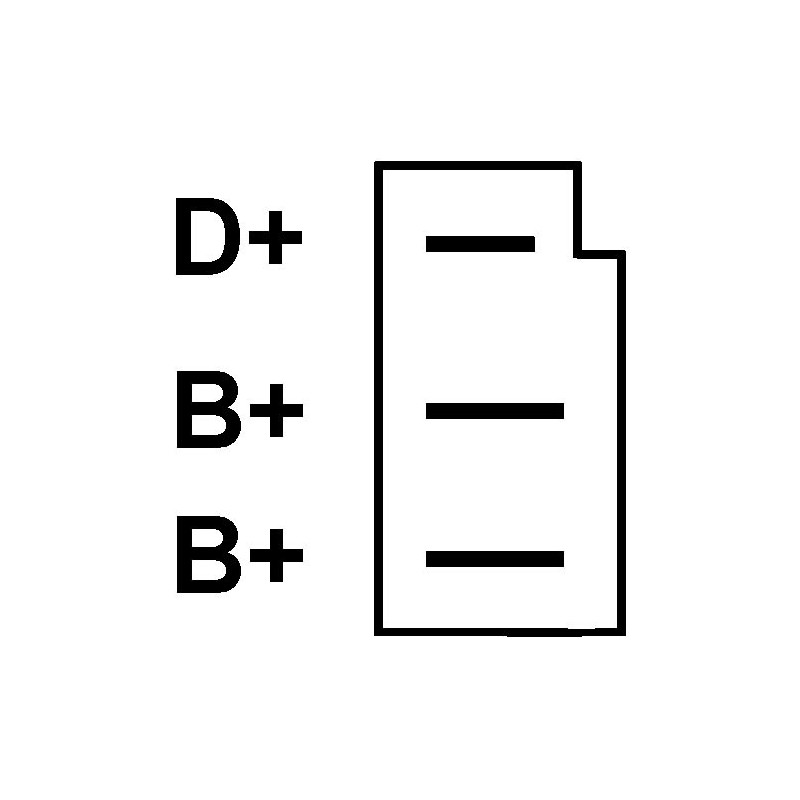

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R = Total length mm 160.00

generic brand

= BOSCH 0120400704 / 0120400705 / 0120400814 / 0120489087 / 0120489508
0120489509 / 0120489511 / 0120489522 / 0120489536 / 0120489561
0120489562 / 0120489616 / 0120489803 / 0120489804 / 0120489894
0120489940

= Case PBNA0103

= FEMSA ALP12N12

= FORD 1485513 / 1485514 / 1507007 / 1553627/ 6021771

71BB10300FA / 71BB10300FB / 72GB10300LA / 72GB10300LB
80BB10300DA / 80BB10300DB

= LUCAS 61920312

= MITSUBISHI AH2040C / AQ2140C / AQ2140C4

= MOTOROLA 9AR2602F / 9AR2611F / 9AR2612 / 9AR2612G / 9AR2613
9AR2613F / 9AR2627 / 9AR2627G / 9AR2698F / 9AR2703F / 9AR2895
9AR2895F

= VALEO  2541239 / 2541452 / 592798







                                              TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED
