Pay in 4 installments free of charge for purchases from €30 to €2,000

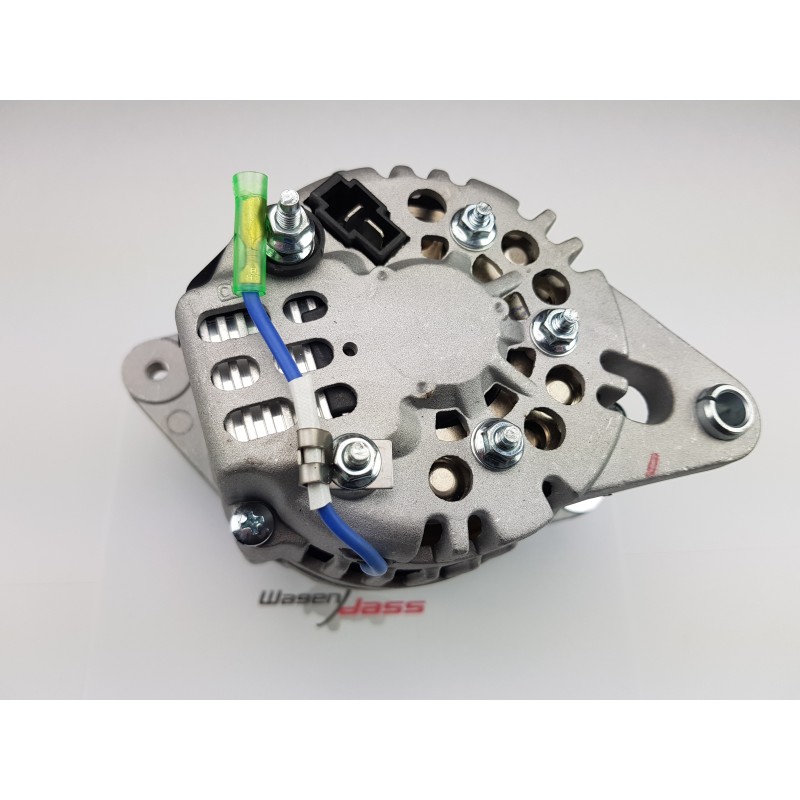

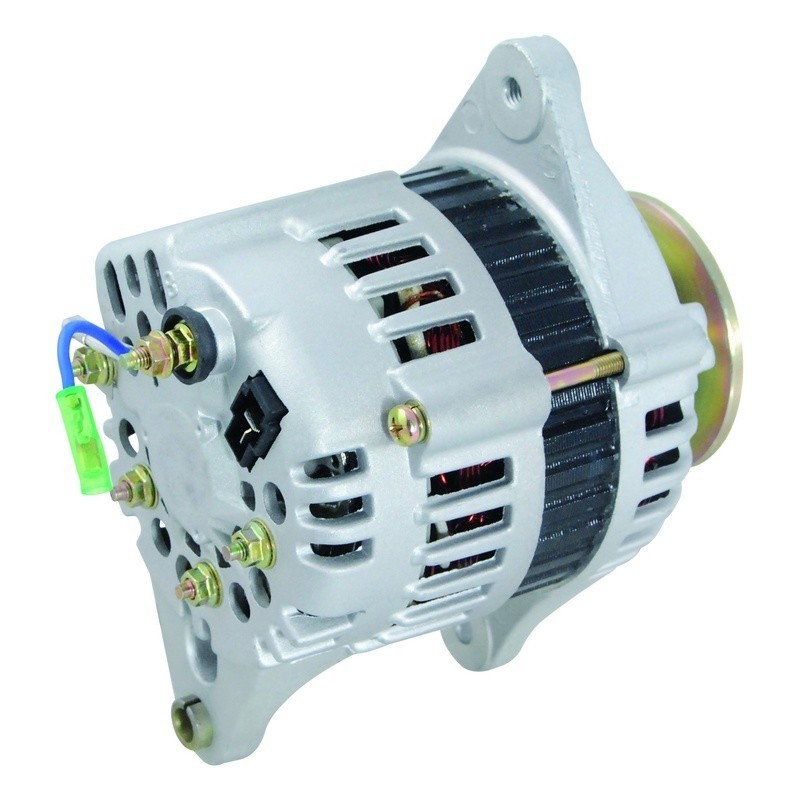

Alternator replacing HITACHI LR140-727 / LR140-721E / LR140- 721D / LR140-721C
Alternator NEW Generic brand for JOHN DEERE, KUBOTA, YANMAR
=JOHN DEERE am878581 / am880733
= KUBOTA 1752564011 / 17525-64011 / 19836-77200
= YANMAR 119624-77201 / 119836-77200 / 119836772002 / 119836-77201 / 119836-77202 / 119836-77203 / 129612-77230 / 129930-77210 / 129930-77212
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:

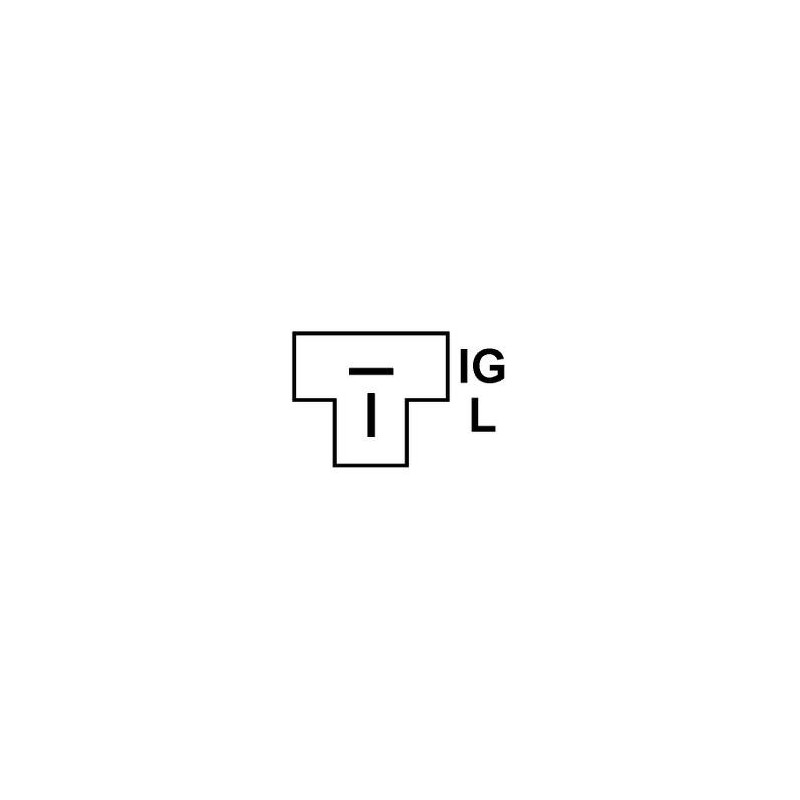

Voltage 14 - Amp 40 - Plug type W
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.40 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 12.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 67.20 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 41.50 |
| i | Grooves/pulley | 1 |
| j | Radius | 78.00 |
| j | Radius 2 | 78.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL10 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 142.00 |
Replacing | |
|---|---|
| 113308 | CARGO |
| 119624-77201 | YANMAR |
| 119836-77200 | YANMAR |
| 119836772002 | YANMAR |
| 119836-77201 | YANMAR |
| 119836-77202 | YANMAR |
| 119836-77203 | YANMAR |
| 129612-77230 | YANMAR |
| 129930-77210 | YANMAR |
| 129930-77212 | YANMAR |
| 1752564011 | KUBOTA |
| 17525-64011 | KUBOTA |
| 19836-77200 | KUBOTA |
| am878581 | JOHN DEERE |
| am880733 | JOHN DEERE |
| lr140-714 | HITACHI |
| lr140-714b | HITACHI |
| lr140-716 | HITACHI |
| lr140-719 | HITACHI |
| lr140-721 | HITACHI |
| lr140-721b | HITACHI |
| lr140-721c | HITACHI |
| lr140-721d | HITACHI |
| lr140-721e | HITACHI |
| lr140-723b | HITACHI |
| lr140-727 | HITACHI |
For
3TNE84 AHI0061 (tous)
3TNE88 AHI0061 (tous)
4TNE84 AHI0061 (89-+)
4TNE88 AHI0061 (89-+)
