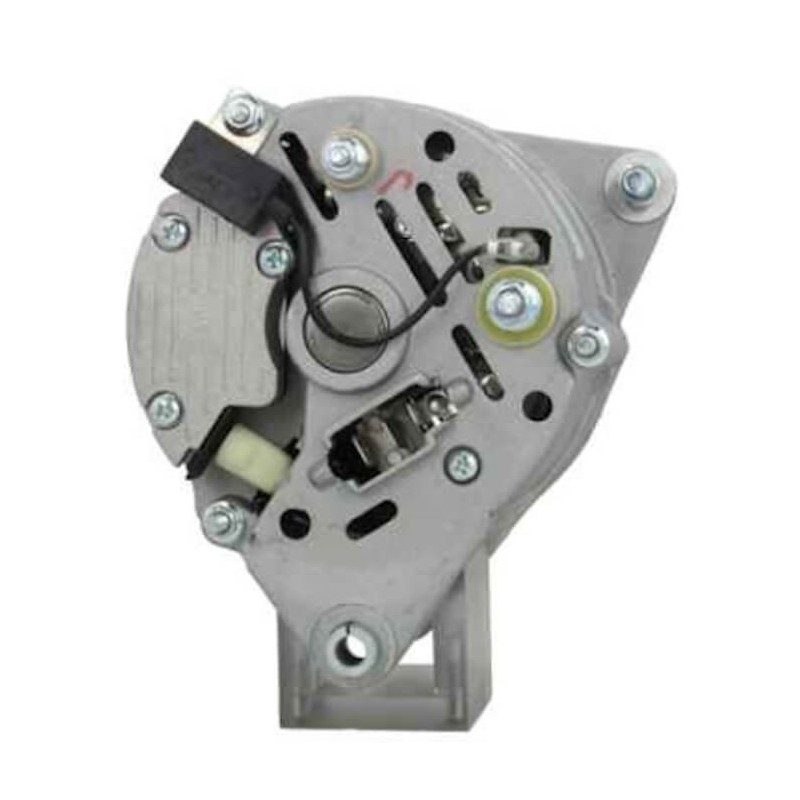

Alternator replacing ISKRA 11.201.470 / aak1133 / AAK1333

Information:

Voltage 14

Amp 70

D = Bracket hole 8.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 11.00

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 82.00

H = Pulley dia. 65.00

A = Pulley dist. 34.00

Grooves/pulley 1

J = Radius 86.30

J = Radius 87.30

Position B + M6

Rotation Cr

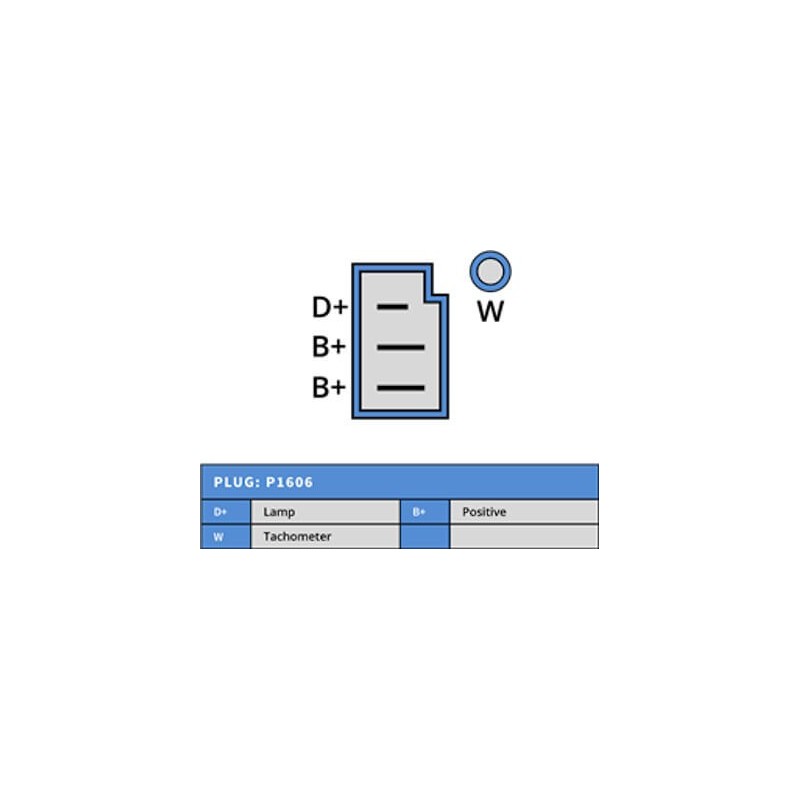

Plug no. 1 PL22

Fan Ef

Pulley Pulley

Remarks Distance from Pulley est ok from 34.00 to 43.00 mm.

R = Total length mm 167.00

generic brand

= Butec 858787

= Elmot ALT2N-14

= FEMSA ALT12N-2 / ALT12N-13 / ALF12-18

= LUCAS NAB300 / 66021113 / 60921030 / 60921029 / 60210167 / 60210165 / 60210164

60210163 / 60210158 / 60021066 / 23686 / 23686A / 23686B / 23749 / 23764
23764A / 23785 / 23785A / 23832 / 23832A / 23832B / 23882 / 23882A
23882B / 23968 / 23968A / 23995 / 23995A / 24031 / 24031A / 24031B
24045 / 24045A / 24063 / 24063A / 24063D / 24071 / 24071A / 24235
242358 / 24235A / 24235B / 24235D / 54021663 / 54021772
54021831 / 54021850 / 54021853 / 54021920 / 54021986 / 54022014
54022054 / 54022097 / 54022238 / 54022261 / 54022286 / 54022391
60021011 / 60021013 / 60021014 / 60021040
60021062

= MITSUBISHI AH2040C4

= MOTOROLA 9AR5060 / 9AR2960F / 9AR2841 / 9AR2705G / 9AR2705 / 9AR2699G / 9AR2683G

9AR2683 / 9AR2654G / 9AR2650D

= PRESTOLITE PBNA0392 / PBNA0230 / PBNA0228 / PBNA0206 / PBNA0185 / PBNA0143 / PBNA0131

PBNA0121 / 66021636 / 66021461

= VALEO 9AR2699

= NISSAN 23100-q9000

= PERKINS 1871a154 / 1871a163 / 2871a124 / 2871a128 / 2871a138 / 2871a411

                                                TWO YEARS WARRANTY

                                    NO CORE EXCHANGE NEEDED
