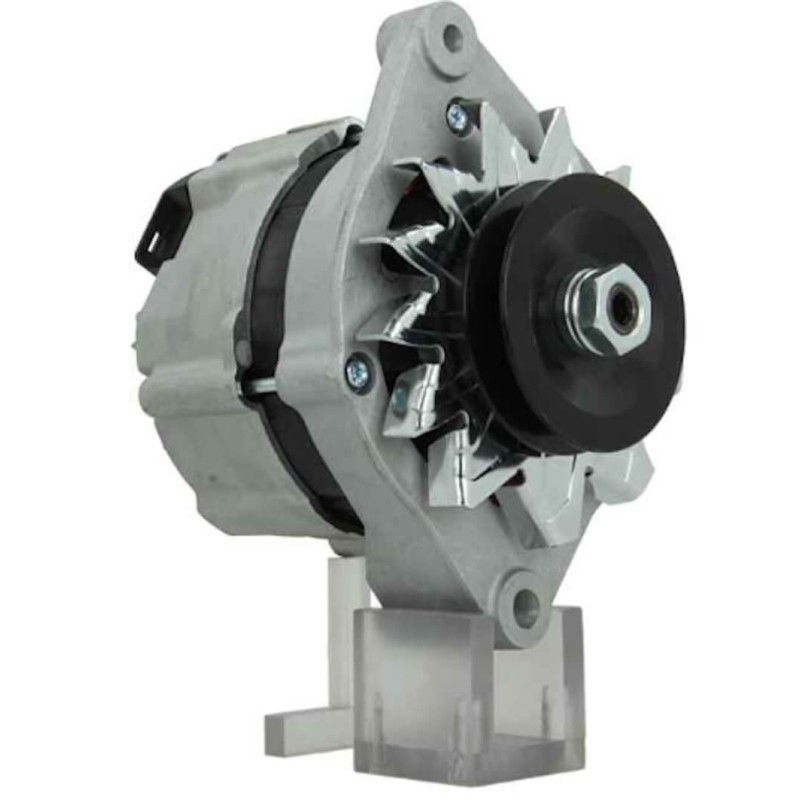

Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856
Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856
Alternator replacing MITSUBISHI A002TC1391ZC / A002TC1391ZE
Alternator for Volvo engine replaces MAHLE IA0856 / AAK3339 / 11201945 for VOLVO BM / Volvo trucks
Alternator for Volvo engine replaces MAHLE IA0856 / AAK3339 / 11201945 for VOLVO BM / Volvo trucks
Previous
Next
Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856
Alternator replacing MAHLE IA0856 / AAK3339 / 11201945 / AAK 3305 / 11201856
Alternator replacing MITSUBISHI A002TC1391ZC / A002TC1391ZE
Alternator for Volvo engine replaces MAHLE IA0856 / AAK3339 / 11201945 for VOLVO BM / Volvo trucks
Alternator for Volvo engine replaces MAHLE IA0856 / AAK3339 / 11201945 for VOLVO BM / Volvo trucks

Alternator for Volvo engine replaces MAHLE IA0856 / AAK3339 / 11201945 for VOLVO BM / Volvo trucks

W114465

11201856

Mahle

11201945

Mahle

114465

HC-Cargo

72735229

Mahle

815027070

PSH

AAK3305

Mahle

AAK3339

Mahle

F032114465

HC-Cargo

IA0856

Mahle

LEA1048

Lucas

LEA1136

Lucas

MG230

Mahle

RNL11201856

RNL

Alternator for VOLVO F10 F 10/260 / F6 F 610 / F6 F 613, F 614 / F6 F 615 S / F7 F 7 / VOLVO BM

Only the part number of your old alternator allows you to find the correct match.

If in doubt, please contact us.

Read more
€109.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

11.201.945 ISKRA / LETRIKA
114465 CARGO
2014 CEVAM
AAK3339 ISKRA / LETRIKA
IA0856 ISKRA / LETRIKA
MG 230 MAHLE
MG230 MAHLE
UD12310A AS-PL
ALT79228 ELECTROLOG
F032114465 CARGO

Features

All of our alternators and starters are brand new and come with a two-year warranty.

About Us


WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.

Our Logistics


Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.

Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product

Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers

Information:

Electrical Information
Voltage 14
Amp 70

Physical Information
D Bracket hole 11.50
G Belt. adj. bracket hole 8.50
B Width/holder arm 51.00
E Belt. adj. brackethole pos. 57
H Pulley dia. 82.00
A Pulley dist. 76.00
i Grooves/pulley 1
j Radius 86.00
j Radius 2 85.00
k Position B + M8
n Rotation Cr

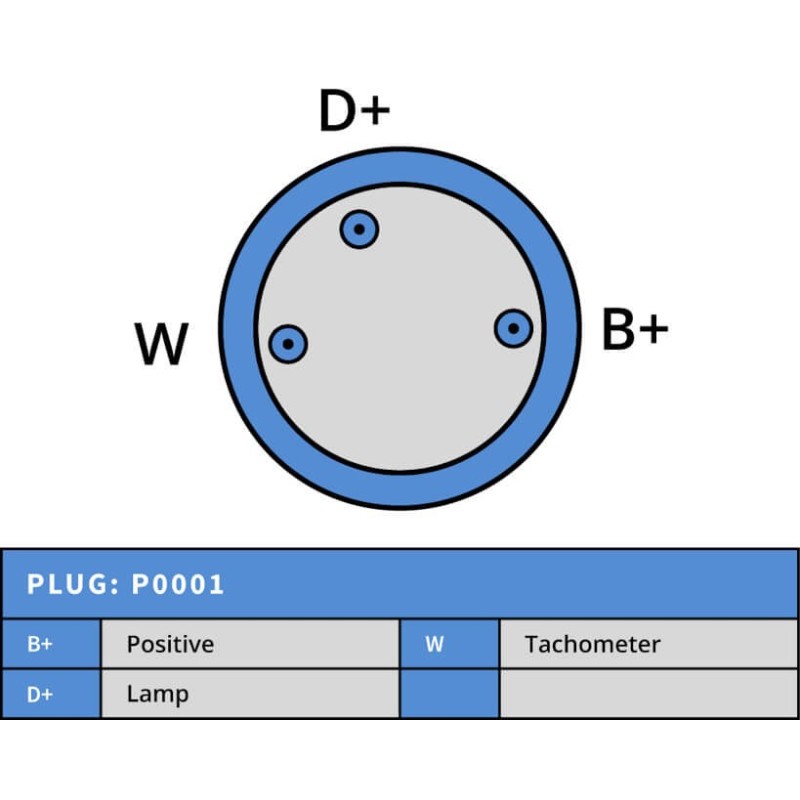

o Plug no. 1 PL_NA
Q Type prise W Plug

Replacing:

11201856
11201945
60136
72735229
815027070
815027070090
815027070310
AAK3305
AAK3339
IA0856
LEA1136
MG230
MG230+

Mounted on :

DEUTZ AG (KHD) F8L413 01.76-
VOLVO (BM) 2200,2204 (Tractors) -
VOLVO (BM) 2250,2254 (Tractors) -
VOLVO (BM) 430,500 (Tractors) -

generic brand

Mounting on

Brand Model Tye Year
DEUTZ-FAHR Engine F8L413 01.1976 - 01.0001
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100G 01.1983 - 06.1985
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 01.1983 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD100GA 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F10 F 10/260 TD101G 01.1983 - 06.1985
VOLVO F10 F 10/260 TD101G 02.1982 - 06.1985
VOLVO F4 F 406 D39B 09.1975 - 02.1986
VOLVO F4 F 408 TD40A 04.1978 - 02.1986
VOLVO F6 F 610 TD60C 02.1980 - 10.1986
VOLVO F6 F 611 TD60C 02.1980 - 02.1986
VOLVO F6 F 613,F 614 TD60A 09.1975 - 02.1986
VOLVO F6 F 613,F 614 TD60B 09.1975 - 02.1986
VOLVO F6 F 615 S TD60B 12.1978 - 10.1981
VOLVO F6 F 617 S TD60B 12.1978 - 02.1986
VOLVO F7 F 7 TD70F 08.1978 - 12.1985
VOLVO F7 F 7 TD70F 08.1978 - 12.1985
VOLVO F7 F 7 TD70F 08.1978 - 12.1985
VOLVO F7 F 7 TD70F 08.1978 - 12.1985
VOLVO F7 F 7 TD70FS 08.1978 - 12.1985
VOLVO F7 F 7 TD70FS 08.1978 - 12.1985
VOLVO F7 F 7 TD70FS 08.1978 - 12.1985
VOLVO F7 F 7 TD70FS 08.1978 - 12.1985
VOLVO F7 F 7 TD70G 08.1978 - 12.1985
VOLVO F7 F 7 TD70G 08.1978 - 12.1985
VOLVO F7 F 7 TD70G 08.1978 - 12.1985
VOLVO F7 F 7 TD70G 08.1978 - 12.1985
VOLVO F80 F 88/260 TD100A 08.1965 - 06.1977
VOLVO F80 F 89/330 TD120A 10.1970 - 06.1977
VOLVO F80 F 89/330 TD120A 10.1970 - 06.1977
VOLVO BM 500   -
VOLVO BM 2200   -
VOLVO BM 2250   -
VOLVO BM 430   -
VOLVO BM 2204   -
VOLVO BM 2254   -
