Alternator MAHLE 11203826 / 11204175 / AAN5334 / IA1301 / MG35
Alternator NEW brand MAHLE 11.203.826 / 11.204.175 / 11.204.234 / 11.203.883 / 11.203.826 / 11.203.735 / 11.203.623 / AAN5334 / AAN8146 / AAN5334 / AAN5777 / AAN5746 / AAN5709 / AAN5577 / IA1301 / MG35NEW HOLLAND 8756505 / FIAT 84141456 / Case 87667991
NO CORE EXCHANGE NEEDED
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 200 | |

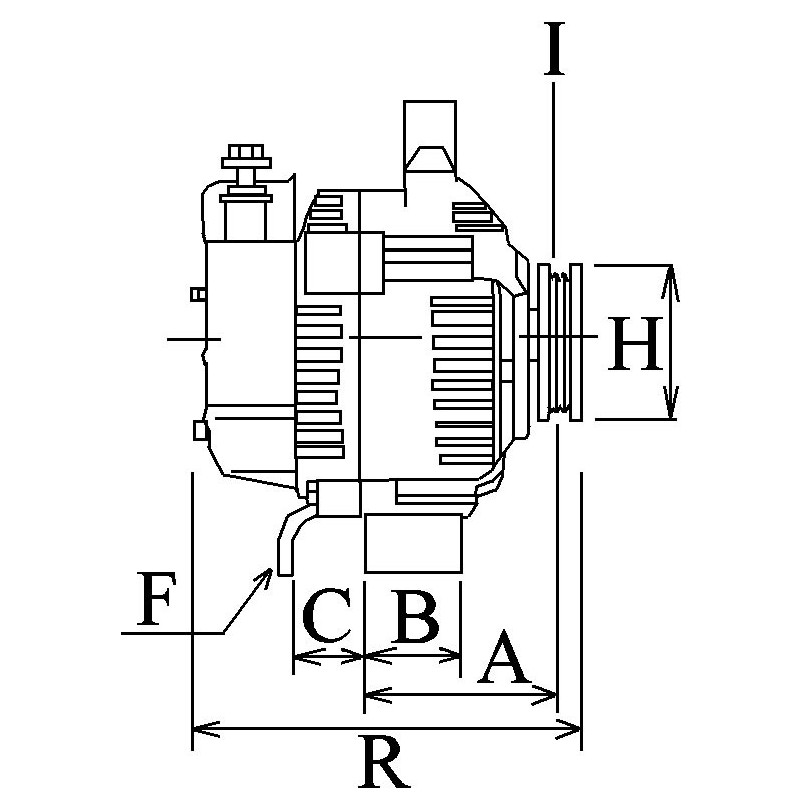

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | 10.30 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 50 |
| H | Pulley dia. | 61.00 |
| A | Pulley dist. | 84.00 |
| i | Grooves/pulley | 10 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| R | Total length mm | 205.00 |
Replacing | |
|---|---|
| 11.203.826 | ISKRA |
| 11.204.175 | ISKRA |
| 84141456 | FIAT |
| 87565015 | NEW HOLLAND |
| AAN5334 | ISKRA |
| 11203826 |
| 11204175500 |
| 585501200 |
| 585501200310 |
| 585501200311 |
| 87667991 |
| AAN5746 |
| IA1301 |
| MG35 |
Mounted on :
| CASE | PUMA | 170 | NEF Tier 4; 167HP | 6,7 | 01.11- |
| CASE | PUMA | 170 CVX | NEF Tier 4; 167HP | 6,7 | 12.10- |
| CASE | PUMA | 180 CVX | NEF Tier 3; 182HP | 6,7 | 12.10- |
| CASE | PUMA | 185 | NEF Tier 4; 185HP | 6,7 | 01.11- |
| CASE | PUMA | 185 CVX | NEF Tier 4; 185HP | 6,7 | 12.10- |
| CASE | PUMA | 200 | NEF Tier 4; 200HP | 6,7 | 12.10- |
| CASE | PUMA | 200 CVX | NEF Tier 4; 200HP | 6,7 | 12.10- |
| CASE | PUMA | 215 | NEF Tier 4; 215HP | 6,7 | 12.10- |
| CASE | PUMA | 215 CVX | NEF Tier 4; 215HP | 6,7 | 12.10- |
| CASE | PUMA | 225 CVX | NEF Tier 3; 224HP | 6,7 | 01.09- |
| CASE | PUMA | 230 CVX | NEF Tier 4; 228HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.260 | NEF Tier 4; 215HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.260 AUTO COMMAND | FPT NEF; 6-cyl, Tier 4; 260HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.270 | NEF Tier 4; 228HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.270 AUTO COMMAND | FPT NEF; 6-cyl, Tier 4; 269HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.290 | NEF Tier 4; 290HP | 6,7 | 12.10- |
| NEW HOLLAND | T7 | T7.315 | NEF Tier 4; 313HP | 6,7 | 12.15- |
| NEW HOLLAND | T7030 | Auto Command | NEF Tier 3; 167HP | 6,7 | 01.07- |
| NEW HOLLAND | T7040 | Auto Command | NEF Tier 3; 182HP | 6,7 | 01.07- |
| NEW HOLLAND | T7050 | Auto Command | NEF Tier 3; 197HP | 6,7 | 06.09- |
| NEW HOLLAND | T7060 | NEF 6-cyl; 210FP | 6,7 | 01.07- | |
| NEW HOLLAND | T7070 | Auto Command | NEF Tier 3; 225HP | 6,7 | 06.09- |
| NEW HOLLAND | TD5 | TD5.115 | FPT F5C; 4-cyl; Tier 4; 114HP | 3,4 | - |
| NEW HOLLAND | TD5 | TD5.95 | FPT F5C; 4-cyl; Tier 4; 99HP | 3,4 | - |
| NEW HOLLAND (SPERRY NEW HOLL.) | TRACTORS | - |
