w12182n

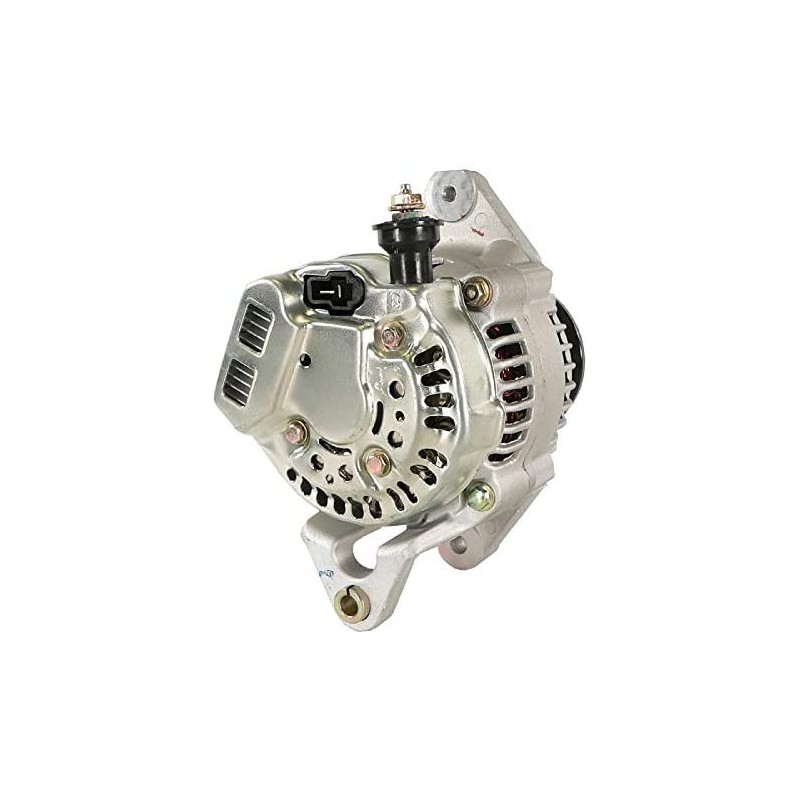

Alternator for KOMATSU / forklift

DENSO100211-4000, 100211-4001, 100211-4002, 100211-4003, 100211-4004,  TOYOTA 27060-78301, 27060-78301-71

  0986AN0570 / 0986UN0429 / DRA3449 / LRA01298

                             NO CORE EXCHANGE NEEDED

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 40

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 20.00

C = Mount. bracket dist 67.00

H = Pulley dia. 75.40

A = Pulley dist. 48.55

Grooves/pulley 1

J = Radius 77.35

J = Radius 76.15

Position B + M6

Rotation Cr

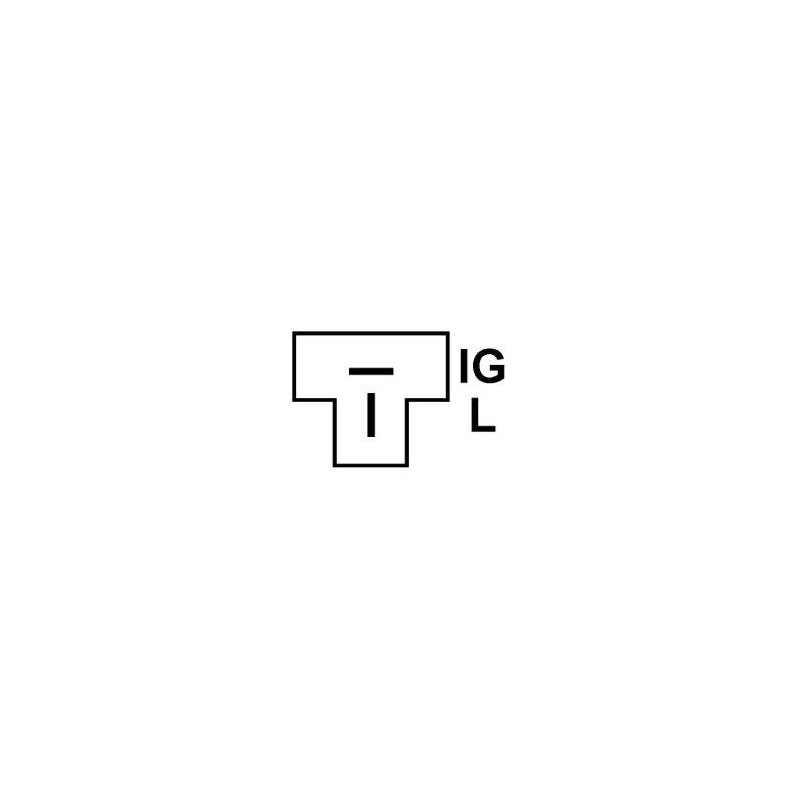

Plug no. 1 PL10

Fan If

Pulley Pulley

R = Total length mm 150.50

= DENSO 100211-4200 / 100211-4004 / 100211-4003 / 100211-4002 / 100211-4001 / 100211-4000

= DELCO REMY DRA3449

= TOYOTA 27060-78300-71 / 27060-78301-71

= 1194601ND / 195577040 / 281573 / 290205

ALT6049sa / KTR391154080

0986AN0570 BOSCH ruil
0986UN0429 BOSCH ruil
1002114000 DENSO
1002114001 DENSO
1002114002 DENSO
1002114003 DENSO
1002114004 DENSO
110564 Cargo
12060571 EuroTec
195577040 PSH
2706078301 TOYOTA
270607830171 TOYOTA
281573 Elstock
290205 PIC
5422SP Spidan
75917 EAI
90295173 WILSON
AL5044N BOSCH (USA)
ALT5095 UNIPOINT
ALT6049NPsa Electrolog
ALT6049sa Electrolog
ATA506 ATK
BXD1333N BOSCH (USA)
DRA3449 DELCO REMY
F042302070 BOSCH
JA792IR HC
L82050 ATL
LRA01298 LUCAS

fits:

  • TOYOTA 5FD-10 2J 1986 - 1989 TOYOTA 5FD-14 2J 1986 - 1989 TOYOTA 5FD-15 2J 1986 - 1989 TOYOTA 5FD-18 2J 1986 - 1989 TOYOTA 5FD-20 1Z 1986 - 1988 TOYOTA 5FD-20 2J 1986 - 1989 TOYOTA 5FD-23 1Z 1986 - 1988 TOYOTA 5FD-23 2J 1986 - 1989 TOYOTA 5FD-25 1Z 1986 - 1988

  • TOYOTA 5FD-25 2J 1986 - 1989 TOYOTA 5FD-28 1Z 1986 - 1988 TOYOTA 5FD-30 1Z 1986 - 1988 TOYOTA 5FG-33 3F 1988 TOYOTA 5FG-35 3F 1988 TOYOTA 5FG-38 3F 1988 TOYOTA 5FG-40 3F 1988 TOYOTA 5FG-45 3F 1988

            NO CORE EXCHANGE NEEDED

                       TWO YEARS WARRANTY
