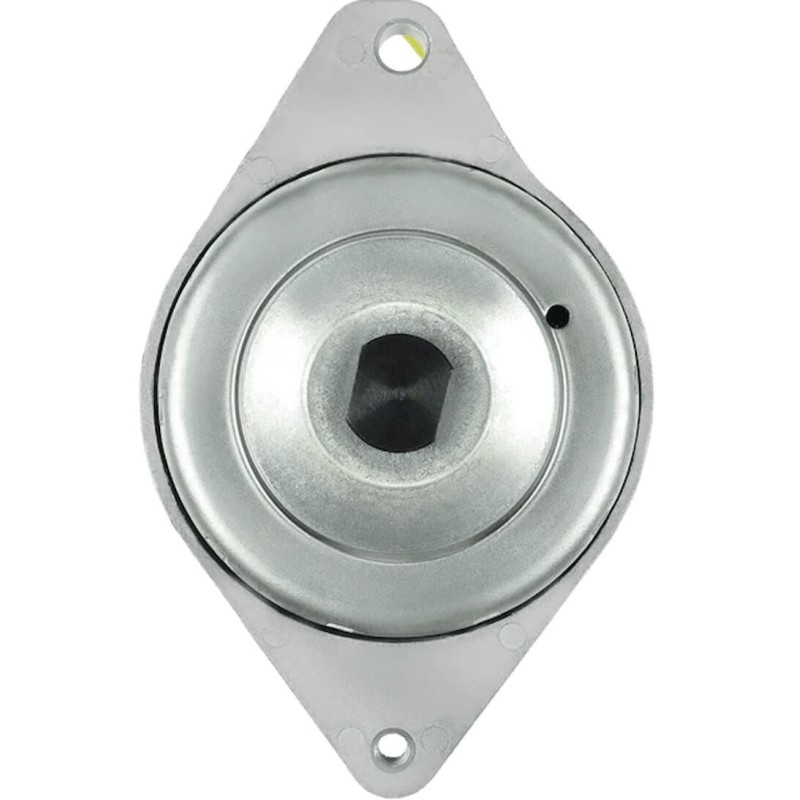

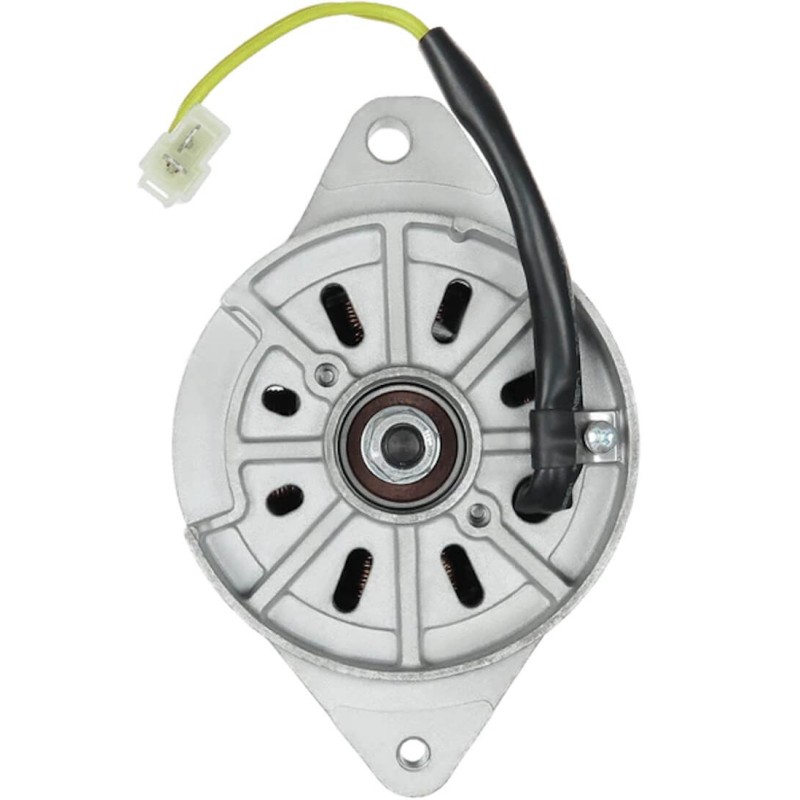

Alternator NEW for YANMAR / John deere / KOMATSU
12 volts 20 Amp
for engine 3TNA72L - 3TNE82A - 3TNE88
NO CORE EXCHANGE NEEDED
Replacing | ||
|---|---|---|
| 129150-77202 | YANMAR | |
| AM877557 | JOHN DEERE | |
| AM879144 | JOHN DEERE | |
| CH15587 | JOHN DEERE | |
| GP9165 | KOKUSAN-DENKI | |
| MIA10338 | JOHN DEERE | |
| SE501822 | JOHN DEERE | |
| SE501843 | JOHN DEERE | |

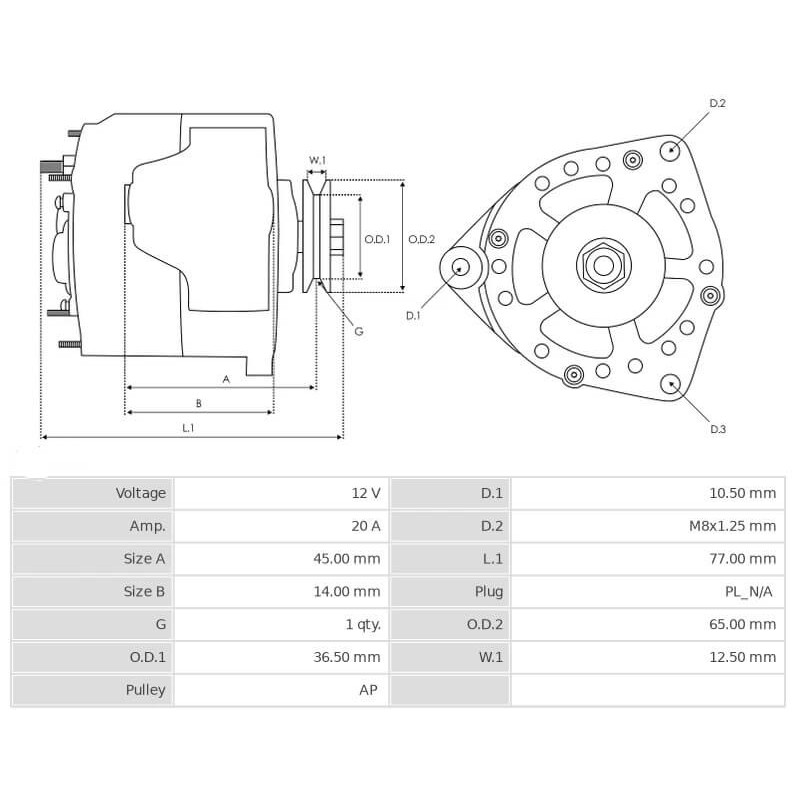

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 14.20 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 62.00 |
| A | Pulley dist. | 42.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 77.50 |
| j | Radius 2 | 78.00 |
| R | Total length mm | 77.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 20 | |
Generic brand
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
