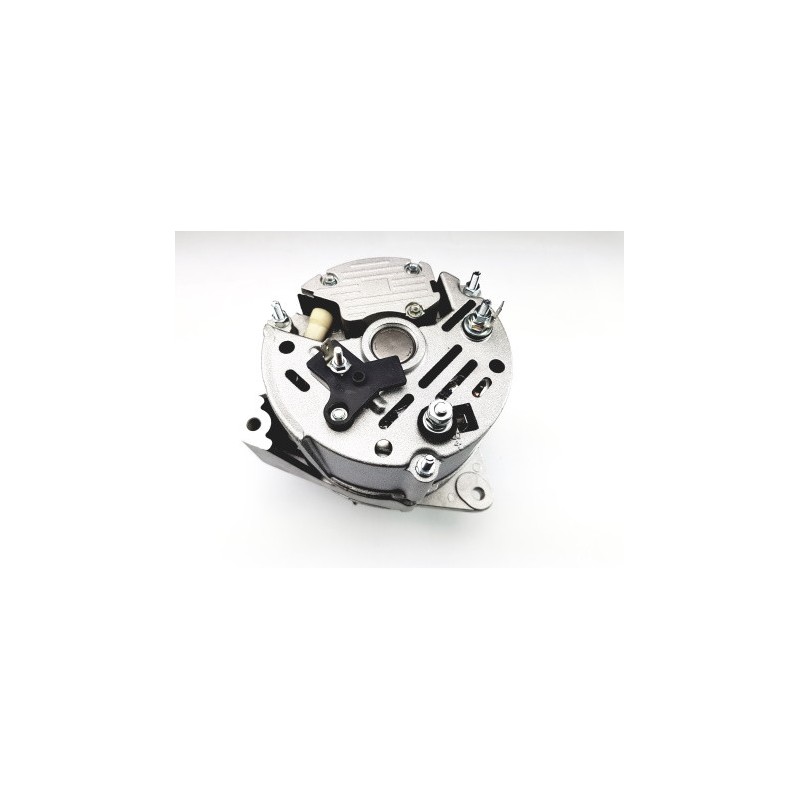

Alternator replacing BOSCH 0120489309 / 0120489296 / 0120489286 / 0120489183

Information:

Voltage 14

Amp 55

Plug type W

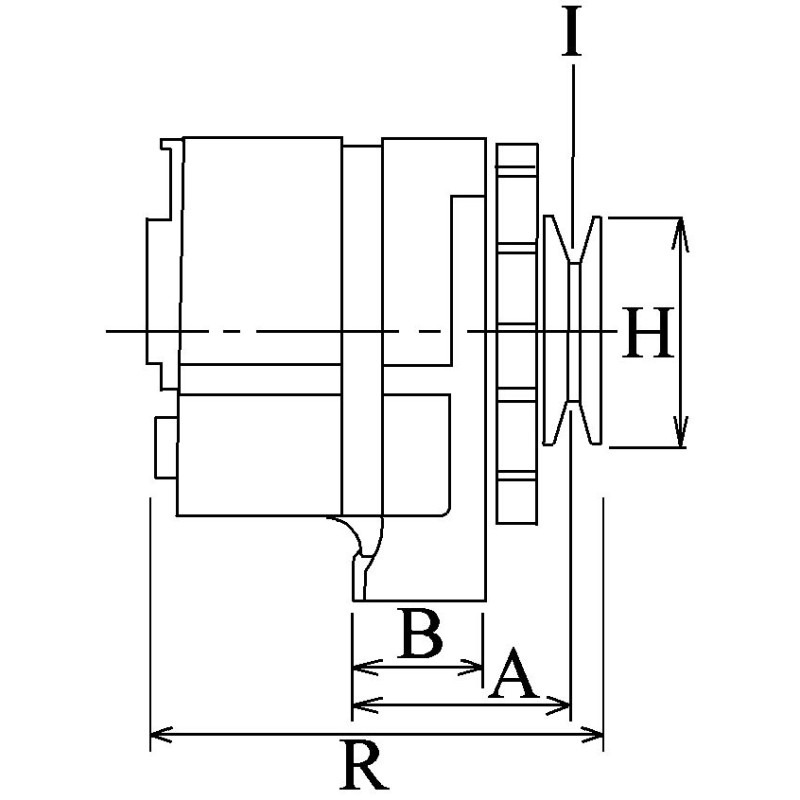

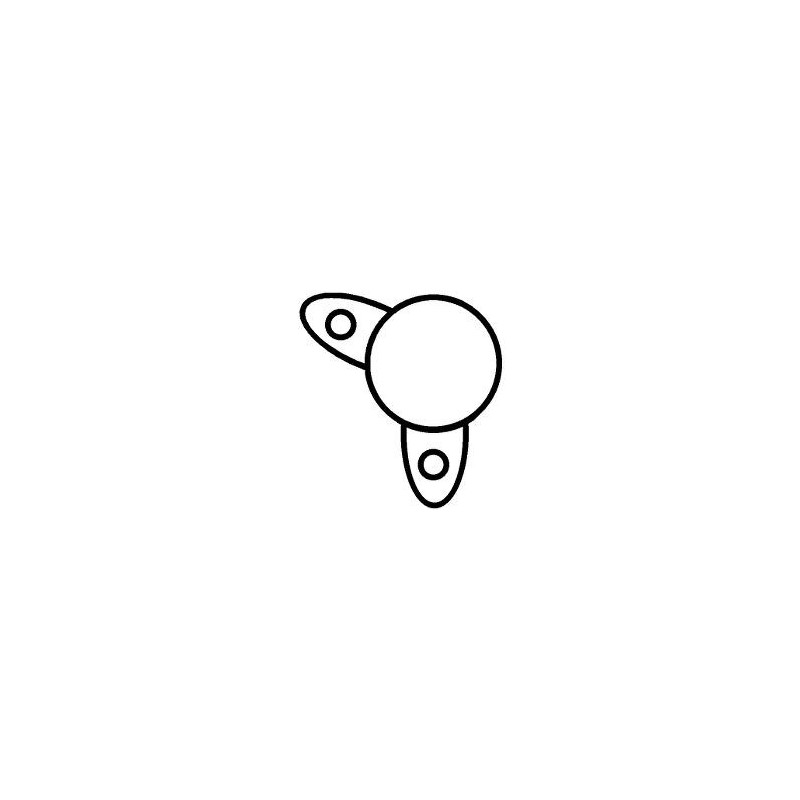

D =  Bracket hole 8.20

G = Belt. adj. bracket hole 8.20

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 66.50

A = Pulley dist. 88.00

Grooves/pulley 2

J = Radius 83.00

J = Radius 80.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley double

R = Total length mm 170.00

= KHD 01178521 / 1175731 / 1178521 / 1178606 / 1182151

= ISKRA 11.201.226 / 11.201.478 / 11.201.511 / 11.201.512 / 11.203.405 / 11.204.050 /aak1189 / AAK3579 / AAK4349

AAK1336

= MAGNETON 8515220

= BOSCH 0120489309 /  0120489296 /0120489286 / 0120489183 / 0120489070 / 0120489069

0120488258 / 0120488257 / 0120488209 / 0120488185 / 0120488114

= MAGNETI MARELLI 943356826

= VOLVO 1308719 / 1323488 / 1323912 / 1324957 / 5002048 / 5002271
5003001 / 5003802

                           NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
