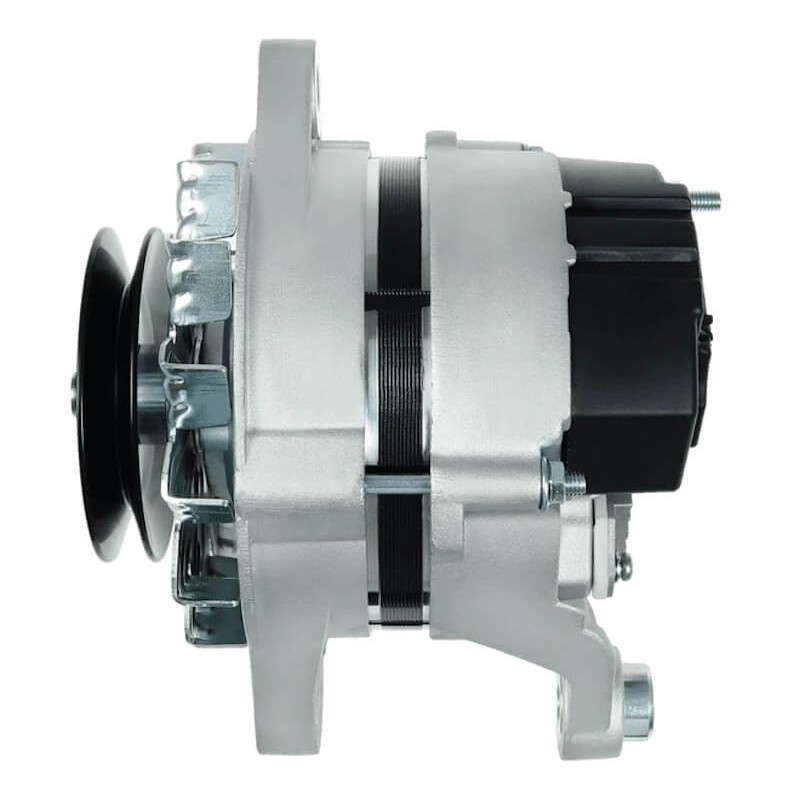

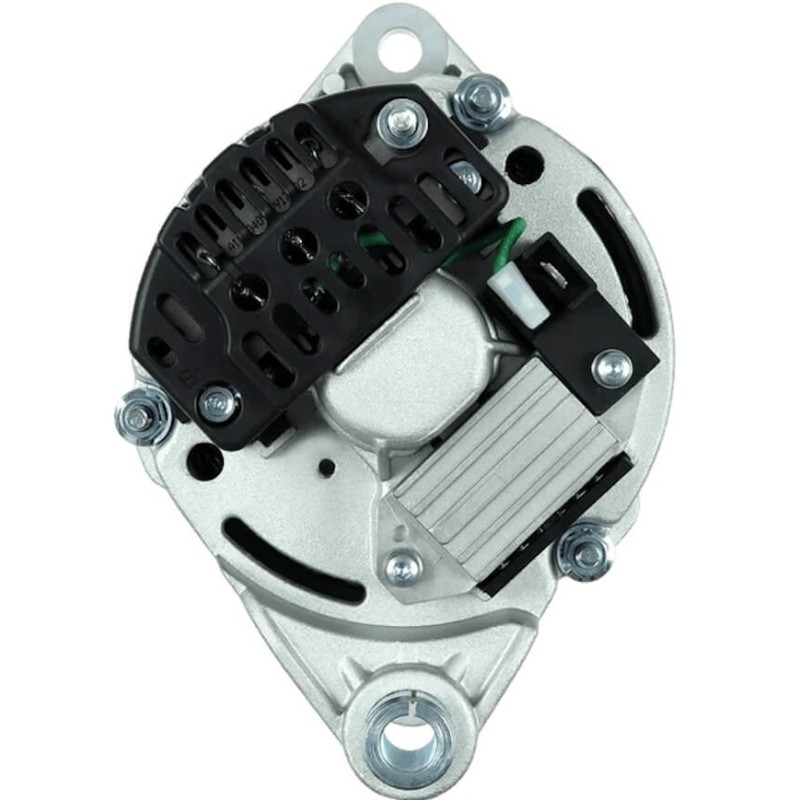

Alternator replacing 0120489336 / 0120488284 / 0986035760

w111418

New product

1 Item

4799367Iveco
4802574Fiat
4808500Fiat
4808502Fiat
4808507Fiat
4808509Iveco
6005717935Claas
63303290Magneti Marelli
63307227Magneti Marelli
63320024Magneti Marelli
63320024010Magneti Marelli
63321039Magneti Marelli
63321039010Magneti Marelli
63321042Magneti Marelli

89,90 € Inc VAT

Add to wishlist

More info

Information:

Voltage 14

Amp 60

D = Bracket hole M12

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 17.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 66.00

H = Pulley dia. 90.60

A = Pulley dist. 49.00

Grooves/pulley 1

J = Radius 82.50

J = Radius 79.50

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 165.50

generic brand

= BOSCH 0120489336 / 0120488284 / 0986035760

= ISKRA AAK4530 / 11.201.585

= LUCAS LEA0017 / 61920275 / LRA975

= MAGNETI MARELLI 63321044 / 63321042 / 63320024

= DELCO REMY 19025068 / DRA3355

= FIAT 4799364 / 4808500 / 4808502 / 4808507

0120488284BOSCH
0120489133BOSCH
0120489334BOSCH
0120489335BOSCH
0120489336BOSCH
0120489337BOSCH
0120489876BOSCH
0120489877BOSCH
0986035760BOSCH
105009055PSH
11040786EuroTec
111418Cargo
11201585MAHLE
12030120EuroTec
12030970EuroTec
12031410EuroTec
12035760EuroTec
13152Lester
19025068DELCO REMY
20100975PRESTOLITE
220499PIC
23696LUCAS
240705LUCAS
3621SPSpidan
4094CEVAM
42498240FIAT
42498504FIAT
436586VALEO
4799364CHRYSLER
4808500FIAT
4808502FIAT
4808507FIAT
4808509IVECO
56117EAI
63303290MAGNETI MARELLI
63307227MAGNETI MARELLI
63320024MAGNETI MARELLI
63321039MAGNETI MARELLI
63321042MAGNETI MARELLI
63321044MAGNETI MARELLI
8EL011360761HELLA
8EL011711011HELLA
9035760FFriesen
9120690043BOSCH
933355EDR
933355XEDR
935760EDR
ALT1139saElectrolog
ALT1164saElectrolog
ALT4050UNIPOINT
ALT7976SAElectrolog
ALT9006saElectrolog
ALT9058saElectrolog
CA642IRHC
DAN2049DENSO
DAN610DENSO
DRA3355DELCO REMY
DRA5760DELCO REMY
F032UA0009BOSCH
F032UA0009K2FBOSCH
F042307000BOSCH
F042A07000BOSCH
HCA642IRHC
IA0585MAHLE
L35760ATL
L60990ATL
LRA00975LUCAS
MAN283MAGNETI MARELLI
MAN286MAGNETI MARELLI
MG151MAHLE

                           Fits

BrandModelTypYear
ALFA ROMEOAR 8 2.4[8140.21.200D.I.]04.1985-12.1988
ALFA ROMEOAR 8 2.4 TD[8140.21.200D.I.]04.1985-12.1989
FIATDucato 1.9 Panorama[149B1.000]07.1990-03.1994
FIATDucato 1.9 TD[280A1.000]03.1989-03.1994
FIATDucato 2.5 4x4[8144.67]03.1989-08.1990
FIATDucato 2.5 4x4[8144.67]07.1990-03.1994
FIATDucato 1.9 TD Panorama[280A1.000]07.1990-03.1994
FIATDucato 2.5 TD 4x4[8140.27]07.1990-03.1994
IVECO35-8 2.5[8140.67F.3710]01.1991-08.1998
IVECO35-8 2.5[8140.67F.3711]01.1991-08.1998
IVECO35-8 2.5[8140.67F.3713]01.1991-08.1998
IVECO35-8 2.5[8140.67F.3721]01.1991-08.1998
IVECO35-8 2.5[8140.67F]01.1989-08.1998
IVECO35-8 2.5[8140.67F]01.1991-08.1998
IVECO40-10 2.4[8140.27S]01.1985-12.1989
IVECO40-10 2.5[8140.27.2720]01.1990-04.1996
IVECO40-10 2.5[8140.27.2720]01.1991-12.1996
IVECO40-8 2.4[8140.61.200]01.1983-06.1989
IVECO45-10 2.4[8140.21.200]01.1985-12.1989
IVECO45-10 2.5[8140.27.2720]01.1991-04.1996
IVECO45-12 2.5[8140.47.2711]06.1990-04.1996
IVECO45-12 2.5[8140.47.2721]06.1990-04.1996
IVECO49-10 2.4[8140.21.200]01.1985-12.1989
IVECO49-10 2.5[8140.27.2700]01.1989-04.1996
IVECO49-10 2.5[8140.47R.2790]01.1989-04.1996
IVECO49-12 2.5[8140.47.2711]06.1990-04.1996
IVECO49-12 2.5[8140.47.2721]06.1990-04.1996
IVECO59-12 2.5[8140.47.2700]05.1991-04.1996
IVECO59-12 2.5[8140.47.2711]05.1991-04.1996
IVECO30-8 2.5[8140.07.2700]01.1989-08.1998
IVECO30-8 2.5[8140.07.2700]01.1992-08.1998
IVECO30-8 2.5[8140.07.2712]01.1989-08.1998
IVECO30-8 2.5[8140.67F.3710]01.1989-08.1998
IVECO30-8 2.5[8140.67F.3710]01.1996-08.1998
IVECO30-8 2.5[8140.67F.3711]01.1989-08.1998
IVECO30-8 2.5[8140.67F.3711]01.1996-08.1998
IVECO30-8 2.5[8140.67F.3713]01.1989-08.1998
IVECO30-8 2.5[8140.67F.3713]01.1996-08.1998
IVECO30-8 2.5[8140.67F.3721]01.1989-08.1998
IVECO30-8 2.5[8140.67F.3721]01.1996-08.1998
IVECO30-8 2.5[8140.67F]01.1989-08.1998
IVECO30-8 2.5[8140.67F]01.1996-08.1998
IVECO35-10 2.4[8140.21.200]01.1985-12.1989
IVECO35-10 2.5[8140.47R.2790]01.1989-12.1996
IVECO35-10 2.5[8140.47R.2790]01.1989-08.1998
IVECO35-10 2.5[8140.47R]01.1989-08.1998
IVECO35-10 2.5[8140.97.2781]01.1989-12.1996
IVECO35-12 2.5[8140.47.2700]01.1990-04.1996
IVECO35-8 2.5[8140.07.2700]01.1989-08.1998
IVECO35-8 2.5[8140.07.2700]01.1991-08.1998
IVECO35-8 2.5[8140.07.2712]01.1989-08.1998
IVECO35-8 2.5[8140.07.2712]01.1991-08.1998
IVECODaily 2.8[8140.23.]11.1997-07.2007
IVECO35-8 2.5[8140.67F.3701]01.1991-08.1998
IVECODaily 2.8 4x4[8140.43.]02.1995-05.1999
