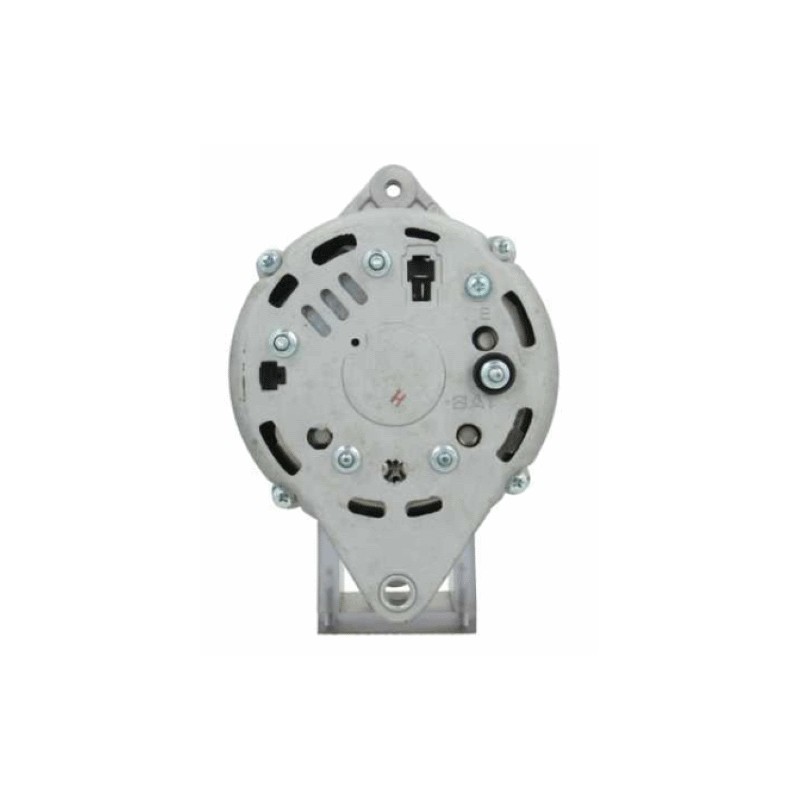

Alternator replacing HITACHI LR160-78B / LR160-78 / LR160-77

Information:

Voltage 14

Amp 60

D = Bracket hole 10.15

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.10

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.40

H = Pulley dia. 75.30

A = Pulley dist. 42.50

Grooves/pulley 1

J = Radius 90.00

J = Radius 85.00

Position B + M5

Rotation Cr

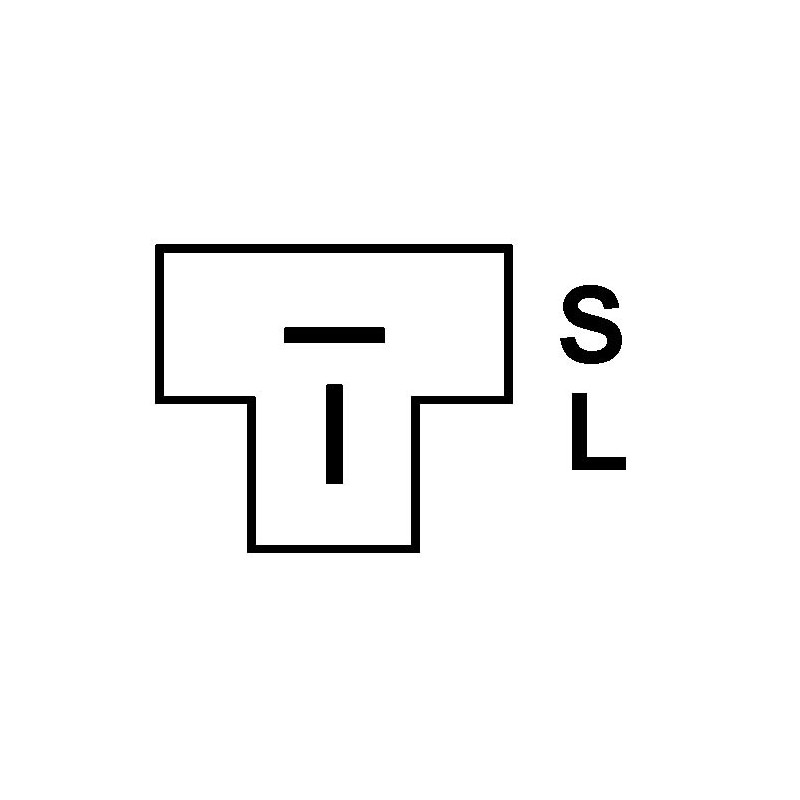

Plug no. 1 PL08

Fan Ef

Pulley Pulley

R = Total length mm 166.20

Generic Brand

= HITACHI LR160-78B / LR160-78 / LR160-77 / LR160-74 / LR160-124

LR160-121 / LR160-120 / LR160-116 / LR160-109C / lr160-105

= MITSUBISHI AQ2060B3 / A3T40472 / A3T34872 / A3T33272

A3T32272 / A3T02972 / A2T40972 / A2T40971 / A2T14472

A002T14472 / A002T40971 / A002T40972 / A003T02972

A003T32272 / A003T33272 / A003T34872 / A003T40472

= NISSAN 23100-01n03 / 23100-01n06 / 23100-01n16

23100-04m00 / 23100-04m10 / 23100-20W01 / 23100-37m00

23100-d0800 / 23100-d0810 / 23100-p3013  / 23100-q4600

23100-q4601 / 23100-q4610 / 23100-q4611 / 23100-r2000

23100-u9601 / 23100-u9602 / 23100-u9610 / 23100-u9612

23100-v2800 / 23100-v2810 / 23100-w1608 / 23100-w1615

23100-w5817 / 23100-w7510

                   NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
