Alternator replacing DENSO 121000-1012 / 121000-1011 / 121000-1010 / 121000-0451

Information:

Voltage 14

Amp 50

 D = Diamétre du trou 10.30

G =Belt. adj. bracket hole M8

B =Width/holder arm 12.00

E =Belt. adj. brackethole pos. 6

C =Mount. bracket dist 66.50

H =Pulley dia. 55.00

A =Pulley dist. 41.00

Grooves/pulley 5

J1 =Radius 88.00

J2 =Radius 88.00

Position B + M6

Rotation Cr

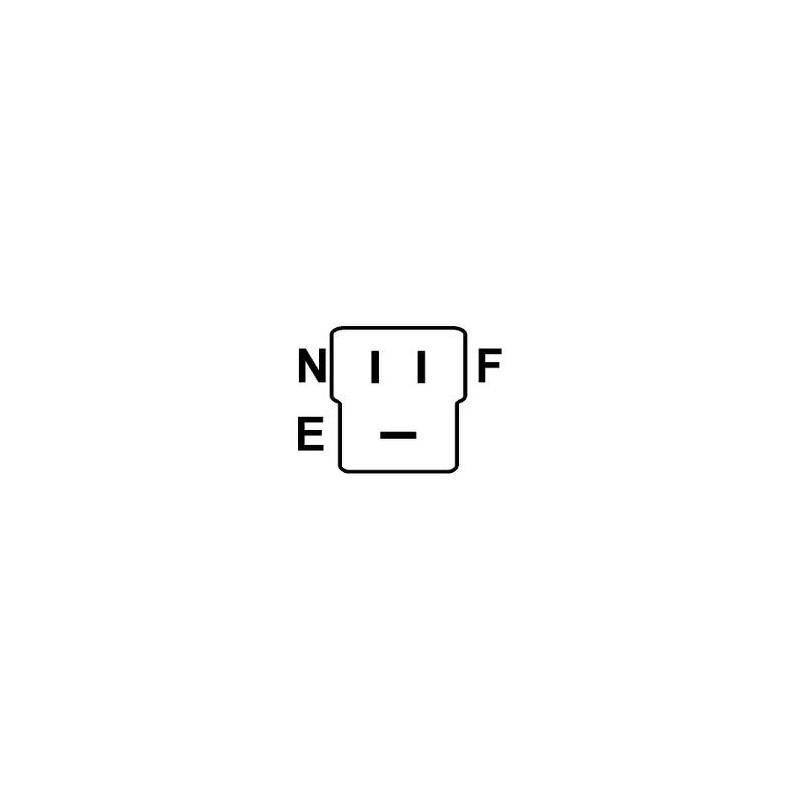

Plug no. 1 PL15

Fan Ef

Pulley Serpentine Pulley

R =Total length mm 165.50

= BOSCH 0986034320 / 0986034321

= DENSO 121000-1012 / 121000-1011 / 121000-1010 / 121000-0451 / 121000-0450

= DELCO REMY DRA4321

= LUCAS LRA00687 / LRA687

= TOYOTA 27020-16030 / 27020-16040 / 27020-63010

= VALEO 436540

                            NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
