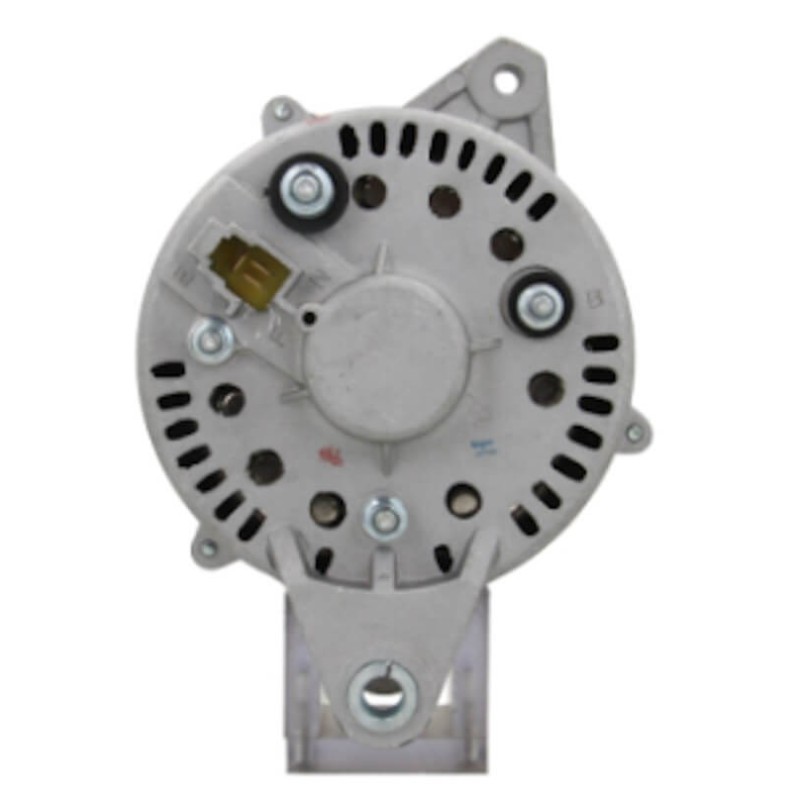

Alternator replacing DENSO 021000-4510 / 021000-4271

Information:

Voltage 28

Amp 15

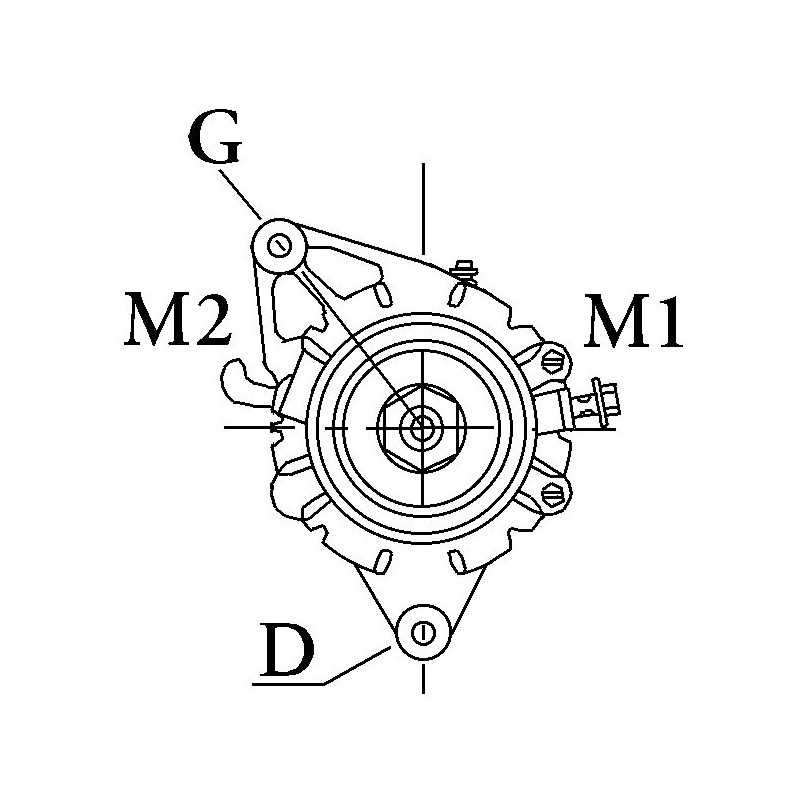

D = Bracket hole 10.25

G = Belt. adj. bracket hole M8

B = Width/holder arm 12.25

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 76.00

H = Pulley dia. 84.70

A = Pulley dist. 48.15

Grooves/pulley 1

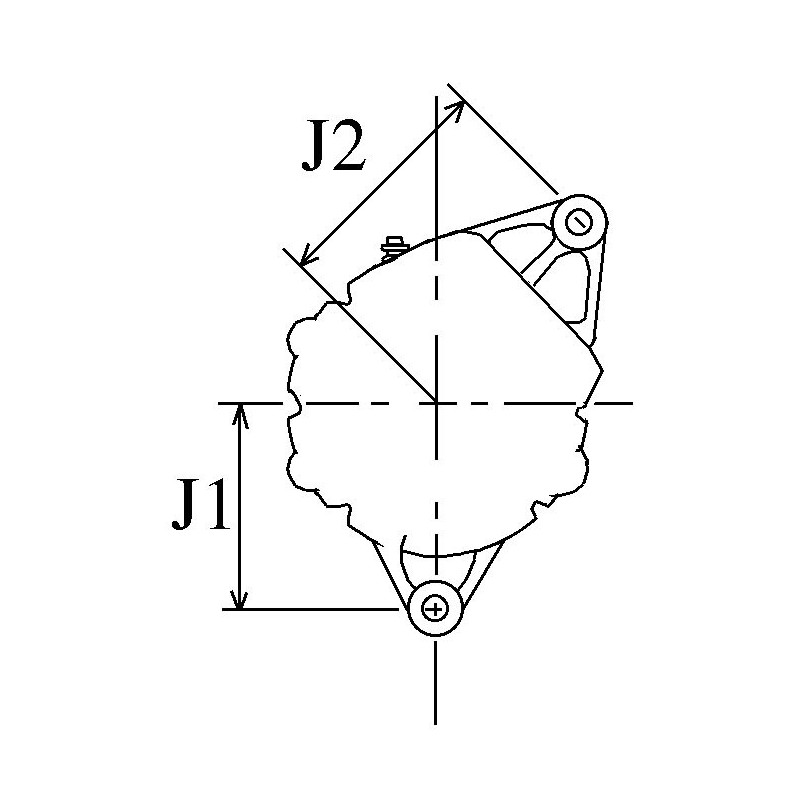

J = Radius 87.00

J = Radius 87.45

Position B + M6

Rotation Cr

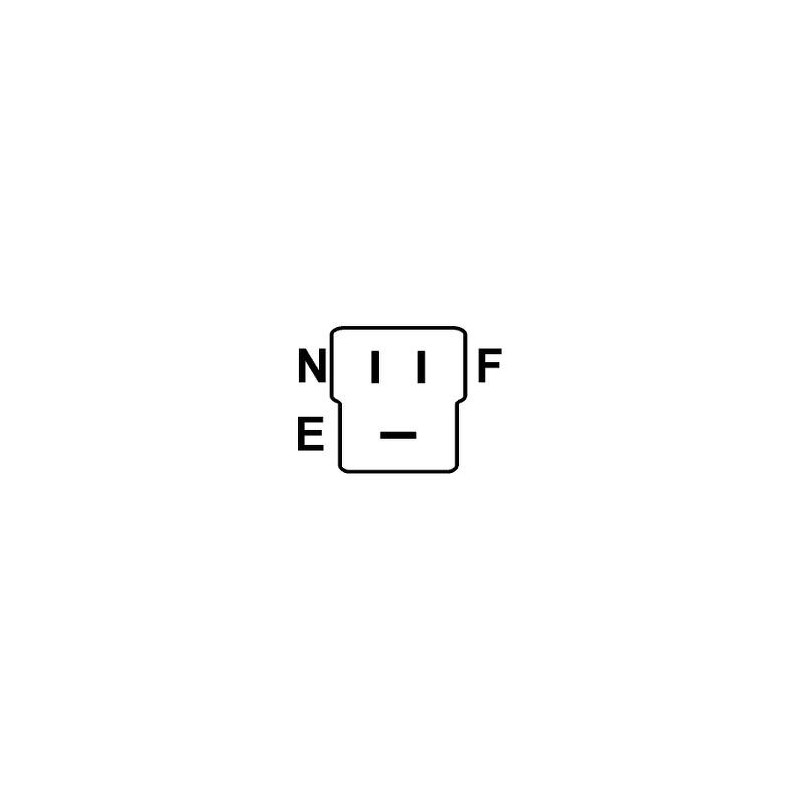

Plug no. 1 PL15

Fan Ef

Pulley Pulley

R = Total length mm 161.25

Generic brand

replacing

= DENSO  021000-4510 / 021000-4271

= TOYOTA 27020-10940 / 27020-78601-71 / 27020-96601

                         NO CORE EXCHANGE NEEDED

                                          TWO YEARS WARRANTY
