Alternator replacing MITSUBISHI A2TA5391ZT / A2TA5391 / A2TA4991

Information:

Voltage 14

Amp 100

D = Bracket hole 10.70

G = Belt. adj. bracket hole M8

B = Width/holder arm 17.30

E = Belt. adj. brackethole pos. 55

C = Mount. bracket dist 55.40

H = Pulley dia. 65.00

A = Pulley dist. 24.00

I = Grooves/pulley 5

J = Radius 96.00

J = Radius 92.00

Position B + M8

Rotation Cr

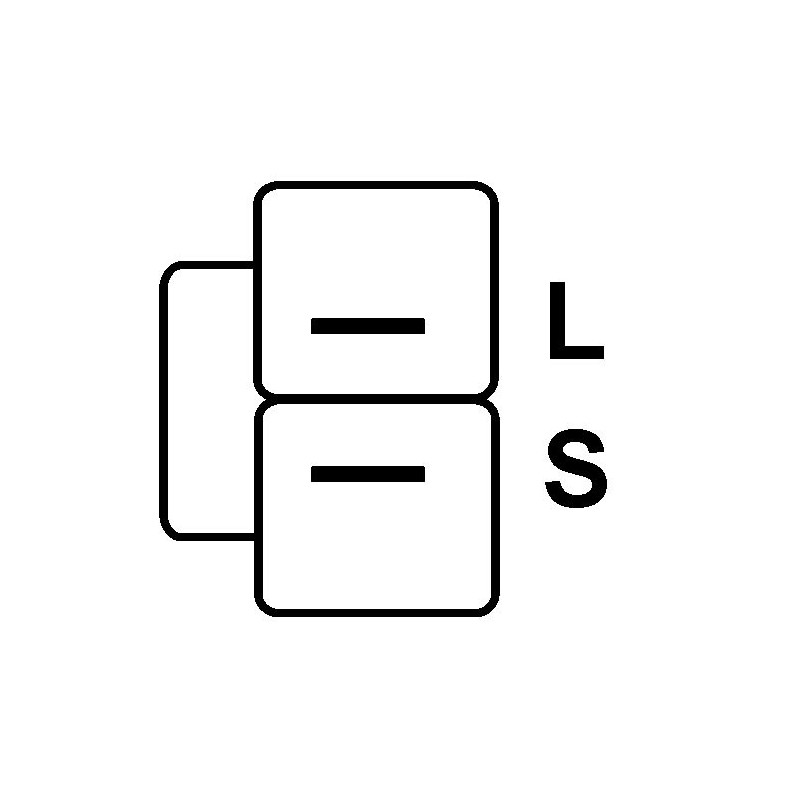

Plug no. 1 PL07

Fan If

Pulley Serpentine Pulley

R = Total length mm 167.00

= MITSUBISHI MD350609 / MD317119 / MD303481 / A3TA1191A / A3TA1191 / A3T14491

A003TA1191A / A003TA1191 / A003T14491

= LUCAS LRA02744

= MAGNETI MARELLI MRA51556 / MRA51560

                                   NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
