Alternator replacing HITACHI LR150-425B / LR150-425 / NISSAN 23100-0f000

For ce modèle le délai from livraison peut être from 4 to 5 jours

Information:

Voltage 14

Amp 60

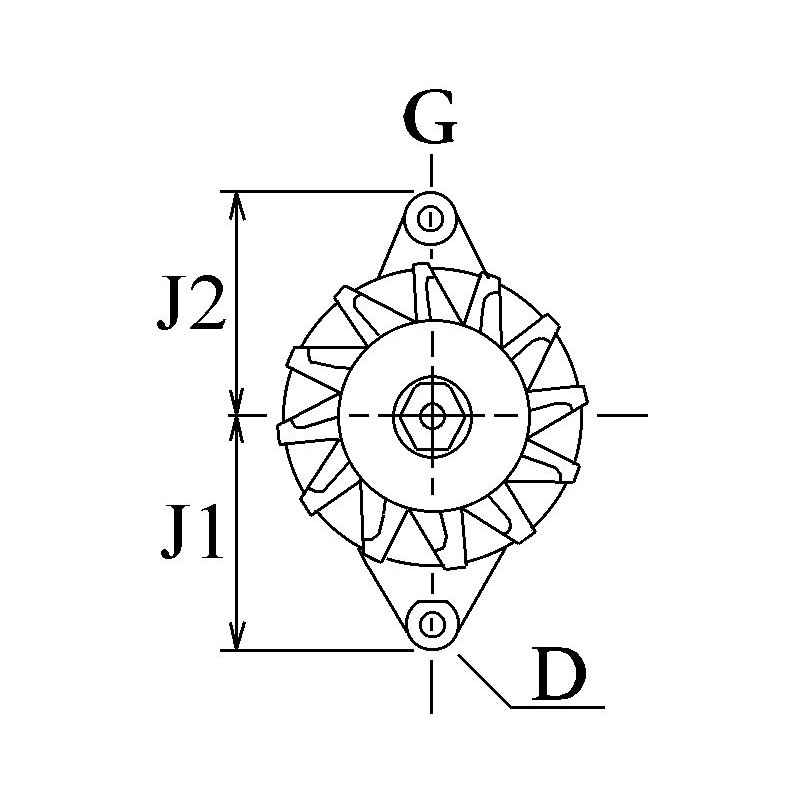

D = Bracket hole 10.40

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.10

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 80.40

H = Pulley dia. 85.00

A = Pulley dist. 42.00

Grooves/pulley 1

J = Radius 90.00

J = Radius 85.00

Position B + M6

Rotation Cr

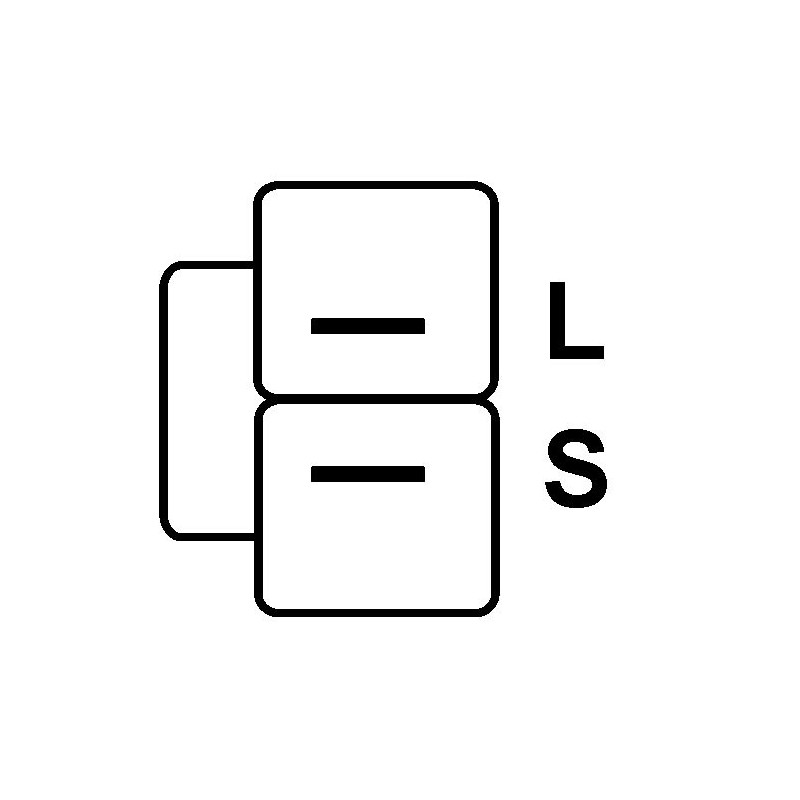

Plug no. 1 PL07

Fan Ef

Pulley Pulley

R = Total length mm 247.00

= BOSCH 9120334631 / 9120334632

= HITACHI LR150-425B / LR150-425

= NISSAN 23100-0f000

                                       NO CORE EXCHANGE NEEDED

                                                    TWO YEARS WARRANTY
