Alternator replacing DENSO 102211-5041 / 102211-5040 / 101211-9590

Information:

Voltage 14

Amp 80

D = Bracket hole 10.50

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 58.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 54.50

A = Pulley dist. 90.50

Grooves/pulley 4

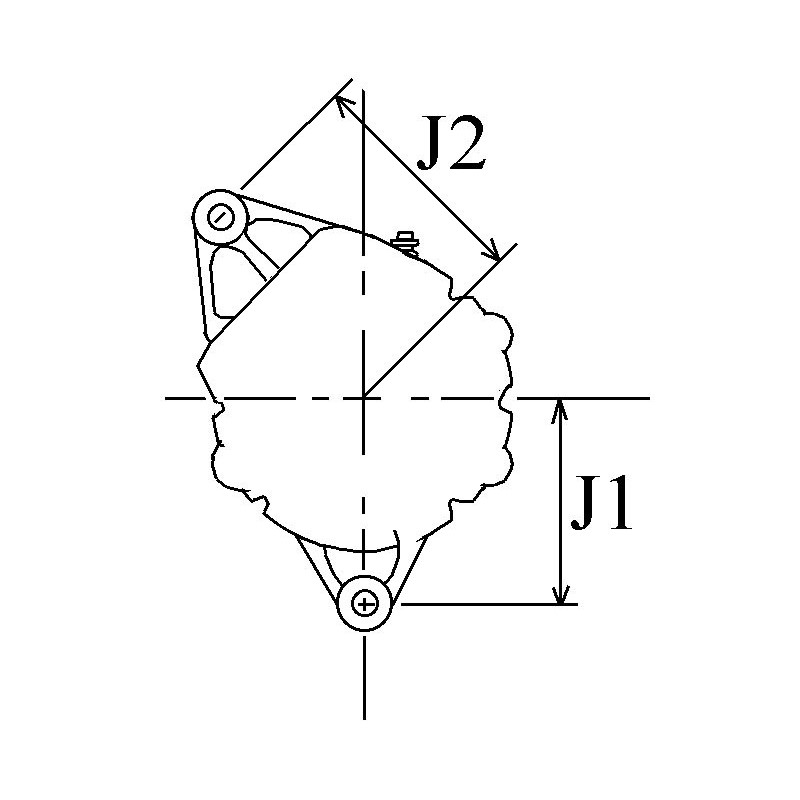

J = Radius 84.00

J = Radius 80.00

Position B + M6

Rotation Cr

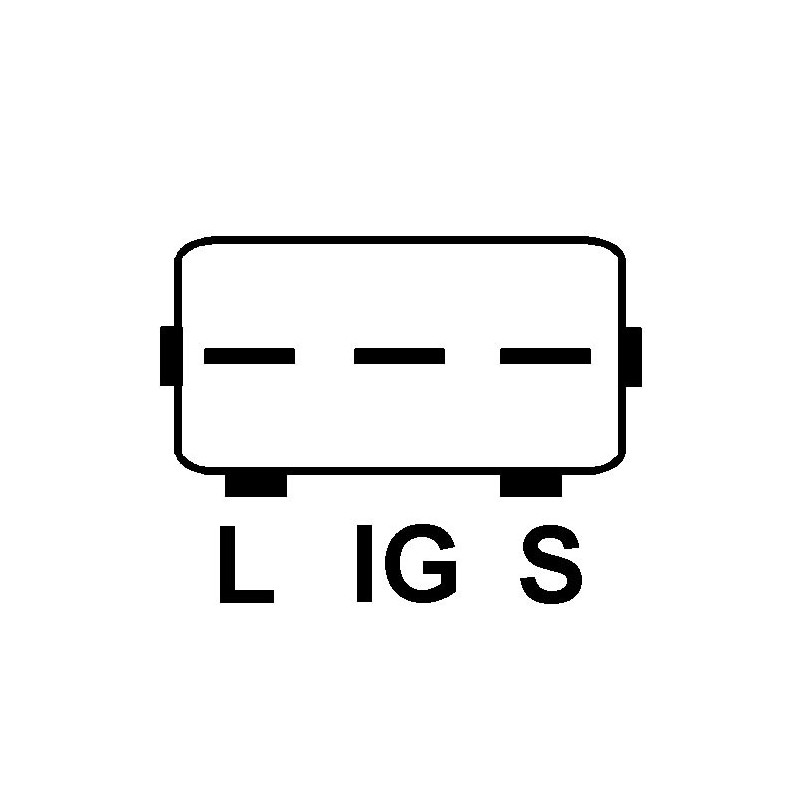

Plug no. 1 PL42

Pulley Serpentine Pulley

R = Total length mm 160.70

= DENSO 102211-5041 / 102211-5040 / 101211-9590 / 101211-4131 / 101211-0952

102211-5042 / 101211-0951 / 101211-0950

= TOYOTA 27060-62160 / 27060-62190
