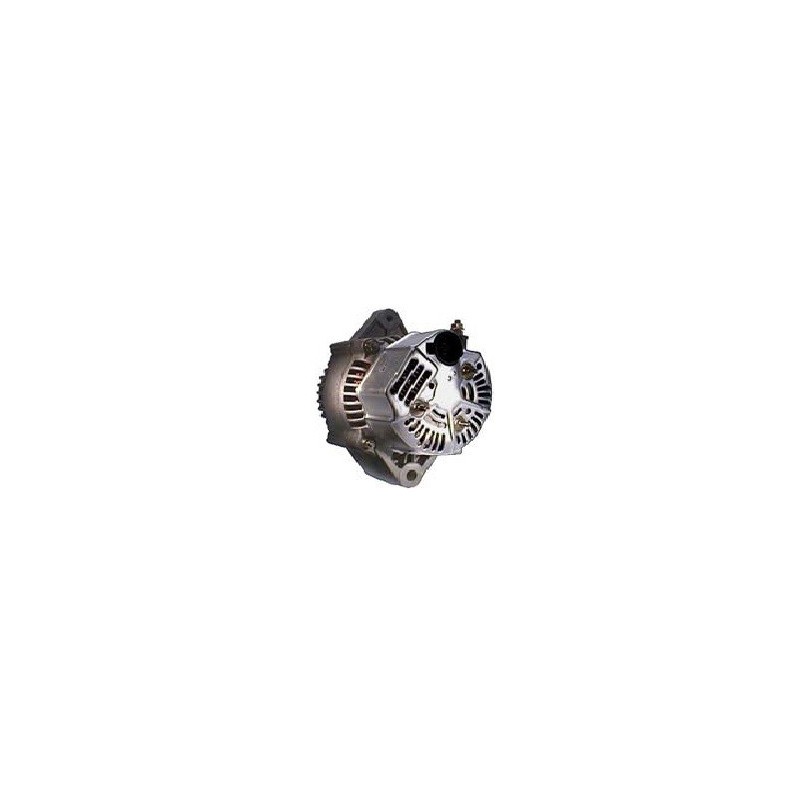

Alternator replacing DENSO 100211-8070 / 100211-7600 / 100211-7440

Information:

Rotation Cr

Amp 60

Voltage 14

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.50

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 54.50

A = Pulley dist. 90.00

Grooves/pulley 5

J = Radius 80.00

J = Radius 2 84.00

Position B + M6

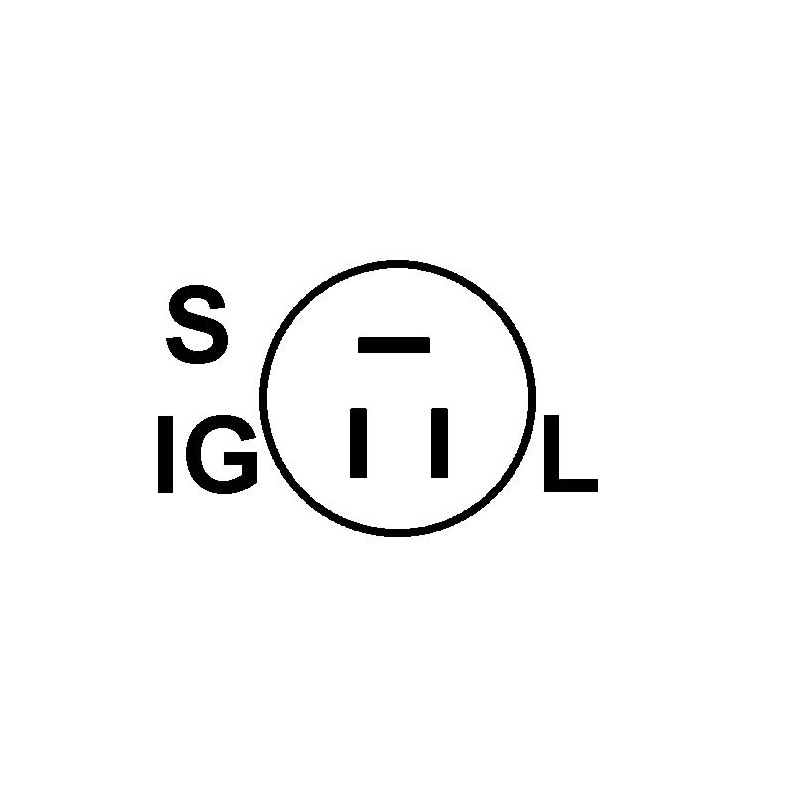

Plug no. 1 PL12

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

R = Total length mm 155.00

= DENSO 100211-8070 / 100211-7600 / 100211-7440 / 100211-3680

100211-3200 / 100211-3111 / 100211-3110 / 100211-1030

100211-1031 / 100211-1090 / 100211-1091  / 100211-1150

100211-1500 / 100211-2000 / 100211-2001 / 100211-2060

100211-2061 / 100211-2080 / 100211-2110 / 100211-2250

100211-2510

= TOYOTA 27060-43050 / 27060-43060 / 27060-43061

27060-43062 / 27060-43090 / 27060-43110

27060-43111 / 27060-43120 / 27060-72062

27060-72070 / 27060-72071 / 27060-72090

27060-72100 / 27060-72101 / 27060-72120

27060-72121 / 27060-75080

14679N

                   NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
