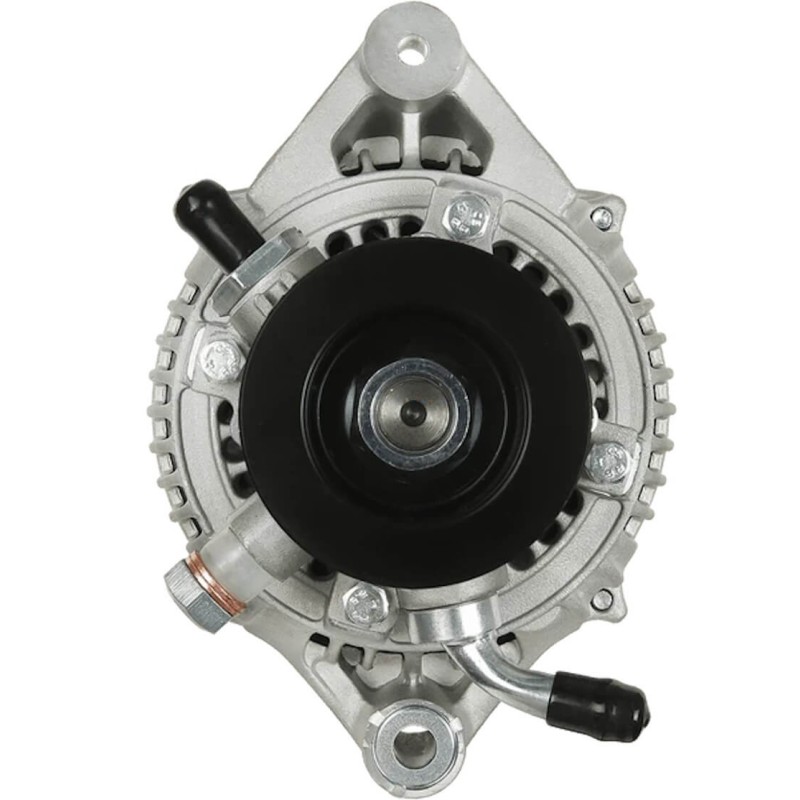

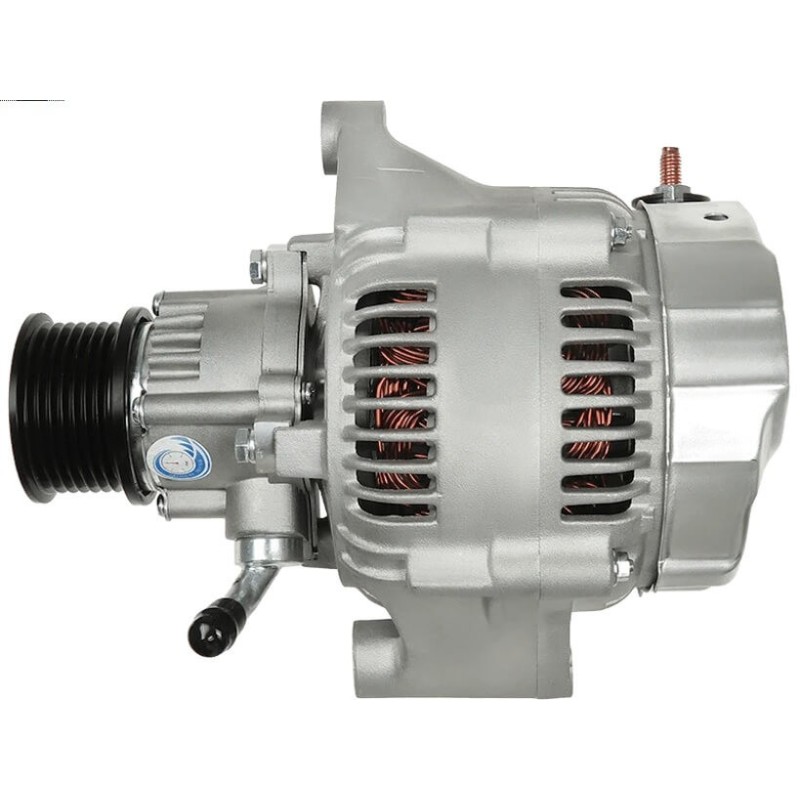

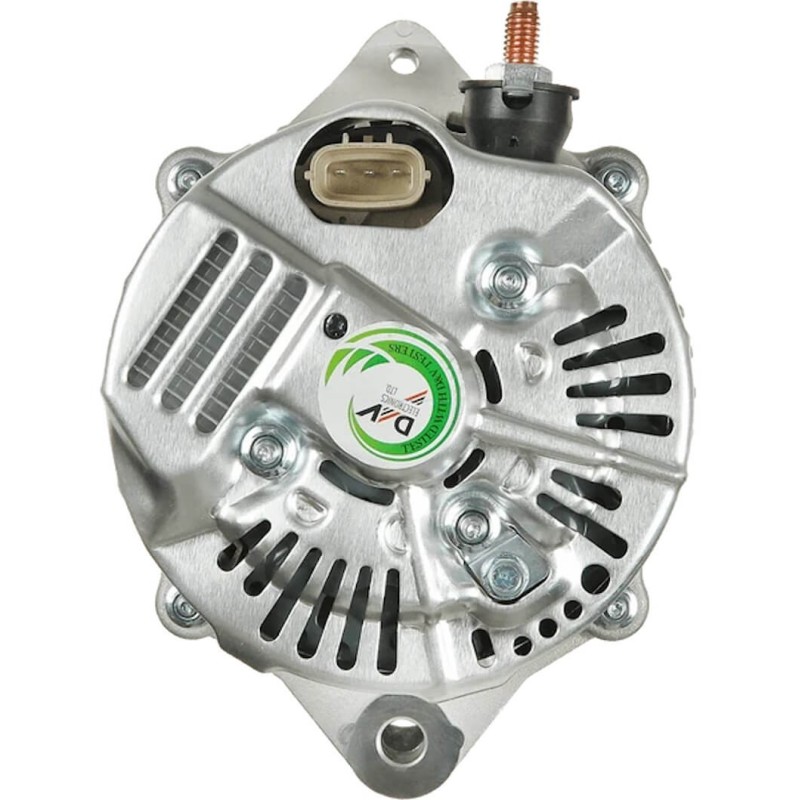

Alternator replacing DENSO 100213-2530 / 100213-2391 forLAND ROVER

Information:

Voltage 14

Amp 120

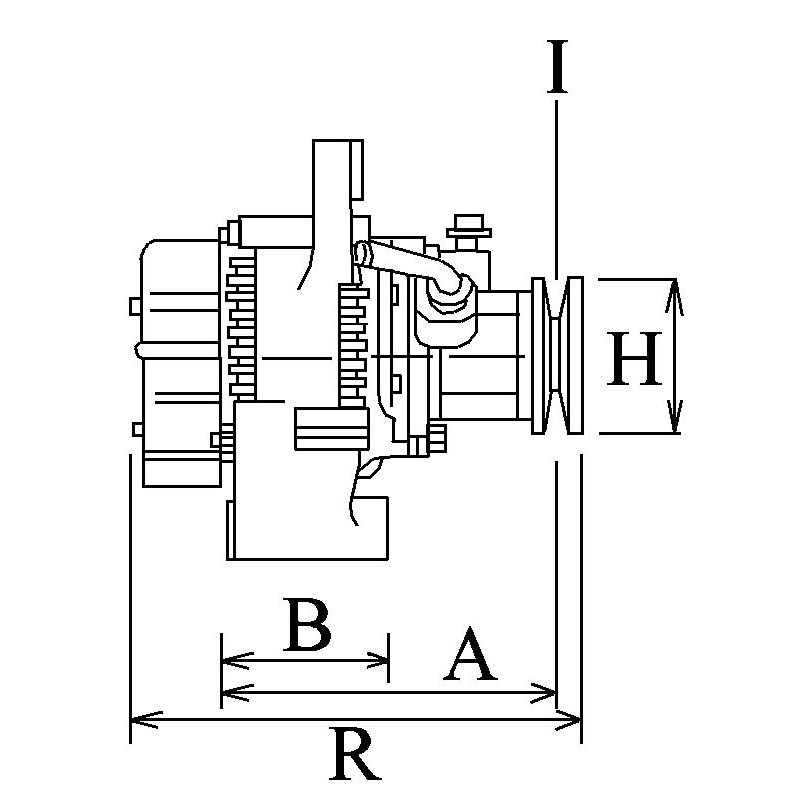

D = Bracket hole 10.60

G = Belt. adj. bracket hole M8

B = Width/holder arm 69.70

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 55.31

A = Pulley dist. 143.00

Grooves/pulley 7

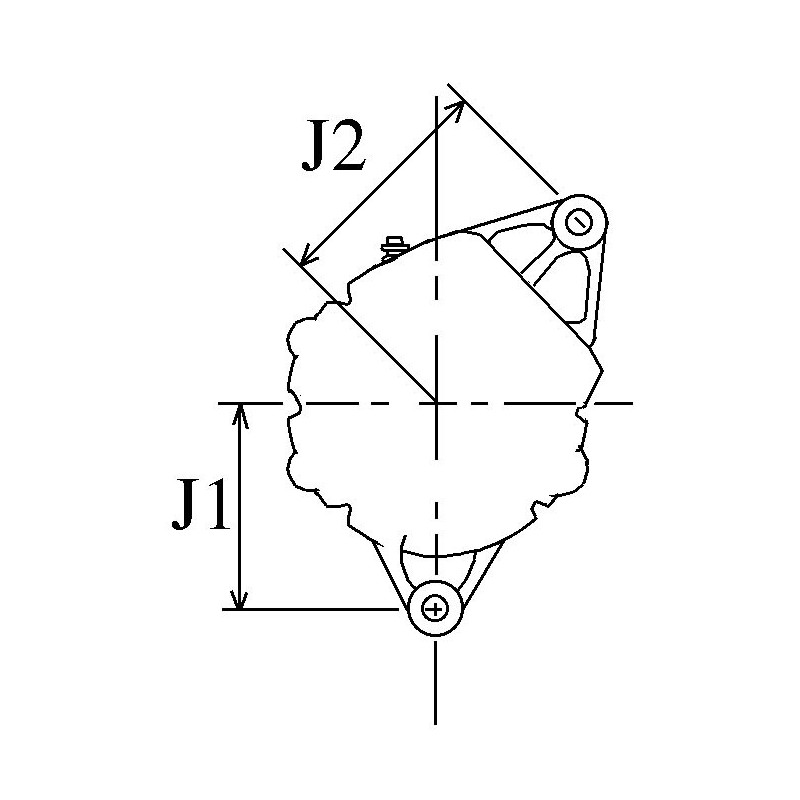

J = Radius 84.00

J = Radius 81.00

Position B + M8x1.25

Rotation Cr

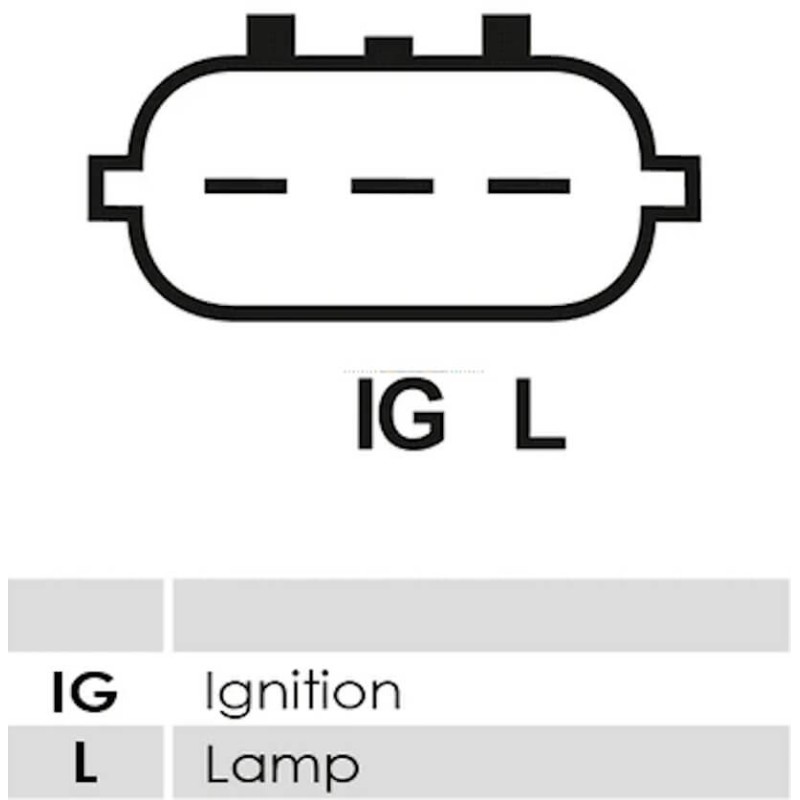

Plug no. 1 PL58

Fan If

Pulley Serpentine Pulley

R = Total length mm 236.00

generic brand

replacing

= DENSO 100213-2530 / 100213-2391

= CHRYSLER 38522267F

= ROVER group err6999

                                                TWO YEARS WARRANTY

          NO CORE EXCHANGE NEEDED
