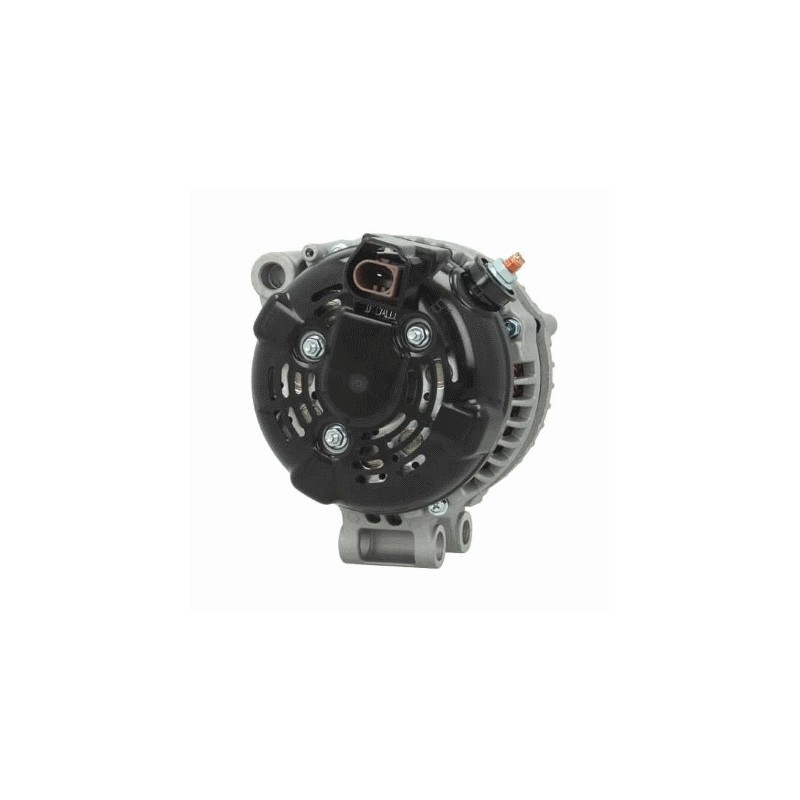

Alternator replacing 104210-2420 / 104210-2421 / LR013847 / LR072756

w116007

New product

2 Items

Alternator replacing 104210-2420 / 104210-2421 / DAN1105 / LR013847 / LR072756 / DRA1437 / LRA03666

NO CORE EXCHANGE NEEDED

179,90 € Inc VAT

Add to wishlist

More info

Physical Training
A Dist. pulley 22.50
B Arm width 49.30
C Distance between supports 47.50
D Hole diameter 11.50x14.00
E Tensioning paste angle 10
G Diameter hole of the leg 10.30
H Pulley dia. 54.00
I Pulley grooves 6
J Radius 84.50
J Radius 2 86.00
K Position B + M8
K Position B+ in min. 9
N Rotation Cr
O Socket no. 1 PL174
R Total length mm 178.00

generic brand

replacing

0210801360DENSO
1042102420DENSO
1042102420ORGeneric
1042102421DENSO
1042102422DENSO
116007Cargo
12061105EuroTec
20491CTWAI
286806Elstock
455525150PSH
57471EAI
9090908Friesen
931437EDR
AH2210300ABMITSUBISHI
ALT6703saElectrolog
DAN1105DENSO
DRA1437DELCO REMY
LR013847ROVER Group
LR065866ROVER Group
LR072756ROVER Group
LRA03666LUCAS
OAN12770Optimum

used on :

BrandModelTipoyear
LAND ROVERDiscovery 3.0 SDV6[30DDTX]01/11/09
LAND ROVERDiscovery 3.0 TD[306DT]01/09/09
LAND ROVERDiscovery 3.0 TD[306DT]01/07/12
LAND ROVERDiscovery 3.0 TD TDV6[306DT]01/05/10
LAND ROVERDiscovery 3.0 TD TDV6[30DDTX]01/05/10
LAND ROVERRange ROVER 3.0 TD[30DDTX]01/09/09
LAND ROVERRange ROVER 3.0 TD V6[30DDTX]01/05/10
LAND ROVERRange ROVER Sport 3.0 TD[306DT]01/08/12
LAND ROVERRange ROVER Sport 3.0 TD[30DDTX]01/06/11
