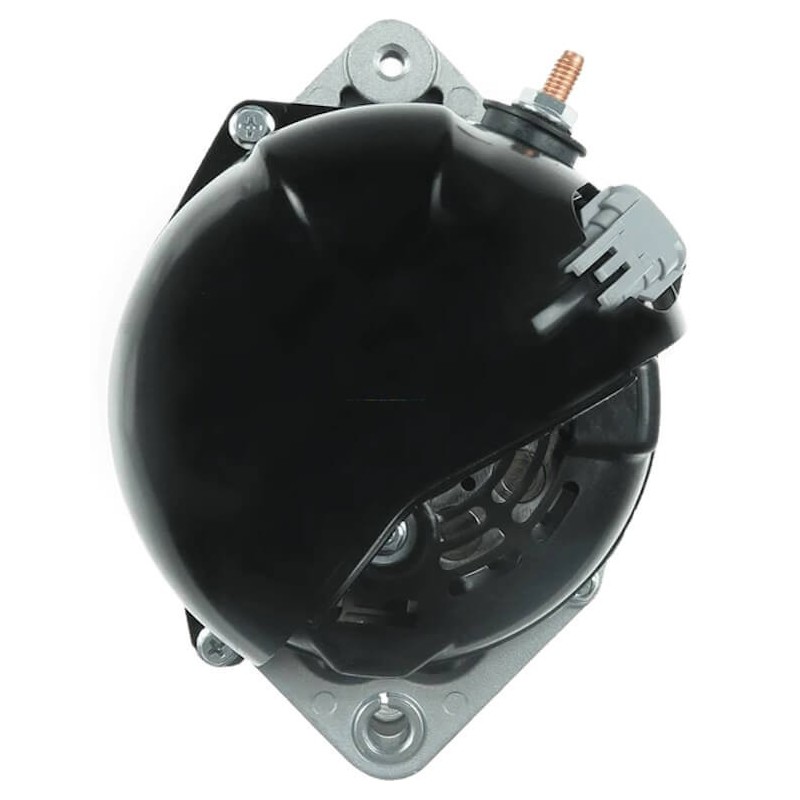

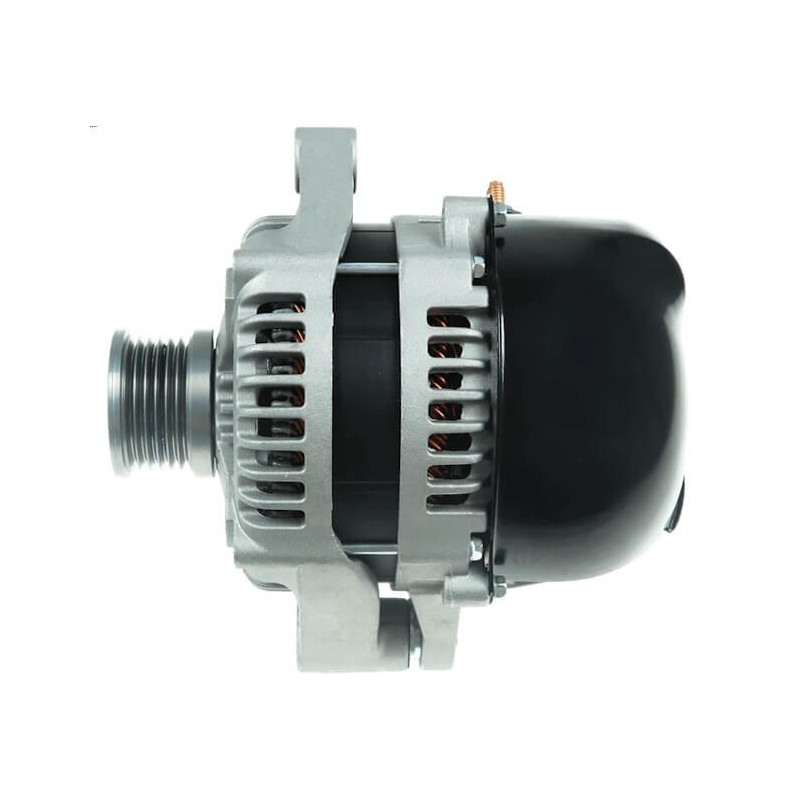

Alternator replacing 104210-3370 / 104210-3371 / 8973250250
W575927150
115813 | Cargo | |
286792 | Elstock | |
575927150 | PSH | |
7701055020 | Renault | |
7701066398 | Renault | |
8201268243 | Renault | |
8973250250 | Isuzu | |
8980337870 | PSA | |
ALT30625 | Wood Auto | |
DRA1197 | Remy | |
LRA03652 | Lucas | |
LRA3652 | Lucas |
Features
Information:
Electrical Information | ||
---|---|---|
Voltage | 14 | |
Amp | 150 |
Generic brand
Physical Information | ||
---|---|---|
D | Bracket hole | 10.50 |
G | Belt. adj. bracket hole | M8 |
B | Width/holder arm | 58.00 |
E | Belt. adj. brackethole pos. | 60 |
H | Pulley dia. | 48.50 |
A | Pulley dist. | 96.00 |
i | Grooves/pulley | 6 |
j | Radius | 83.00 |
j | Radius 2 | 86.00 |
k | Position B + | M8 |
n | Rotation | CW |

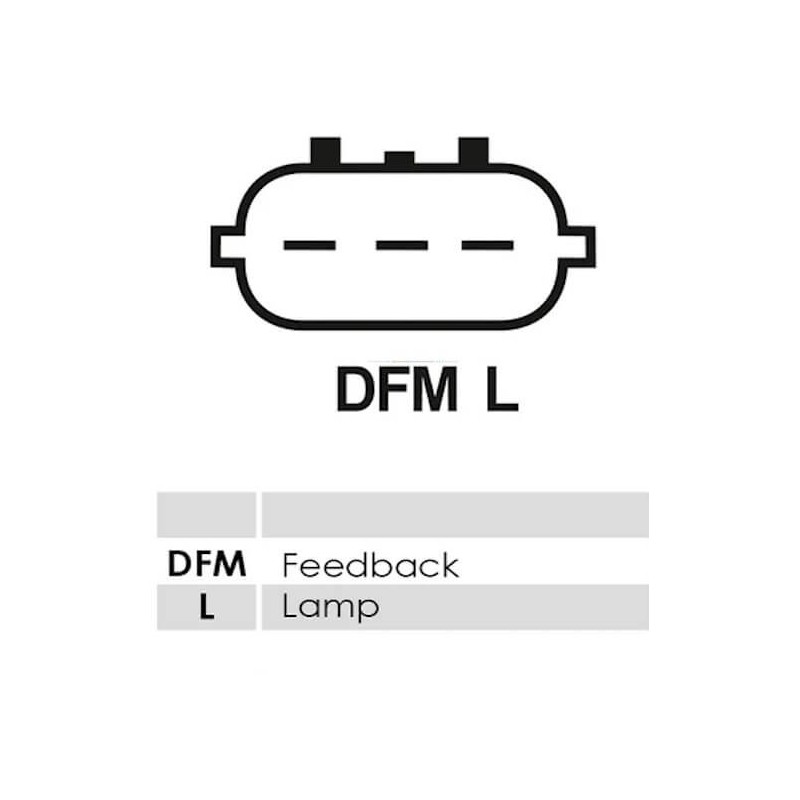

o | Plug no. 1 | PL192 |
generic brand
replacing
1042103370 | Denso |
1042103371 | Denso |
115813 | Cargo |
286792 | Elstock |
575927150 | PSH |
7701055020 | Renault |
7701066398 | Renault |
8201268243 | Renault |
8973250250 | Isuzu |
8980337870 | PSA |
ALT30625 | Wood Auto |
DRA1197 | Remy |
LRA03652 | Lucas |
LRA3652 | Lucas |
RNL1042103370 | RNL |
RNL1042103370B | RNL |
RNL1042103370D | RNL |
TRA287 | TWA |
WOOALT30625 | Wood Auto |
fits:
Brand | Model | Typ | Year |
RENAULT | Espace 3.0 dCi | [P9X701] | 01/01/02 |
RENAULT | Grand Espace 3.0 dCi | 01/01/02 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
