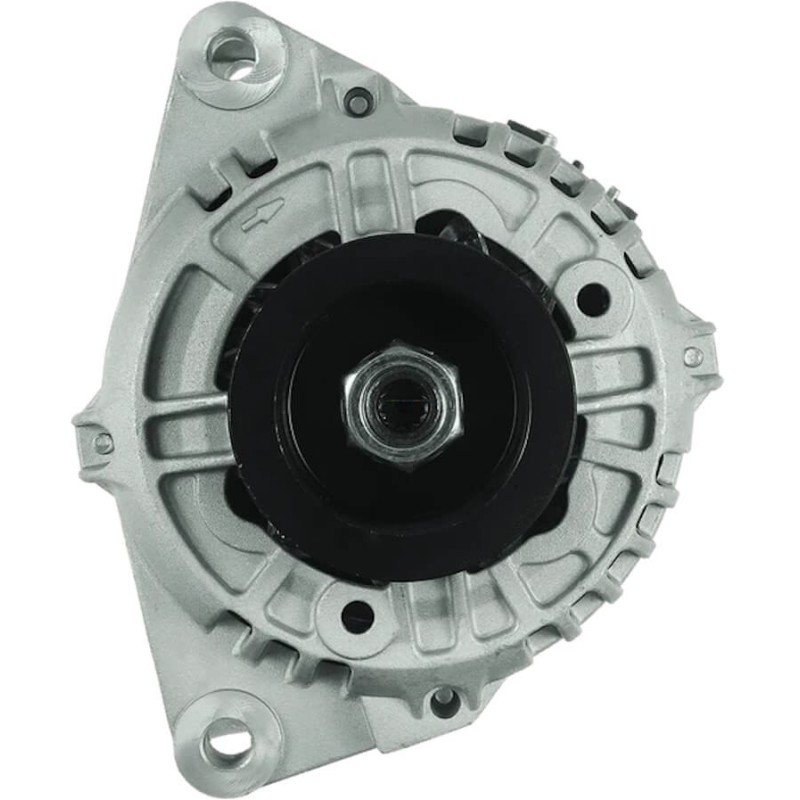

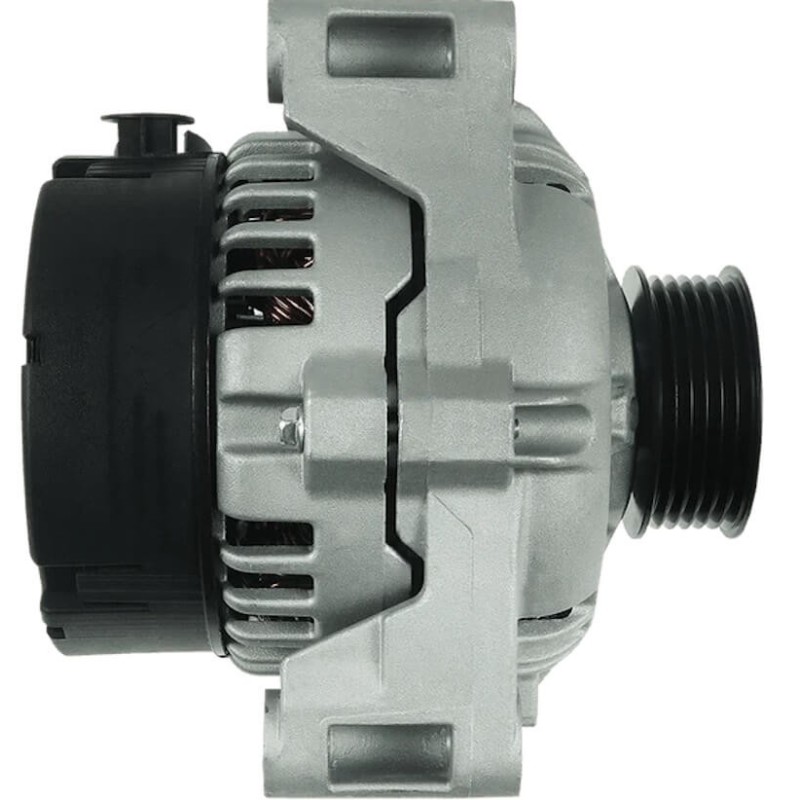

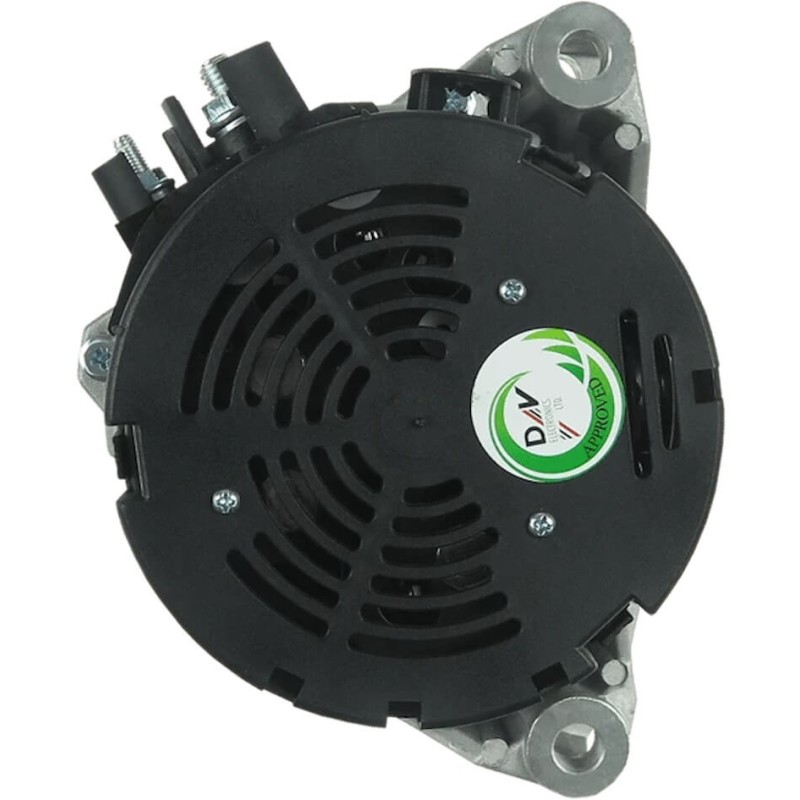

Alternator replacing VALEO A13VI95 / A13VI260 / A13VI230

Information:

Voltage 14

Amp 80

D = Bracket hole 10.20

G = Belt. adj. bracket hole 11.10

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 62.80

A = Pulley dist. 92.00

Grooves/pulley 6

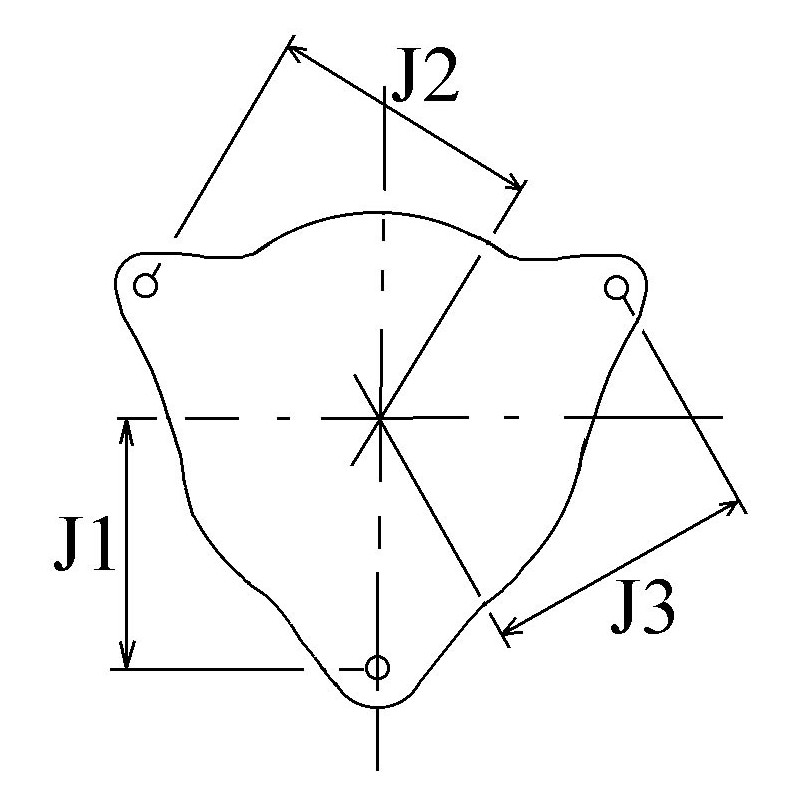

J = Radius 87.00

J = Radius 87.00

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 166.00

= VALEO 2542357 /2542253 / 2541759 / A13VI260 / NA500 / A13VI95

= MAGNETI MARELLI 943356577010 / 944390397600 / 943356576010 / 943356577 / 943356966010

= MITSUBISHI A2TB4391 / A2TA1994D / A2TA1994C / A2TA1994B / A2TA1994 / A002TB4391

A002TA1994D / A002TA1994C

= DELCO REMY DRA9300 / DRA9760 / DRA3625 / DRB0231

= ISKRA  AAK5329 / 11.203.054

= LUCAS LRB311 / LRB00311 / LRB312

= BOSCH 0123310010 / 0986039760 / 0986039303 /  0986039763 / 0986039300

= FIAT / IVECO 9617842980

= PEUGEOT 9617842980 / 9621191780 / 9624141480 / 9631318380

5705X7 / 5705R5 / 96178428 / 5705FN / 5705X6 / 5705L2

= CITROEN 5705-L2 / 96178428 / 5705-L7 / 5705-L5 / 5705L7 / 5705R7 / 5705-L6 / 5705-JE / 5705-HY 5705R5 / 5705HY / 5705FN / 5701-C0 / 5705L6 / 5705-FN / 5701C0 / 5705-R5 / 5705-R7

= SUZUKI 31400-65G00

Generic brand

                                       NO CORE EXCHANGE NEEDED

                                                             TWO YEARS WARRANTY
