w112460

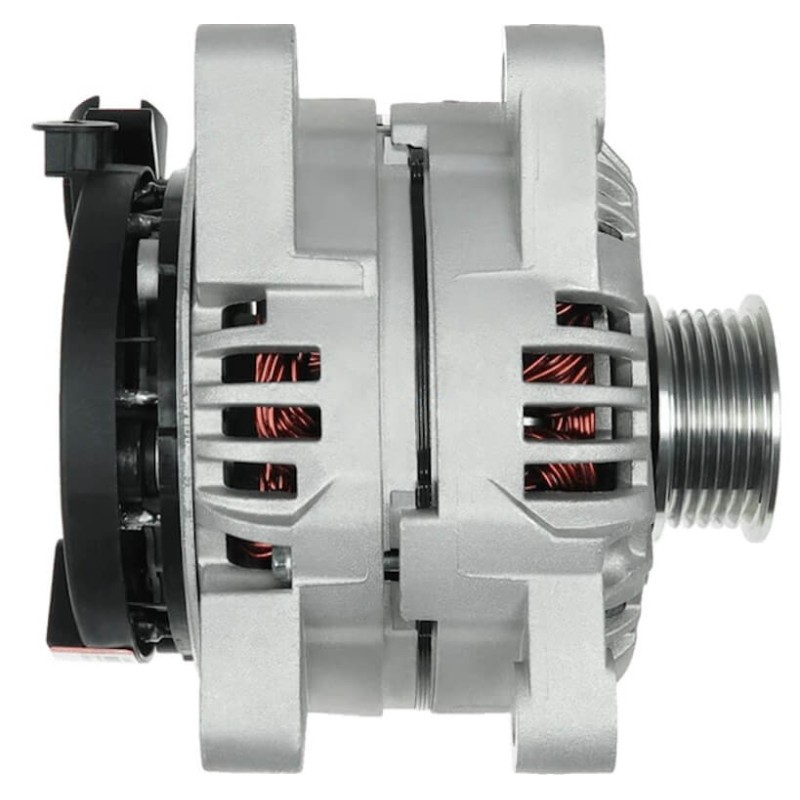

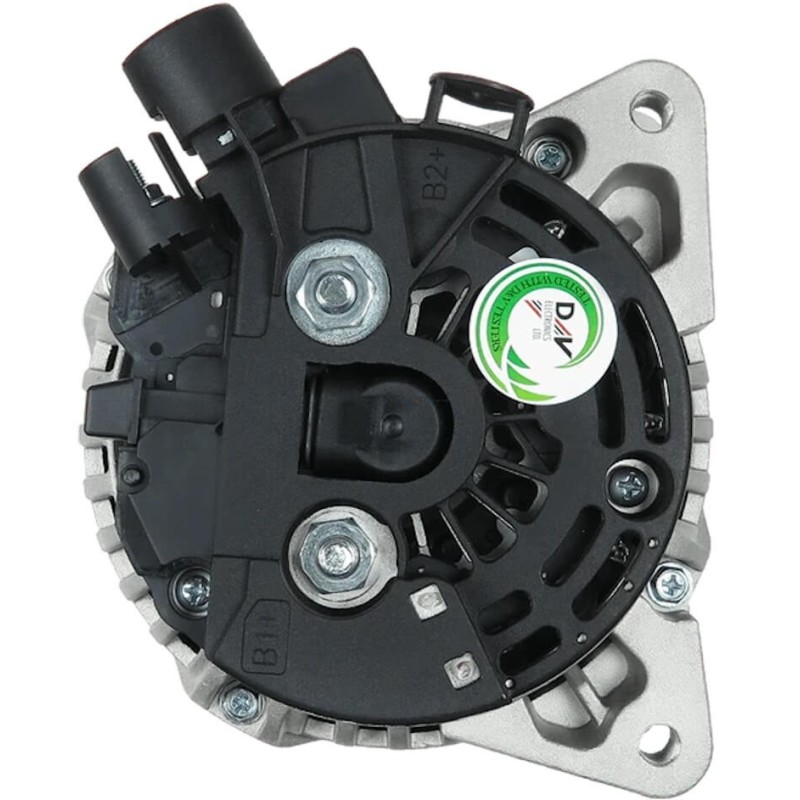

Alternator for CITROEN, FIAT, PEUGEOT

= VALEO A14VI27 / 2543492 / 2542684 / 2542681 2542556

TG15C115 / SG15S021 / SG15S016 / 437171

= BOSCH 0124615002 / 0986041930 / 0986041931

= DELCO REMY DRB1930

                    NO CORE EXCHANGE NEEDED                                                                      TWO YEARS WARRANTY

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 150

D = Bracket hole 10.50

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 22.00

E = Belt. adj. brackethole pos. 47

C = Mount. bracket dist 45.60

H = Pulley dia. 54.60

A = Pulley dist. 43.60

Grooves/pulley 6

J = Radius 91.50

J = Radius 89.50

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

generic brand

replacing :

0124615002 BOSCH
0986041930 BOSCH
0986041931 BOSCH
11204163 MAHLE
112460 Cargo
12041930 EuroTec
12201129 MAHLE
20110451 PRESTOLITE
21783N WAI
21783R WAI
21784N WAI
21790 Lester
2205390 PIC
225522150 PSH
2542228A VALEO
2542228B VALEO
2542531A VALEO
2542556 VALEO
283752 Elstock
3140086CD0000 SUZUKI
437171 VALEO
439257 VALEO
543492 VALEO
56725 EAI
57054F PSA
57055H PSA
57055J PSA
5705GC PSA
5835SP Spidan
71716671 FIAT
71719943 FIAT
737768001 HELLA
746014 VALEO
9041930F Friesen
941930 EDR
9467560280 PSA
96217914 PSA
9621791480 PSA
9635342080 PSA
9639362380 PSA
9645907780 PSA
9645907880 PSA
A004TF0091 MITSUBISHI
A004TF0091A MITSUBISHI
A14VI27 VALEO
A4TF0091 MITSUBISHI
A4TF0091B MITSUBISHI
AAN5322 MAHLE
AAN5533 MAHLE
ALT0062sa Electrolog
ALT1377sa Electrolog
ALT7222 UNIPOINT
ALTH271 UNIPOINT
CA1509IR HC
DRB1930 DELCO REMY
F032UA0049 BOSCH
F032UA0049K2F BOSCH
F042208034 BOSCH
F042A0B012 BOSCH
HCA1509IR HC
IA1244 MAHLE
KTR451044300 KTR
L41930 ATL
LEA0466 LUCAS
LRB00451 LUCAS
MG31 MAHLE
OAN11245 Optimum
SG15S016 VALEO
SG15S021 VALEO
TG15C115 VALEO

fits:

Brand Model Tipo Year Remarks
CITROEN Berlingo 2.0 HDi [RHY(DW10TD)] 01/12/99
CITROEN Berlingo 2.0 HDi 4WD [RHY(DW10TD)] 01/11/00
CITROEN Berlingo 2.0 HDi 4x4 [RFN(EW10J4)] 11.2002-10.2005
CITROEN C5 2.0 HDi [RFN(EW10J4)] 06.2001-08.2004
CITROEN C5 2.0 HDi [RHS(DW10ATED4)] 03.2001-08.2004
CITROEN C5 2.0 HDi [RHY(DW10TD)] 03.2001-08.2004
CITROEN C5 2.0 HDi [RHY(DW10TD)] 06.2001-08.2004
CITROEN C5 2.2 HDi [RHY(DW10TD)] 03.2001-08.2004
CITROEN C5 2.2 HDi [RHY(DW10TD)] 06.2001-08.2004
CITROEN C8 2.0 HDi [3FZ(EW12J4)] 01/07/02
CITROEN C8 2.0 HDi [RFR(DEW10J4)] 01/07/02
CITROEN C8 2.2 HDi [RHY(DW10TD)] 01/07/02
CITROEN Evasion 2.0 16V [4HX(DW12TED4/FAP)] 05.2000-07.2002
CITROEN Evasion 2.0 HDi [RHZ(DW10ATED)] 08.1999-07.2002 AC
CITROEN Jumper 2.0 HDi [3FZ(EW12J4)] 01/04/02
CITROEN Jumper 2.0 HDi [RFN(EW10J4)] 01/04/02
CITROEN Jumper 2.0 HDi [RFR(DEW10J4)] 01/04/02
CITROEN Jumper 2.2 HDi [4HX(DW12TED4/FAP)] 02.2002-06.2006 AC
CITROEN Jumper 2.2 HDi [4HX(DW12TED4/FAP)] 01/04/02
CITROEN Jumper 2.2 HDi [RFR(DEW10J4)] 01/04/02
CITROEN Jumper 2.2 HDi 16V [RHZ(DW10ATED)] 01/04/02
CITROEN Jumpy 2.0 [RFN(EW10J4)] 04.2000-12.2006 AC
CITROEN Jumpy 2.0 HDi [4HX(DW12TED4/FAP)] 12.2003-10.2006
CITROEN Jumpy 2.0 HDi [4HY(DW12UTED)] 01/10/99 AC
CITROEN Jumpy 2.0 HDi [RHV(DW10TD)] 01/10/99
CITROEN Jumpy 2.0 HDi [RHV(DW10TD)] 01/03/00
CITROEN Jumpy 2.0 HDi [RHW(DW10ATED4)] 01/01/02 AC
CITROEN Jumpy 2.0 HDi [RHY(DW10TD)] 01/10/99 AC
CITROEN Jumpy 2.0 HDi [RHZ(DW10ATED)] 01/03/00 AC
CITROEN Jumpy 2.0 HDi [RHZ(DW10ATED)] 01/01/02
CITROEN Jumpy 2.0 i 16V [RHV(DW10UTD)] 01/03/00 AC
CITROEN Xantia 2.0 HDi [4HY(DW12UTED)] 02.1999-04.2003 AC
CITROEN Xantia 2.0 HDi [4HY(DW12UTED)] 03.1999-04.2003 AC
CITROEN Xantia 2.0 HDi [RHV(DW10TD)] 02.1999-04.2003 AC
CITROEN Xantia 2.0 HDi [RHV(DW10UTD)] 03.1999-04.2003 AC
CITROEN Xsara 2.0 HDi 02.1999-08.2005 AC
CITROEN Xsara 2.0 HDi [RHW(DW10ATED4)] 02.1999-03.2005 AC
CITROEN Xsara 2.0 HDi [RHX(DW10BTED)] 05.2001-08.2005 AC
CITROEN Xsara 2.0 HDi [RHZ(DW10ATED)] 09.2000-03.2005
CITROEN Xsara 2.0 HDi [RHZ(DW10ATED)] 05.2001-03.2005 AC
CITROEN Xsara 2.0 HDi [RHZ(DW10BTED)] 05.2001-03.2005 AC
CITROEN Xsara 2.0 HDi [RHZ(DW10CTED)] 02.1999-03.2005 AC
CITROEN Xsara 2.0 HDI [RHW(DW10ATED4)] 09.2000-03.2005
CITROEN Xsara 2.0 HDi Picasso [RHZ(DW10BTED)] 01/12/99 AC
FIAT Ducato 2.0 JTD [RHY(DW10TD)] 01/04/02
FIAT Ducato 2.0 JTD [RHZ(DW10CTED)] 01/04/02
FIAT Ducato 2.0 JTD [WJY(DW8B)] 01/04/02
FIAT Scudo 2.0 [4HX(DW12TED4/FAP)] 01/05/00
FIAT Scudo 2.0 16V Combinato [RHY(DW10TD)] 06.2000-12.2006
FIAT Scudo 2.0 JTD [RHS(DW10ATED4)] 01/12/99 AC
FIAT Scudo 2.0 JTD [RHY(DW10TD)] 01/12/99 AC
FIAT Scudo 2.0 JTD [RHY(DW10TD)] 12.2002-12.2006
FIAT Scudo 2.0 JTD [RHY(DW10TD)] 01/12/02
FIAT Scudo 2.0 JTD 16V [RHY(DW10TD)] 05.1999-12.2006
FIAT Scudo 2.0 JTD 16V [RHZ(DW10ATED)] 05.1999-12.2006
FIAT Scudo 2.0 JTD 16V [WJZ(DW8)] 05.1999-12.2006
FIAT Scudo 2.0 JTD Combinato [4HX(DW12TED4/FAP)] 12.1999-12.2006 AC
FIAT Ulysse 2.0 [RHW(DW10ATED4)] 01/08/02
FIAT Ulysse 2.0 16V [4HW(DW12TED4)] 09.2000-08.2002
FIAT Ulysse 2.0 JTD [RHZ(DW10ATED)] 10.1999-08.2002
FIAT Ulysse 2.0 JTD 16V [RHK(DW10UTED4)] 05.1999-08.2002
PEUGEOT 206 2.0 HDi [9HY(DV6TED4)] 01/07/02
PEUGEOT 206 2.0 HDi [RHS(DW10ATED4)] 01/12/99
PEUGEOT 306 2.0 HDi [9HZ(DV6TED4)] 06.1999-05.2001
PEUGEOT 306 2.0 HDi [RHS(DW10ATED4)] 06.1999-05.2001
PEUGEOT 306 2.0 HDi [RHY(DW10TD)] 06.1999-04.2002
PEUGEOT 307 2.0 HDi [RHR(DW10BTED4)] 01/03/02
PEUGEOT 307 2.0 HDi [RHS(DW10ATED4)] 01/08/00 AC
PEUGEOT 307 2.0 HDi [RHY(DW10TD)] 01/03/02
PEUGEOT 406 2.0 16V [4HX(DW12TED4/FAP)] 01.1999-08.2000
PEUGEOT 406 2.0 16V [4HX(DW12TED4/FAP)] 10.2000-12.2004
PEUGEOT 406 2.0 16V [RHS(DW10ATED)] 10.2000-10.2004
PEUGEOT 406 2.0 16V [RHY(DW10TD)] 01.1999-10.2000
PEUGEOT 406 2.0 16V [RHZ(DW10ATED)] 01.1999-10.2000
PEUGEOT 406 2.0 16V [RHZ(DW10ATED)] 08.2000-05.2004
PEUGEOT 406 2.0 HDi [RHS(DW10ATED4)] 02.1999-04.2004 AC
PEUGEOT 406 2.0 HDi [RHW(DW10ATED4)] 02.1999-05.2004 AC
PEUGEOT 406 2.0 HDi [RHY(DW10TD)] 02.1999-10.2004 AC
PEUGEOT 406 2.0 HDi [RHZ(DW10ATED)] 06.1998-08.2001 AC
PEUGEOT 406 2.2 [RFR(DEW10J4)] 07.2000-10.2004
PEUGEOT 406 2.2 [RFR(DEW10J4)] 07.2000-05.2004
PEUGEOT 406 2.2 [RHZ(DW10ATED)] 03.2002-12.2004
PEUGEOT 406 2.2 HDi [4HX(DW12TED4/FAP)] 03.2000-10.2004
PEUGEOT 406 2.2 HDi [4HX(DW12TED4/FAP)] 03.2000-12.2004
PEUGEOT 406 2.2 HDi [RFR(DEW10J4)] 03.2000-05.2004
PEUGEOT 607 2.0 HDi [4HX(DW12TED4/FAP)] 01/05/00
PEUGEOT 607 2.2 HDi [RHM(DW10ATED4)] 01/02/00
PEUGEOT 806 2.0 HDi [RHV(DW10UTD)] 08.1999-08.2002
PEUGEOT 806 2.0 HDi 16V [RHV(DW10TD)] 08.1999-08.2002
PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 01/04/02 AC
PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 01/04/02
PEUGEOT Boxer 2.0 HDi [RHZ(DW10BTED)] 01/04/02
PEUGEOT Boxer 2.0 HDi [RHZ(DW10CTED)] 01/04/02 AC
PEUGEOT Boxer 2.2 HDi [RHV(DW10TD)] 01/04/02 AC
PEUGEOT Boxer 2.2 HDi [RHW(DW10ATED4)] 01/04/02 AC
PEUGEOT Boxer 2.2 HDi [RHX(DW10BTED)] 01/04/02 AC
PEUGEOT Expert 2.0 HDi 01/07/00
PEUGEOT Expert 2.0 HDi [4HW(DW12TED4)] 01/07/00
PEUGEOT Expert 2.0 HDi [4HX(DW12TED4/FAP)] 01/07/00
PEUGEOT Expert 2.0 HDi [RHT(DW10ATED4)] 01/07/00 AC
PEUGEOT Expert 2.0 HDi [RHV(DW10UTD)] 01/07/00
PEUGEOT Expert 2.0 HDi [RHW(DW10ATED4)] 01/07/00 AC
PEUGEOT Expert 2.0 HDi [RHZ(DW10ATED)] 01/07/00
PEUGEOT Expert 2.0 HDI [RHK(DW10UTED4)] 10.2000-10.2006
PEUGEOT Partner 1.9 D [4HY(DW12UTED)] 01/06/96
PEUGEOT Partner 1.9 D [RHY(DW10TD)] 01/06/96
PEUGEOT Partner 2.0 HDi [RHV(DW10TD)] 01/04/00
PEUGEOT Partner 2.0 HDi [RHV(DW10UTD)] 01/04/00

                        NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY
