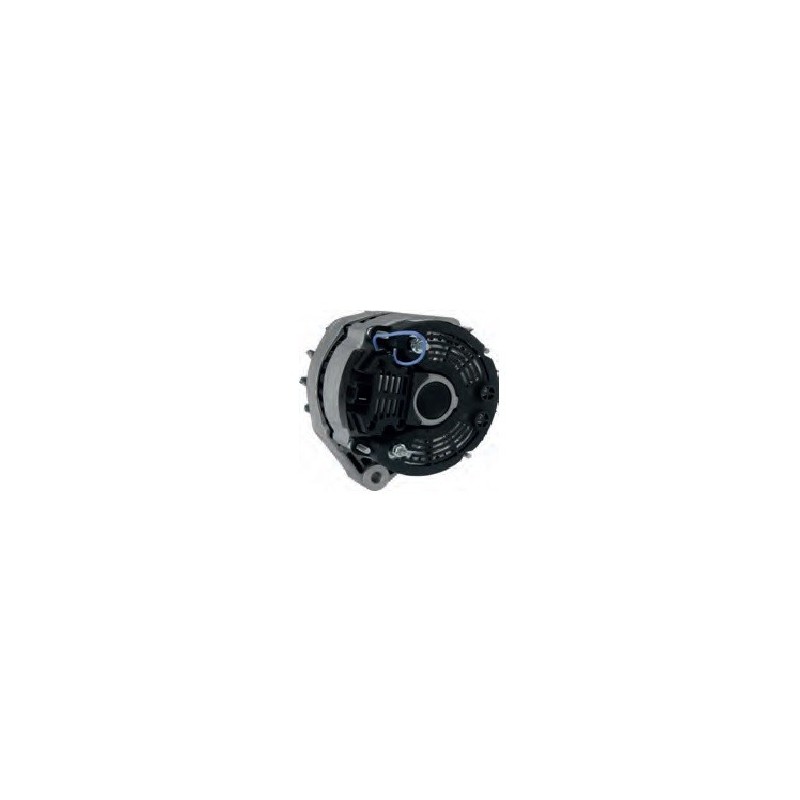

Alternator replacing VALEO A13N38 / A13R218 / 433358

Information:

Rotation Cr

Amp 55

Voltage 14

D = Bracket hole 10.50

G = Belt. adj. bracket hole 7.20

B = Width/holder arm 40.00

E = Belt. adj. brackethole pos. 53

H = Pulley dia. 67.00

A = Pulley dist. 59.50

Grooves/pulley 1

J = Radius 83.50

J = Radius 2 83.50

Position B + M6

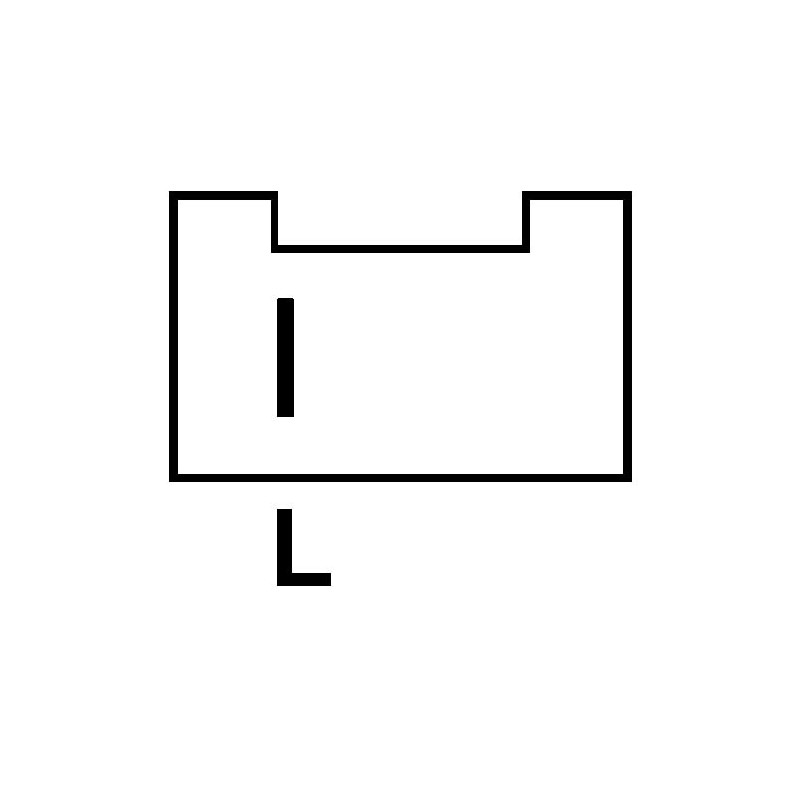

Plug no. 1 Pl26

Fan Ef

Pulley Pulley

Tipo regulator Ir

Info produit Bn

R = Total length mm 161.50

generic brand

repalcing

= 11201256 / 20140112 / 225002055 / 280694 / 3421SP

= 516026 / 516039 / 555711 / 570538 / 570584 / 5705Q0

5705Q8

= 7700349279 / 7700633709 / 7700656203 / 7701348201 / 7701499206

7701499449

= 8EL725692001 / 9031000F / 9032050F / 91515530 / 943356125

95493931 / 95495512 / 95607232 / 95619192

= 9AR2869K / 9AR5048P / 9AR5062K

= AAK4104 / AAK4105 / ALS12X28 / IA0256

= DRA1000 / DRA1001 / DRA1002 / DRA1003 / DRA2071

                     NO CORE EXCHANGE NEEDED

                                     TWO YEARS WARRANTY
