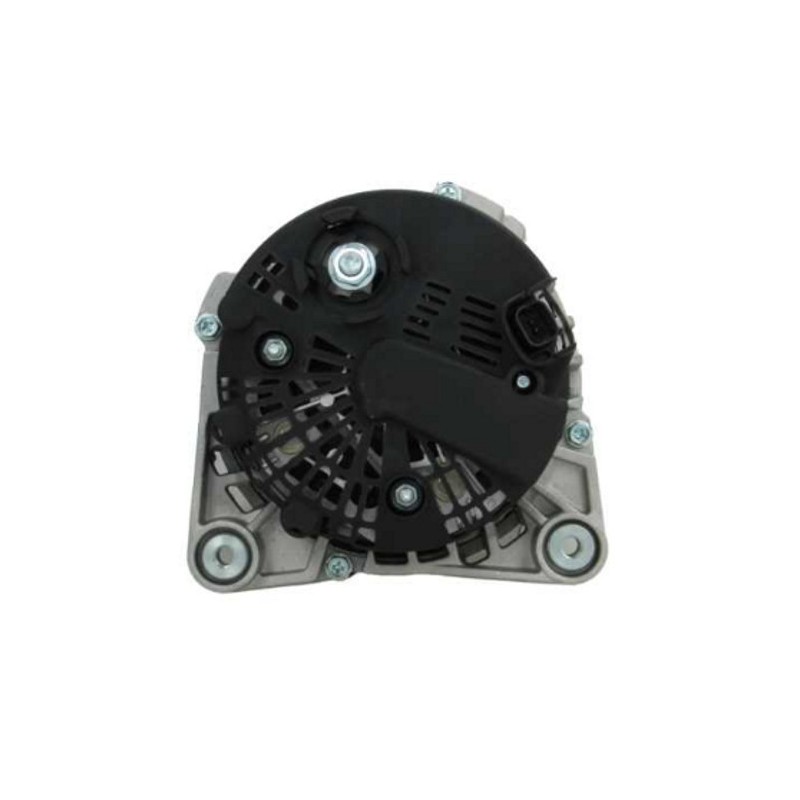

Alternator replacing VALEO SG12B095 / SG12B108 / SG12B116
Alternator NEW replacing VALEO SG12B095 / SG12B108 / SG12B116
= 0986045101 / 7701473614 / 7711134312 / 8200022774 / 8200086130 / 8200495301 / 8200538815 / DRA4148 / DRA4149
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.75 |
| G | Belt. adj. bracket hole | 8.75 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 15 |
| C | Mount. bracket dist | 60.75 |
| H | Pulley dia. | 48.70 |
| A | Pulley dist. | 36.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 91.00 |
| j | Radius 2 | 91.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |

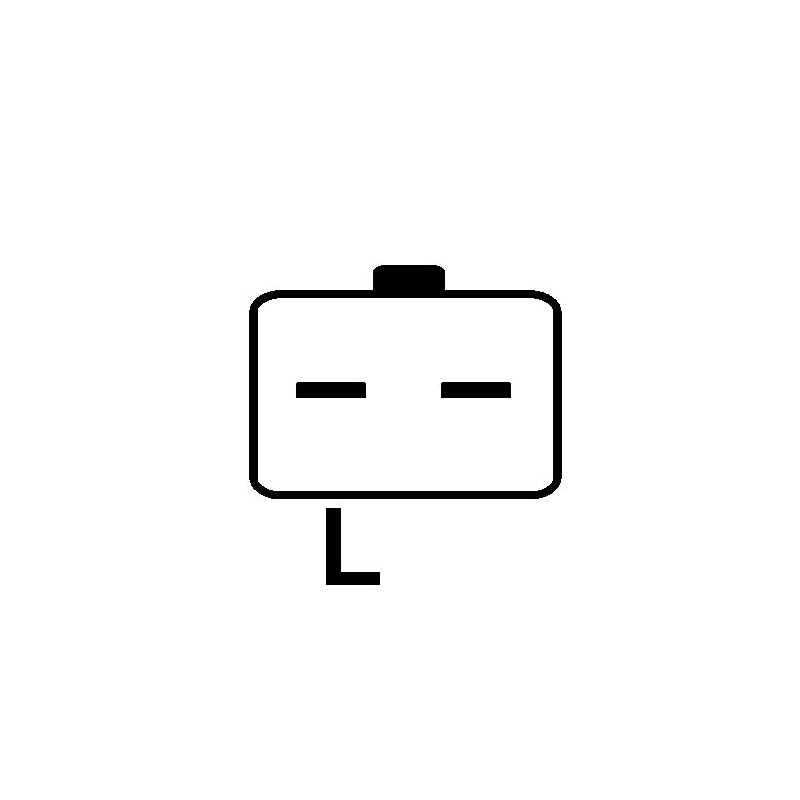

| o | Plug no. 1 | PL55 |
| R | Total length mm | 190.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Generic Brand :
= Reference
| 0986045101 |
| 113248 |
| 14201083 |
| 2310000Q0B |
| 2310000Q1A |
| 2310000QAL |
| 2310000QAU |
| 2310000QBD |
| 2310000QBG |
| 2310000QOB |
| 2310000QOE |
| 23100BN704 |
| 241058 |
| 2542470 |
| 2542523 |
| 2542523+ |
| 2542523F |
| 2542523R |
| 2543340 |
| 2543387 |
| 284614 |
| 437351 |
| 439341 |
| 4404331 |
| 4412045 |
| 5281052700 |
| 543441 |
| 575563125 |
| 575563125000 |
| 575563125005 |
| 575563125415 |
| 575563125500 |
| 575563125500001 |
| 575563125500002 |
| 575563125500003 |
| 575563125500004 |
| 575563125500101 |
| 575563125501 |
| 575563125505 |
| 575563125550 |
| 575563125551 |
| 575563125750 |
| 575563125751 |
| 6080SP |
| 6343SP |
| 746091 |
| 7701473614 |
| 7711134312 |
| 8200022774 |
| 8200086130 |
| 8200495301 |
| 8200538815 |
| 8200590255 |
| 8253980 |
| 8602356 |
| 8EL012429471 |
| 8EL737938001 |
| 8EL738211721 |
| 9090166F |
| 9090412F |
| 9112331 |
| 93191541 |
| 934148 |
| 934149 |
| 934149N |
| AAK5779 |
| CA1645IR |
| CA1881IR |
| DRA4148 |
| DRA4149 |
| HCA1645IR |
| HCA1881IR |
| J5111109 |
| LRA02160 |
| N5111116 |
| OAN10823 |
| OAN12385 |
| SG12B050 |
| SG12B050CO |
| SG12B050SP |
| SG12B095 |
| SG12B095CO |
| SG12B108 |
| SG12B108CO |
| SG12B116 |
| SG12B116CO |
| TRA156 |
fits:
| Brand | Model | Tipo | Year |
| NISSAN | Interstar 1.9 DCi | [F9Q772] | 01/07/02 |
| NISSAN | Interstar 2.2 DCi | [G9T722] | 01/07/02 |
| NISSAN | Interstar 2.5 DCi | (X70)[G9U720] | 01/11/03 |
| NISSAN | Interstar 2.5 DCi 100 | [G9U720] | 01/11/03 |
| NISSAN | Kubistar 1.5 DCi X76 | (FC08)[K9K702] | 01/08/03 |
| NISSAN | Kubistar 1.5 DCi X76 | (FC08)[K9K710] | 01/08/03 |
| NISSAN | Kubistar 1.5 DCi X76 | (FC08)[K9K718] | 01/08/03 |
| NISSAN | Kubistar 1.5 DCi X76 | (FC08)[K9K722] | 01/08/03 |
| NISSAN | Primastar 1.9 DCi | [F9Q760] | 01/03/01 |
| NISSAN | Primastar 1.9 DCi | [F9Q760] | 01/09/02 |
| NISSAN | Primastar 1.9 DCi | [F9Q762] | 01/03/01 |
| NISSAN | Primastar 1.9 DCi | [F9Q762] | 01/09/02 |
| NISSAN | Primastar 2.5 DCi | [G9U730] | 01/07/03 |
| OPEL | Movano 1.9 DTi | [F9Q774] | 01/10/01 |
| OPEL | Movano 2.2 DTi | [G9T720] | 01/09/00 |
| OPEL | Movano 2.5 Diesel | [S8U770] | 01.1999-09.2000 |
| OPEL | Movano 2.5 DTi | [G9U720] | 01/10/01 |
| OPEL | Vivaro 1.9 Diesel | [F9Q774] | 01/08/01 |
| OPEL | Vivaro 1.9 Diesel Di | [F9Q762] | 01/08/01 |
| OPEL | Vivaro 1.9 DTi | [F9Q760] | 01/08/01 |
| OPEL | Vivaro 2.0 16V | [F4720] | 01/08/01 |
| RENAULT | Clio 1.5 DCi | [K9K700] | 01/06/01 |
| RENAULT | Clio 1.5 DCi | [K9K702] | 01/06/01 |
| RENAULT | Clio 1.5 DCi | [K9K704] | 01/06/01 |
| RENAULT | Kangoo 1.5 DCi | [K9K700] | 01/12/01 |
| RENAULT | Kangoo 1.5 DCi | [K9K702] | 01/07/02 |
| RENAULT | Kangoo 1.5 DCi | [K9K704] | 01/12/01 |
| RENAULT | Kangoo 1.5 DCi | [K9K710] | 01/07/02 |
| RENAULT | Kangoo 1.5 DCi Express | [K9K700] | 01/12/01 |
| RENAULT | Kangoo 1.5 DCi Express | [K9K702] | 01/04/03 |
| RENAULT | Kangoo 1.5 DCi Express | [K9K704] | 01/12/02 |
| RENAULT | Kangoo 1.5 DCi Express | [K9K710] | 01/04/03 |
| RENAULT | Laguna 1.9 DCi | [F9Q650] | 01/03/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q670] | 01/03/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q674] | 01/03/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q718] | 09.1999-03.2001 |
| RENAULT | Laguna 1.9 DCi | [F9Q750] | 01/03/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q752] | 01/06/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q754] | 01/10/01 |
| RENAULT | Laguna 1.9 DCi | [F9Q756] | 01/03/01 |
| RENAULT | Master 1.9 DCi 80 | [F9Q772] | 01/11/01 |
| RENAULT | Master 1.9 DCi 80 | [F9Q774] | 01/11/01 |
| RENAULT | Master 2.2 DCi 90 | [G9T720] | 01/09/00 |
| RENAULT | Master 2.2 DCi 90 | [G9T722] | 01/09/00 |
| RENAULT | Master 2.2 DCi 90 | [G9T750] | 01/09/00 |
| RENAULT | Master 2.5 DCi 90 | [G9U720] | 01/10/01 |
| RENAULT | Thalia 1.5 DCi | [K9K700] | 01/04/02 |
| RENAULT | Trafic 1.9 DCi | [F9Q760] | 01/03/01 |
| RENAULT | Trafic 1.9 DCi | [F9Q762] | 01/03/01 |
| RENAULT | Trafic 1.9 DCi 100 | [F9Q760] | 01/03/01 |
| RENAULT | Trafic 1.9 DCi 80 | [F9Q762] | 01/03/01 |
| RENAULT | Trafic 2.5 DCi | [G9U730] | 01/05/03 |
| VAUXHALL | Movano 1.9 DTi | [F9Q774] | 01/10/01 |
| VAUXHALL | Movano 2.0 DTi | [G9T720] | 01/09/00 |
| VAUXHALL | Movano 2.2 DTi | [G9T720] | 01/09/00 |
| VAUXHALL | Movano 2.5 DTi | [G9U720] | 01/10/01 |
| VAUXHALL | Movano 2.5 DTi | [G9U724] | 01/10/01 |
| VAUXHALL | Movano 2.5 DTi | [G9U750] | 01/10/01 |
| VAUXHALL | Movano 2.5 DTi | [G9U754] | 01/10/01 |
| VAUXHALL | Vivaro 1.9 Diesel Di | [F9Q762] | 08.2001-12.2006 |
| VAUXHALL | Vivaro 1.9 DTi | [F9Q760] | 08.2001-12.2006 |
| VAUXHALL | Vivaro 2.0 16V | [F4720] | 08.2001-12.2006 |
| VOLVO | S40 1.9 Diesel Di | [D4192T2] | 03.1999-07.2000 |
| VOLVO | S40 1.9 Diesel Di | [D4192T3] | 07.2000-12.2003 |
| VOLVO | S40 1.9 Diesel Di | [D4192T4] | 07.2000-12.2003 |
| VOLVO | S40 1.9 TD | [D4192T] | 07.1995-08.1999 |
| VOLVO | V40 1.9 Diesel Di | [D4192T2] | 03.1999-07.2000 |
| VOLVO | V40 1.9 Diesel Di | [D4192T3] | 07.2000-06.2004 |
| VOLVO | V40 1.9 Diesel Di | [D4192T4] | 07.2000-06.2004 |
| VOLVO | V40 1.9 TD | [D4192T] | 07.1995-08.1999 |
