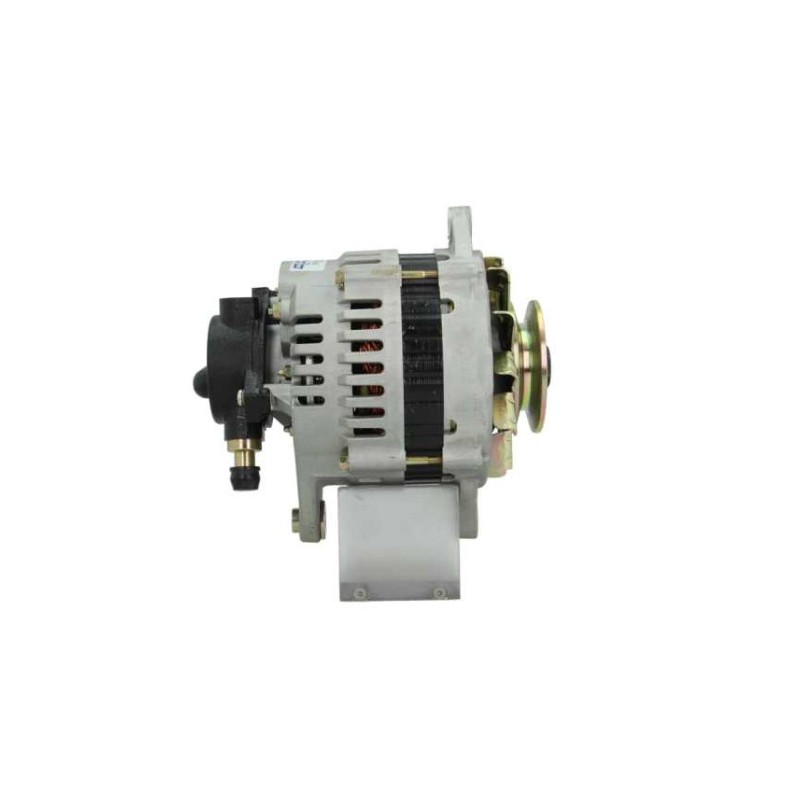

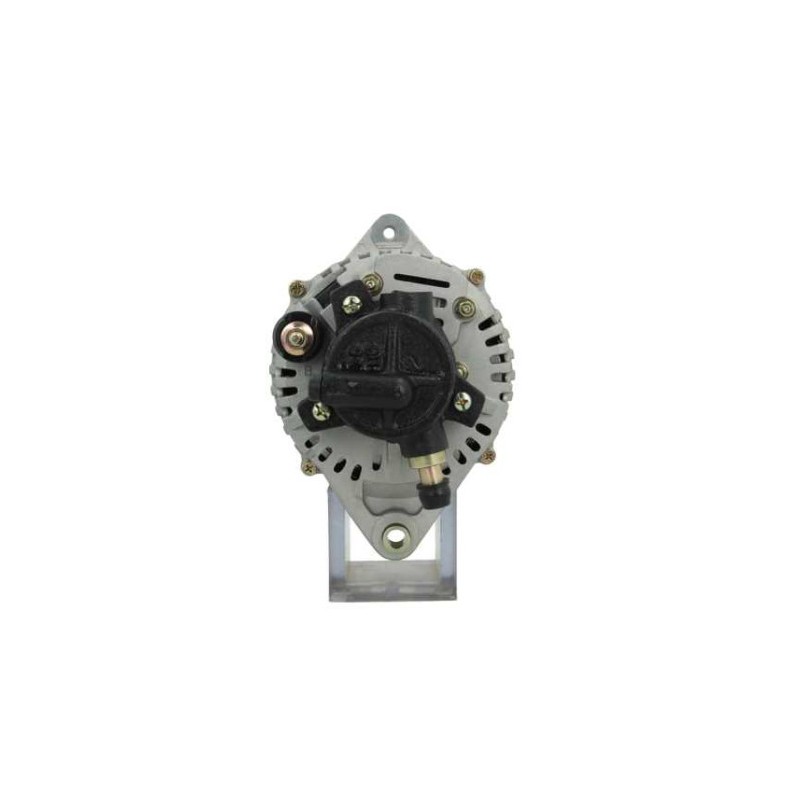

Alternator NEW replacing HITACHI LR1100-501B / LR1100-501

Information:

Voltage 14

Amp 100

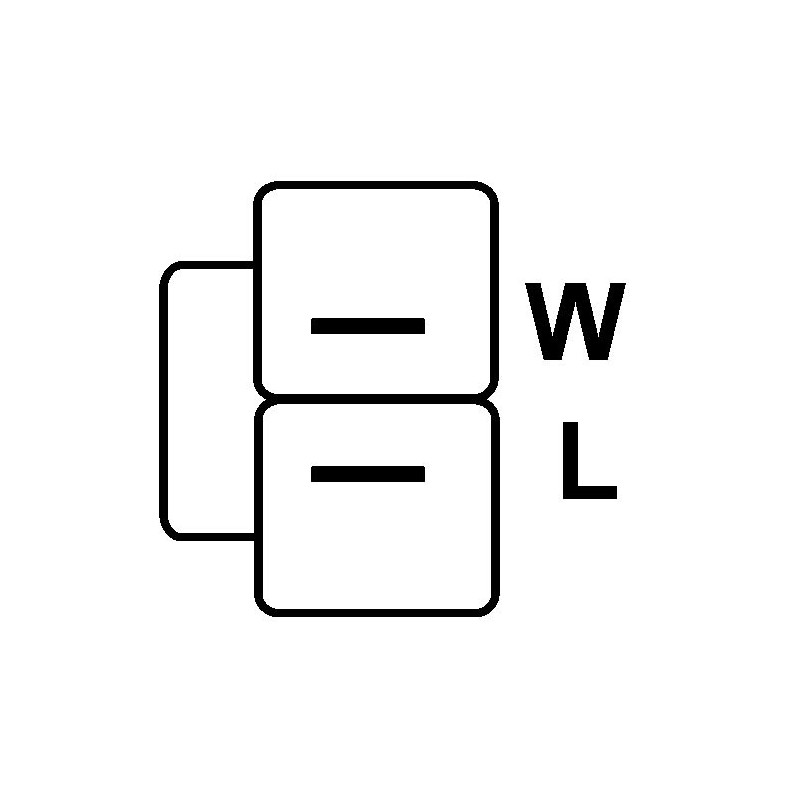

Plug type W

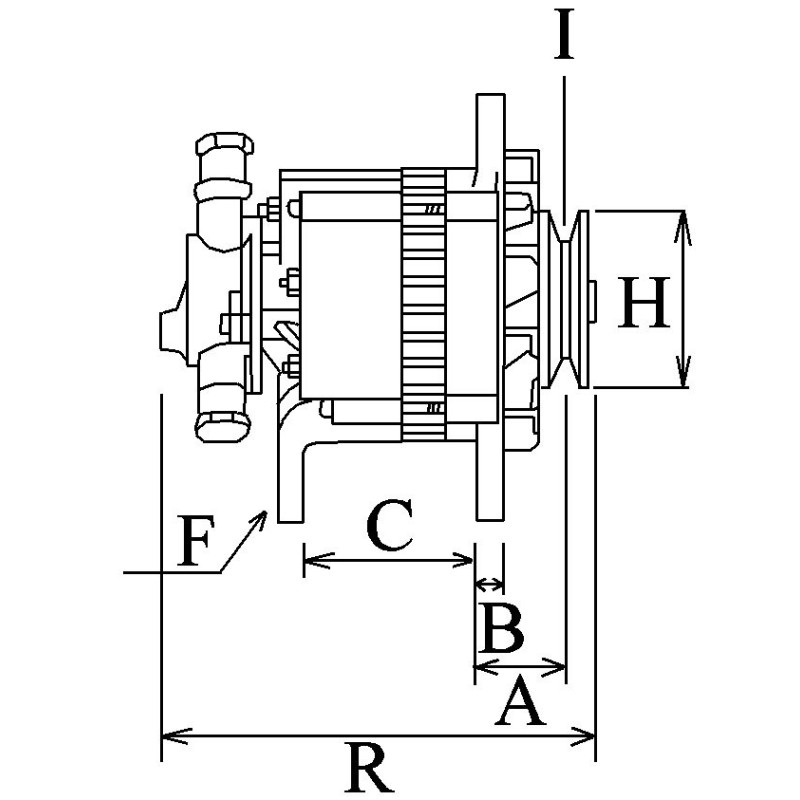

D = Bracket hole 10.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 77.00

H = Pulley dia. 80.50

A = Pulley dist. 42.00

Grooves/pulley 1

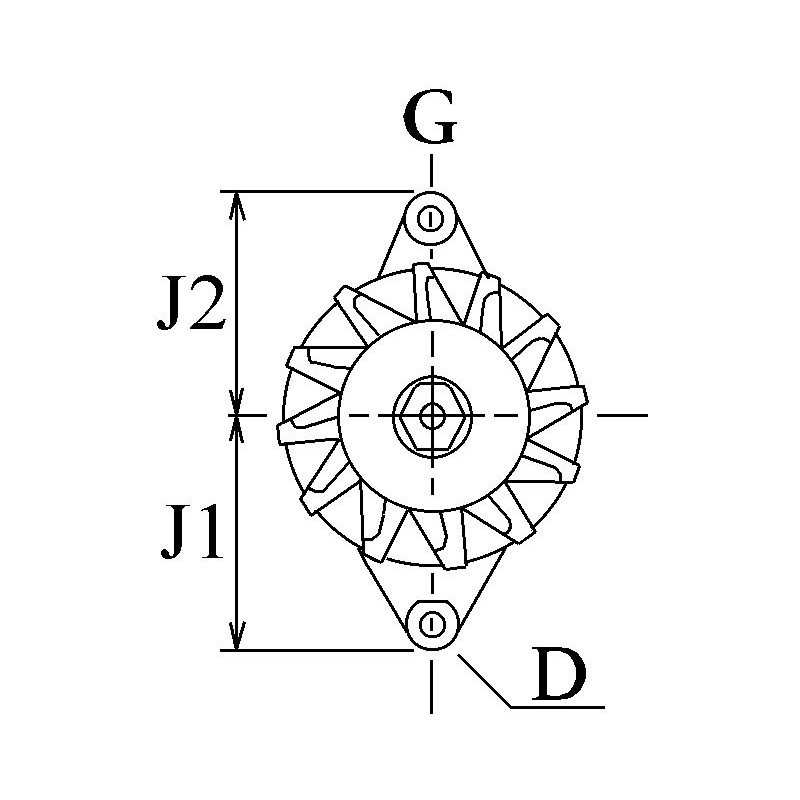

J = Radius 88.50

J = Radius 84.00

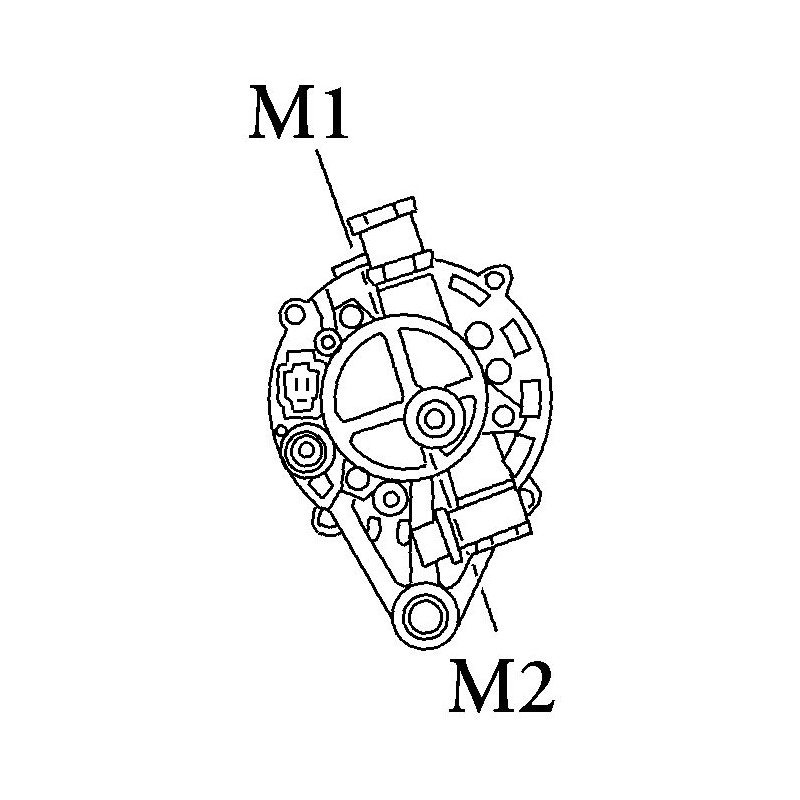

Position B + M8

Rotation Cr

Plug no. 1 PL50

Fan If

Pulley Pulley

R = Total length mm 213.00

= HITACHI LR1100-501B / LR1100-501

= ISUZU 8971502010

= OPEL 6204043 / 6204047 / 97150201

 NO CORE EXCHANGE NEEDED                                                          TWO YEARS WARRANTY
