w114411

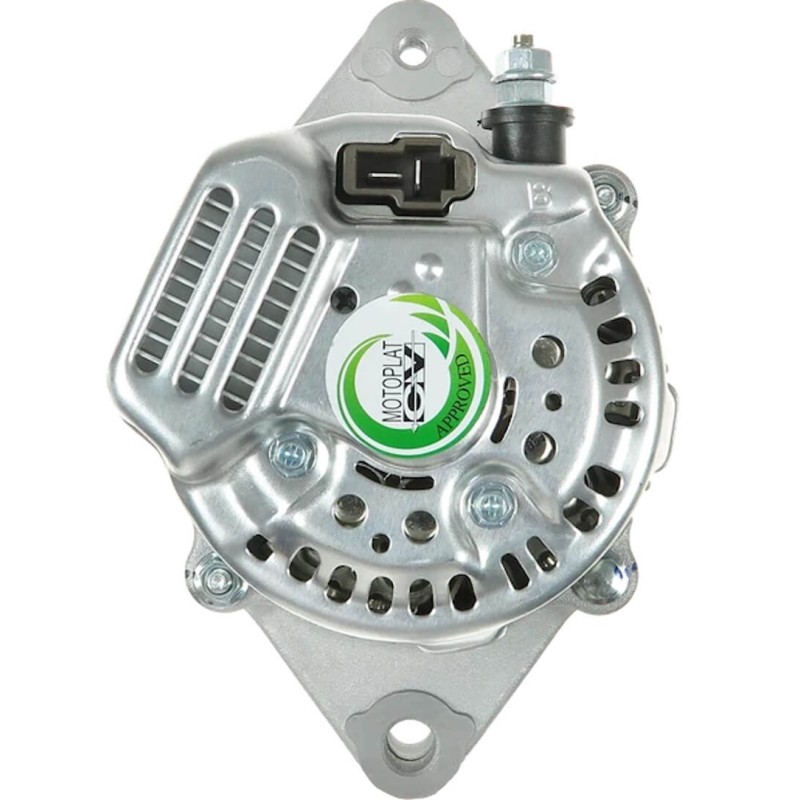

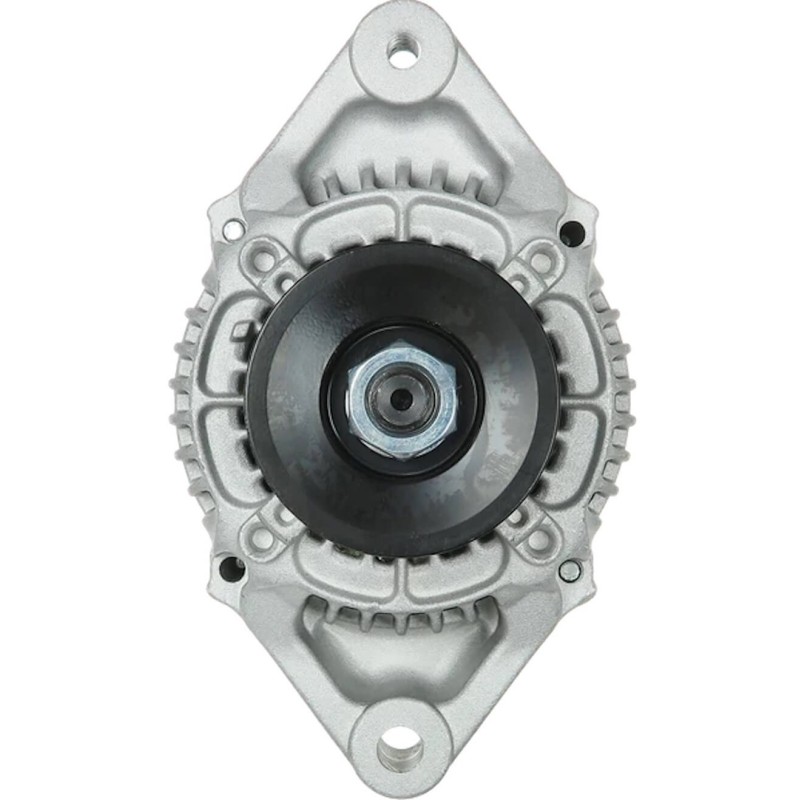

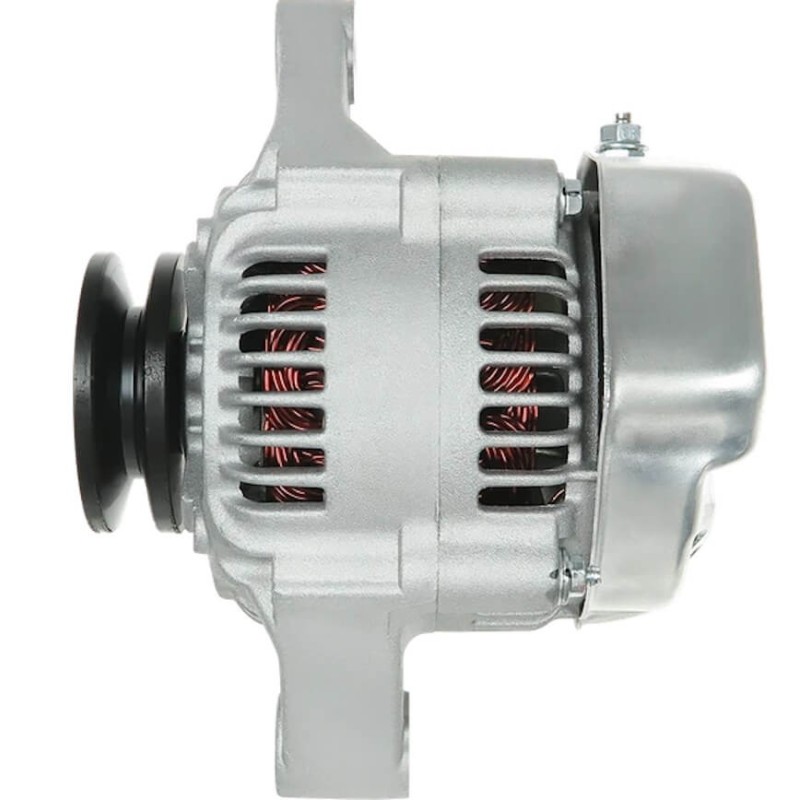

Alternator NEW for engine LOMBARDINI / on artic cat / on chatenet engine focs and progress type LDW502

also few model ligier / piaggio / kubota / daihatsu

Arctco 3206-303, ARTIC CAT 3206-303, DENSO 101211-3720, 101211-3721, 101211-3722, 101211-3723, KHOLER 17580-64010, KUBOTA 1758064010, LOMBARDINI 1157326

Read more
€108.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

101211-3720 DENSO
101211-3721 DENSO
101211-3722 DENSO
101211-3723 DENSO
1157326 LOMBARDINI
1758064010 KUBOTA
28-6856 ELSTOCK
UD19430A AS-PL
ALTS159 3EFFE
ALTS159R 3EFFE
ALTS159U 3EFFE
PRAS159 3EFFE
PRAS159U 3EFFE
114411 CARGO
9338 CEVAM
DAN1067 DENSO
146-06129 DIXIE
57748 EAI
209442 ERA
AG0326 GHIBAUDI
GAAN1067-A GPARTS
ALN4411 KRAUF
553143RI KUHNER
553143RID KUHNER
LRA03746 LUCAS
LRA3746 LUCAS
063377575010 MAGNETI MARELLI
MAN7575 MAGNETI MARELLI
115.512.040.050 PSH
115.512.040.260 PSH
115.512.040.415 PSH
115.512.040.785 PSH
115.512.040.786 PSH
290-10393 ROBERT'S
ALT421280 SIOM
ALT421280A SIOM
13127N WAI / TRANSPO
70-29-13127 WILSON
ALT30587 WOODAUTO
89214899 POWERMAX
021080-0890 DENSO
8EL012240-721 HELLA
J5116010 HERTH+BUSS
446167 LOGISTIK
A12DE1224A2 SIDAT
ALT6677 ELECTROLOG
A6163S AS-PL
F032114411 CARGO
JFZ155A LOMBARDINI
1157397 LOMBARDINI
A130.015 PSH
A146.734 PSH

Features

Information:

Rotation Cr

Amp 40 - Voltage 14

Physical Information
D Bracket hole 10.00
G Belt. adj. bracket hole M8
B Width/holder arm 29.00
H Pulley dia. 63.00
A Pulley dist. 61.20
i Grooves/pulley 1
j Radius 78.00
j Radius 2 78.00
k Position B + M6
n Rotation Cr

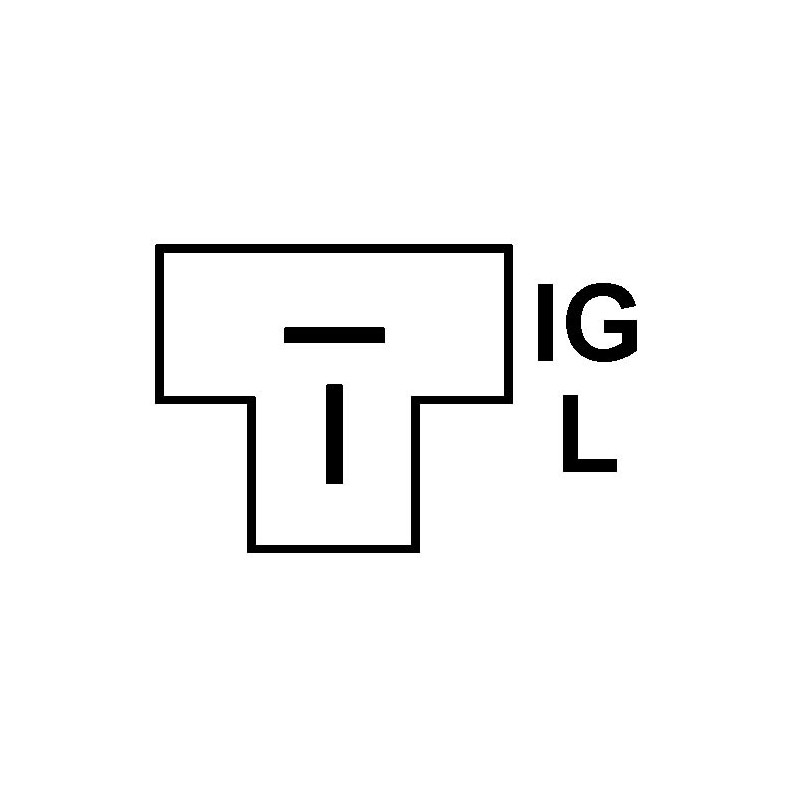

o Plug no. 1 PL10
G Belt. adj. bracket hole 2 2 60
R Total length mm 141.00

generic brand

TWO YEARS WARRANTY
