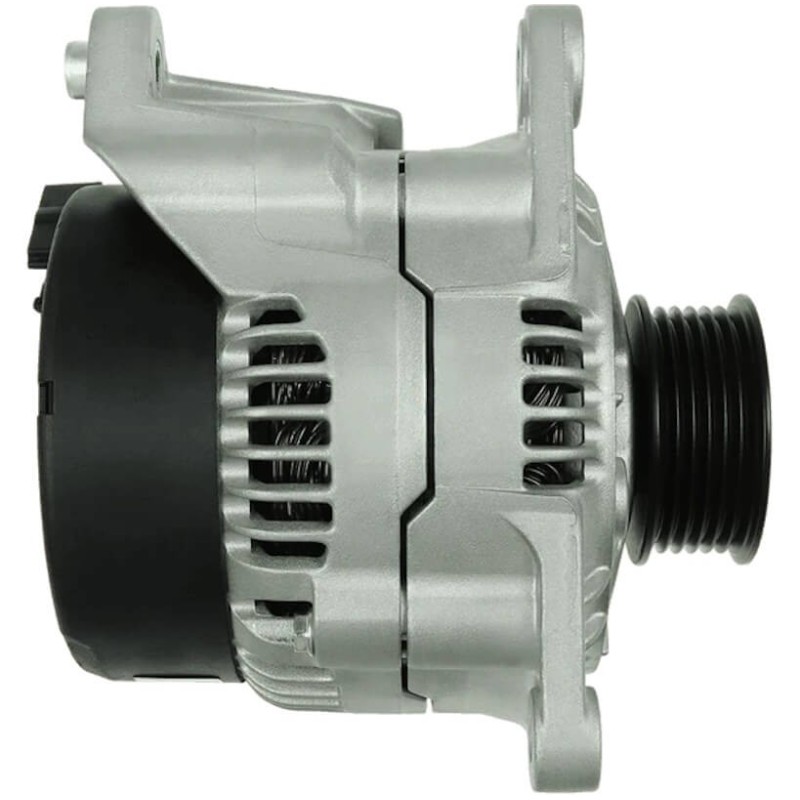

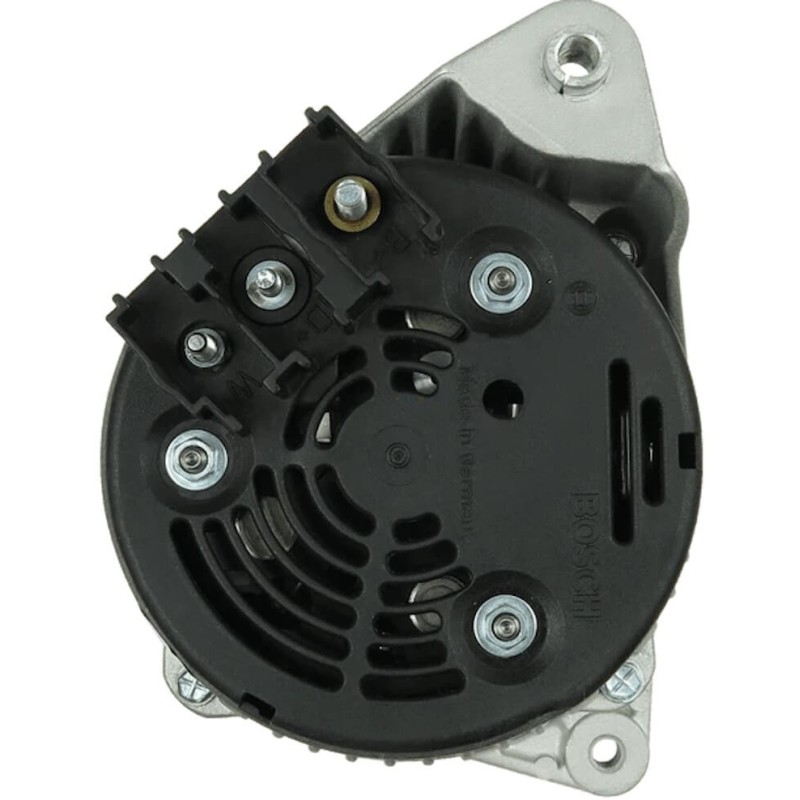

Alternator replacing BOSCH 0123310014 / 0120485029 / 0986036690

Information:

Voltage 14

 Amp 70

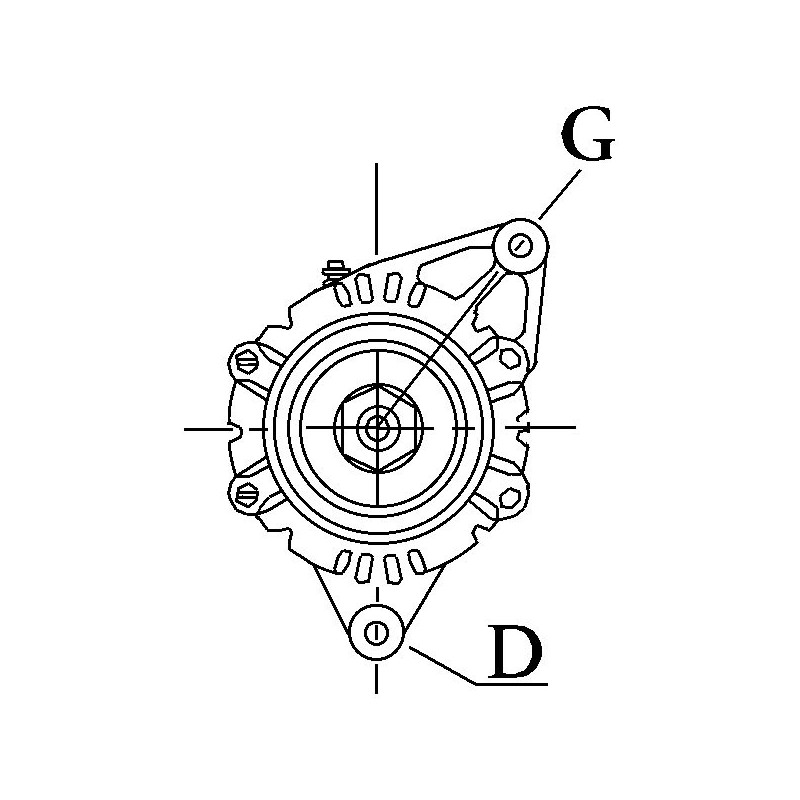

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 80.00

H = Pulley dia. 55.00

A = Pulley dist. 33.00

Grooves/pulley 6

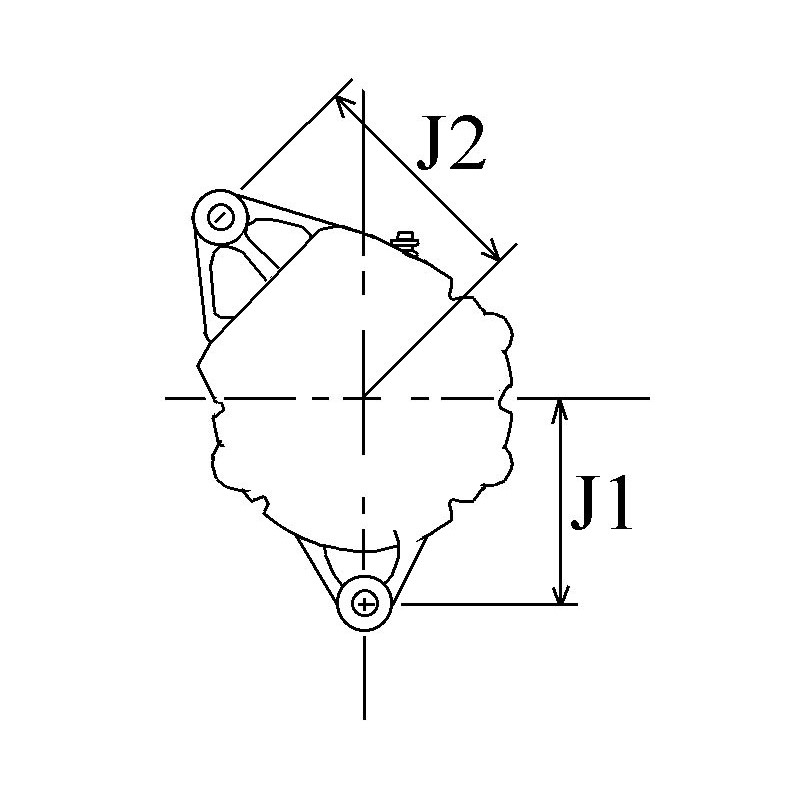

J = Radius 86.20

J = Radius 86.90

Position B + M6

Rotation Cr

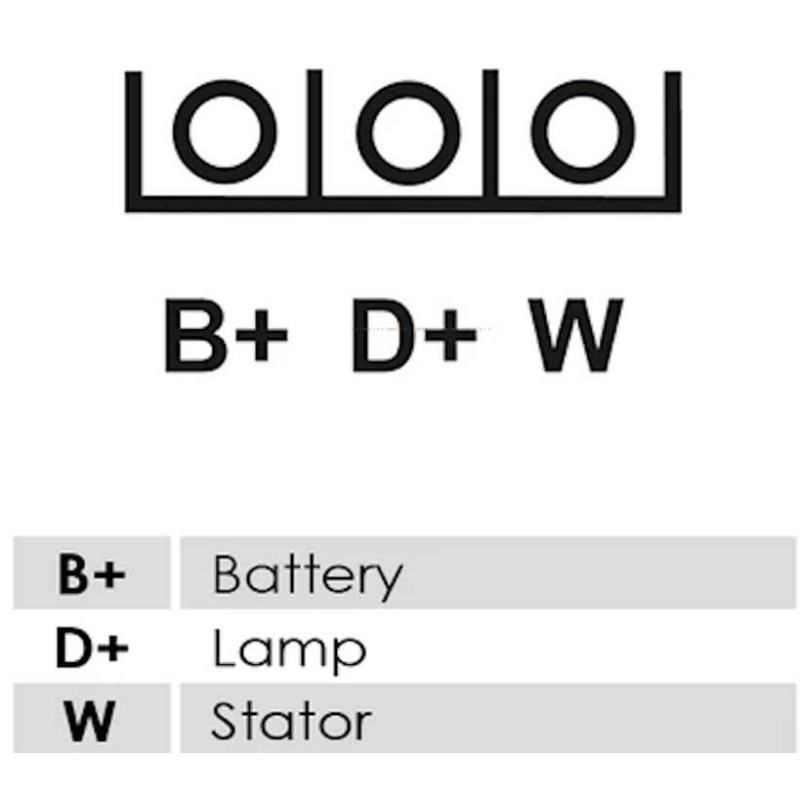

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

R = Total length mm 172.00

generic brand

replacing

= BOSCH 0123310014 / 0120485029

= ISKRA 11.201.993 / AAK5302

= FORD 7275999 / 91ab10300sa / 92AB10300DC / 92ab10300dd / 92ab10300fa

92ab10300fb / 92fb10300fb

                                               TWO YEARS WARRANTY
