Alternator replacing DENSO 121000-3523 / 121000-3521 / 121000-3520

w13593n

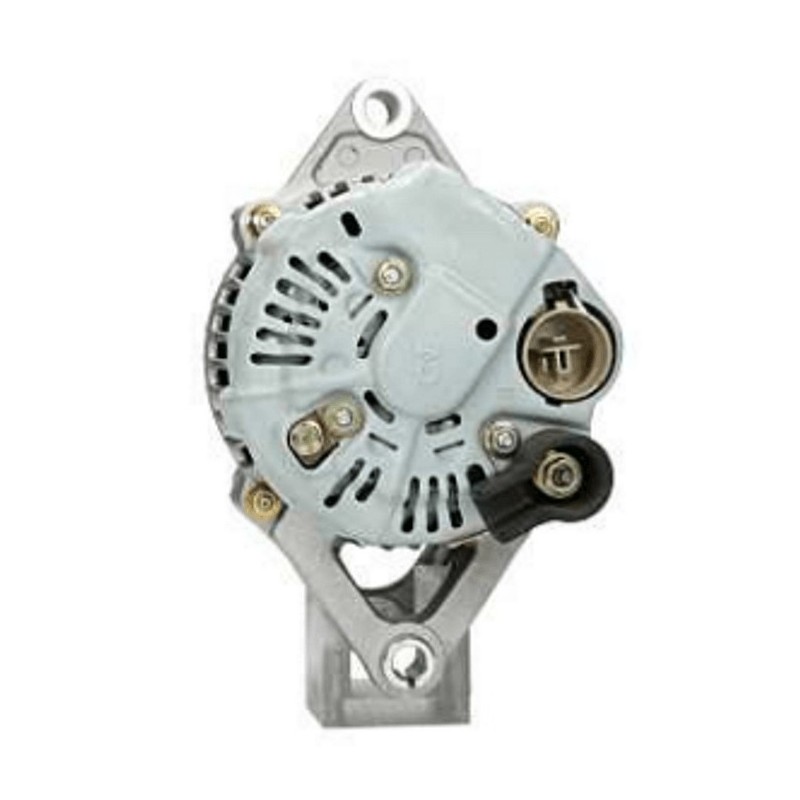

Alternator NEW for CHRYSLER voyager

CHRYSLER : 4686098 / 4727220 / 38522261 / 38522261F

DENSO : 121000-3520 / 121000-3521 / 121000-3523 / 121000-3660

Voltage 14 - Amp 90

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Read more
€149.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Références

0986081280 BOSCH
1-2073-01ND WAI / TRANSPO
11.1706 LAUBER
11.1706M LAUBER
112583 CARGO
121000-3520 DENSO
121000-3521 DENSO
121000-3523 DENSO
121000-3660 DENSO
13593N WAI / TRANSPO
20132312BN REAL
2040213 SANDO
27-3998 ELSTOCK
401706 KUHNER
4686098 CHRYSLER
4727220 CHRYSLER
57052 EAI
89213158 POWERMAX
9090667 FRIESEN
9213158 POWERMAX
A6097 AS-PL
AEB1706 AUTOELECTRO
ALT422130 SIOM
ALT5204 WOODAUTO
ALTL572 3EFFE
CAL40213AS CASCO
DRA0279 DELCO
JA1706 HC PARTS
JA1706IR HC PARTS
LRA01151 LUCAS
LRA1151 LUCAS
447045 LOGISTIK
ANM32499X ANDEL
ALT6603 ELECTROLOG
38522261 CHRYSLER
38522261F CHRYSLER
4686099 CHRYSLER
4727221 CHRYSLER
4727325 CHRYSLER
STX100194 STARDAX
STX100194R STARDAX
STX100801 STARDAX
STX100801R STARDAX
F032112583 CARGO

Features

Information:

Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole 11.50
B Width/holder arm 12.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist 54.00
H Pulley dia. 64.50
A Pulley dist. 33.50
I Grooves/pulley 6
J Radius 97.60
J Radius 2 88.25
K Position B + M6
N Rotation Cr

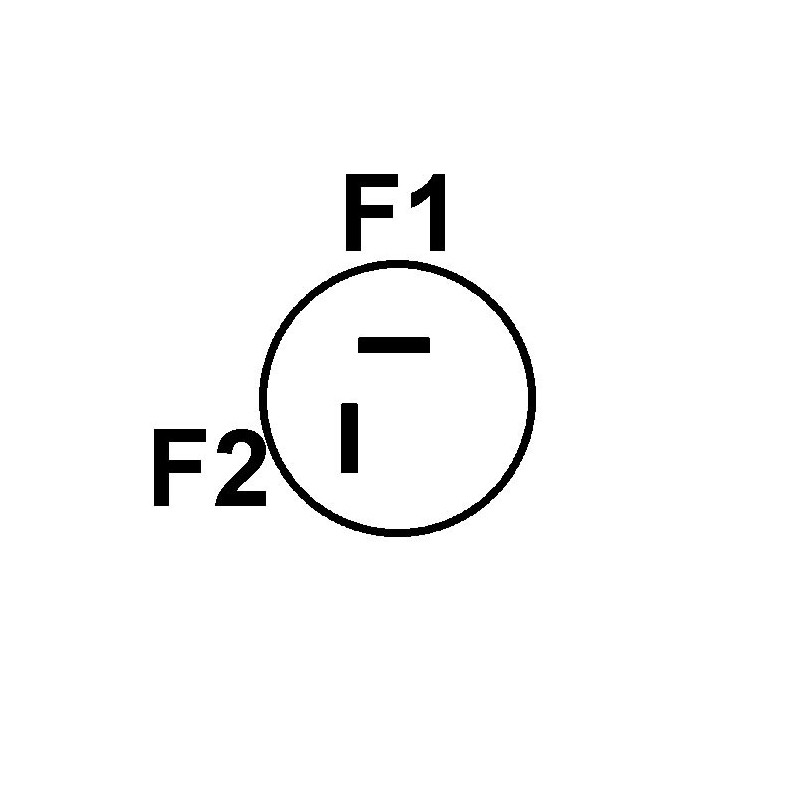

O Plug no. 1 PL93
R Total length mm 184.00
Replacing
113311 CARGO
0986081200 BOSCH
0986081280 BOSCH
121000-3520 DENSO
1207301ND2 DENSO
121000-3521 DENSO
121000-3660 DENSO
121000-3523 DENSO
4686098 CHRYSLER
4727220 CHRYSLER
38522261 CHRYSLER
38522261F CHRYSLER
ja1706 HC-PARTS
8EL738045001 HELLA

4686098 / 4686099 /  4727221 / 4727325

generic brand

fits:

Reference d origine du produit Typ of Gas Start build End built Typ engine Engine Typ KW Horse Power Chassi type Type modèle Engine in cm3 Cylindres Descrip- tion du type from
Voyager 2.4 Unleaded 1995 01 2001 03 B00 i 111 151 MPV 2429 4
Voyager 3.8 Unleaded 1995 01 2001 03 L00 i 122 166 MPV AWD 3778 6
Voyager 3.3 Unleaded 1995 01 2001 03 R00 i 116 158 MPV 3301 6
Voyager 3.8 Unleaded 1995 01 2001 03 EGH i 131 178 MPV AWD 3778 6
Voyager 3.0 Unleaded 1995 01 2001 03 EFA 112 152 MPV 2972 6

Mounting on

Brand Model Typ Year
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) 2.4 AWD EDZ 02.1997 - 03.2001
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) 2.4 i B00 01.1995 - 03.2001
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) 3.0 EFA 01.1995 - 03.2001
CHRYSLER VOYAGER IV (RG, RS) 3.0 EFA 09.1999 - 12.2000
CHRYSLER VOYAGER / GRAND VOYAGER III (GS_, NS_) 3.8 EGH 10.1997 - 09.2000
DODGE CARAVAN 3.0 EFA 01.1995 - 06.2000
PLYMOUTH Voyager 3.3 Flex-Fuel   01.1998 - 03.2001
