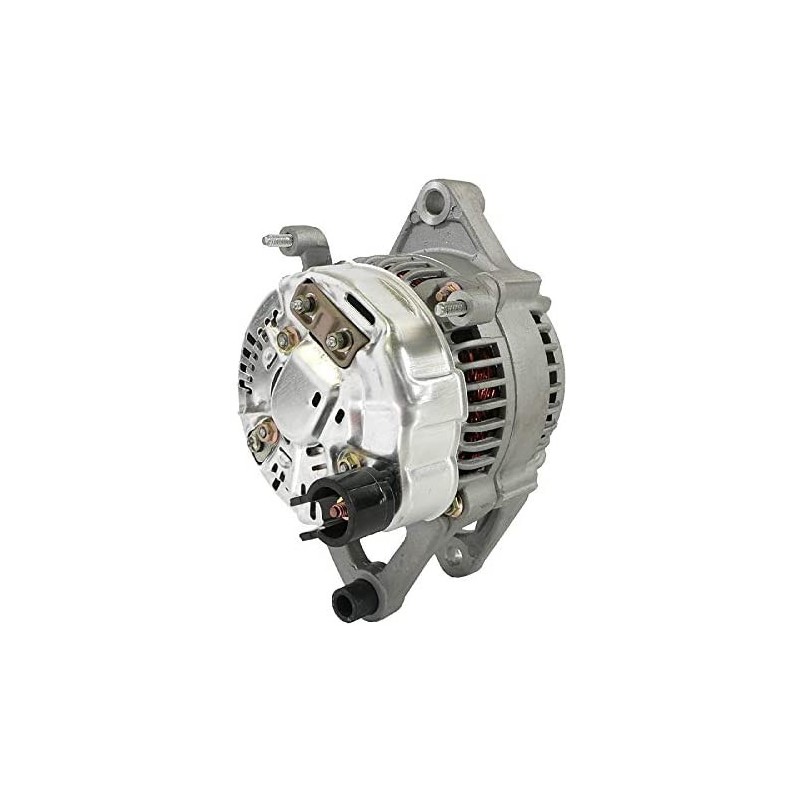

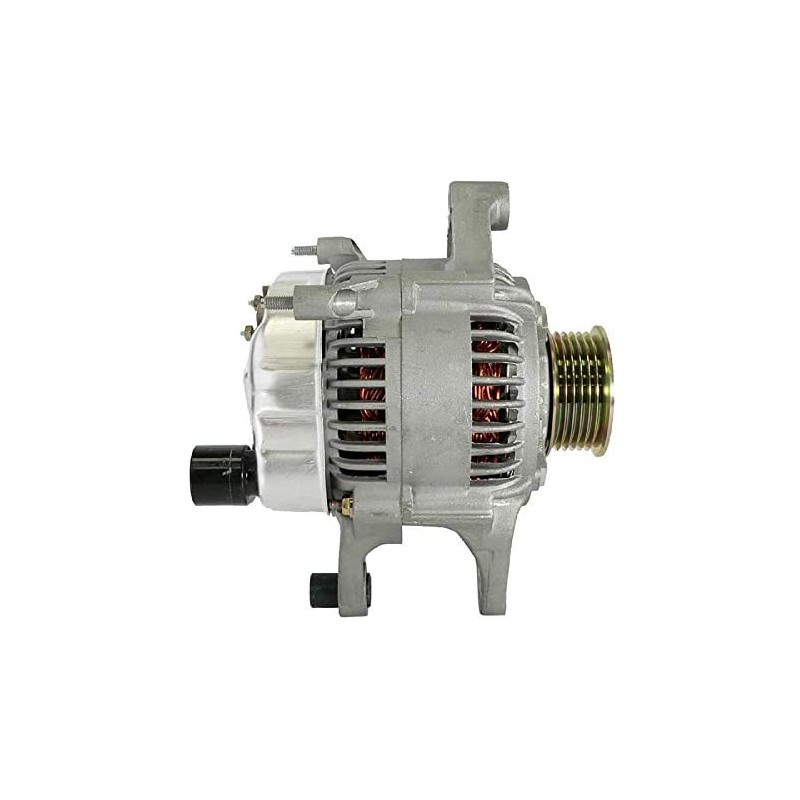

Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Previous
Next
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450
Alternator replacing DENSO 121000-3452 / 121000-3450

Alternator replacing DENSO 121000-3452 / 121000-3450

w113063

0986080630

Bosch Exchange

0986CN0256

Bosch Exchange

0986CN0258

Bosch Exchange

0986CR0256

Bosch Exchange

0986CR0260

Bosch Exchange

0986UR0256

Bosch Exchange

0986UR0260

Bosch Exchange

Read more
€129.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14, Amp 90

Physical Information
D Bracket hole 10.50
G Belt. adj. bracket hole 11.70
B Width/holder arm 14.30
E Belt. adj. brackethole pos. 60
C Mount. bracket dist 54.00
H Pulley dia. 57.20
A Pulley dist. 34.00
i Grooves/pulley 6
j Radius 96.00
j Radius 2 87.00
k Position B + M6
n Rotation Cr
o Plug no. 1 PL_NA
R Total length mm 185.00

generic brand

replacing

04557301

Chrysler

051071

Da Silva

0986080630

Bosch Exchange

0986CN0256

Bosch Exchange

0986CN0258

Bosch Exchange

0986CR0256

Bosch Exchange

0986CR0260

Bosch Exchange

0986UR0256

Bosch Exchange

0986UR0260

Bosch Exchange

113053

RNL

113055

Cargo

113063

Cargo

1150300ND

WAI old

1150302ND

WAI old

1150306ND

WAI old

1210003000

Denso

1210003310

Denso

121000333

Denso

1210003330

Denso

1210003370

Denso

121000338

Denso

1210003380

Denso

1210003380SEL

+line

1210003390

Denso

1210003400

Denso

1210003450

Denso

1210003452

Denso

1210003470

Denso

1210003471

Denso

121000353

Denso

1210003530

Denso

1210003531

Denso

1210003600

Denso

13245

Lester

13245N

WAI

13245N0G

WAI

13245R

WAI

13256

RNL

13256N

WAI

13306N

WAI

13307

RNL

13307N

WAI

13312

Lester

13312N

WAI

13341N

WAI

13341R

WAI

13354

Lester

13354N

WAI

20132168

Real

20132169

Real

272569

Elstock

273600

Elstock

273603

Elstock

273716

Elstock

290236A

PIC

290269

PIC

290275C

PIC

290275D

PIC

437751

Valeo

442776

Alanko

500045902

DRI

50960

DAS

5225200

Chrysler

5227100

Chrysler

5233472

Chrysler

5233474

Chrysler

5233672

Chrysler

5234027

Chrysler

5234028

Chrysler

5234029

Chrysler

5234032

Chrysler

53008647

Chrysler

534020902

DRI

5532SP

Spidan

56005684

Chrysler

56005685

Chrysler

56005685AB

Chrysler

56027912

Chrysler

835510090

PSH

89213562

Power Max

8EL732747001

Hella

90295092

Wilson

90295110

Wilson

90295122

Wilson

9090081

Friesen

9090081F

Friesen

933788

EDR

9712109333

Denso

9712109338

Denso

A135906

Short code

A151475

Short code

A157980

Short code

A6093

AS-PL

A6355

AS-PL

A6597S

AS-PL

A6614S

AS-PL

A8697

Dixie

AA6865

Auto Charge

AA7140

Auto Charge

ADE1110

Everkraft

ADE1159

Everkraft

AL581X

Bosch (USA)

AL6505X

Bosch (USA)

AL6506X

Bosch (USA)

AL6509N

Bosch (USA)

AL6509X

Bosch (USA)

AL6511X

Bosch (USA)

ALT30315

Wood Auto

ALT30392

Wood Auto

ALT30394

Wood Auto

ALT30396

Wood Auto

ALT30397

Wood Auto

ALT30398

Wood Auto

ALT30399

Wood Auto

ALT5045A

Unipoint

ALT5046

Unipoint

ALT5047A

Unipoint

ALT5066

Unipoint

ALT6084sa

Electrolog

AVE3062

Everkraft

DRA3788

Remy

DRZ0185

Remy

F042302031

Bosch

F042302057

Bosch

HUA960IR

HC-Parts

IR6852

Protech

KTR1671020180

KTR

L69450

ATL

LRA01132

Lucas

LRA01139

Lucas

LRA1132

Lucas

LRA1139

Lucas

LRB00239

Lucas

RNL3400ND

RNL

RNL3450ND

RNL

RNL3470ND

RNL

UA956

HC-Parts

UA960

HC-Parts

UA960IR

HC-Parts

VLN99957

ADI
