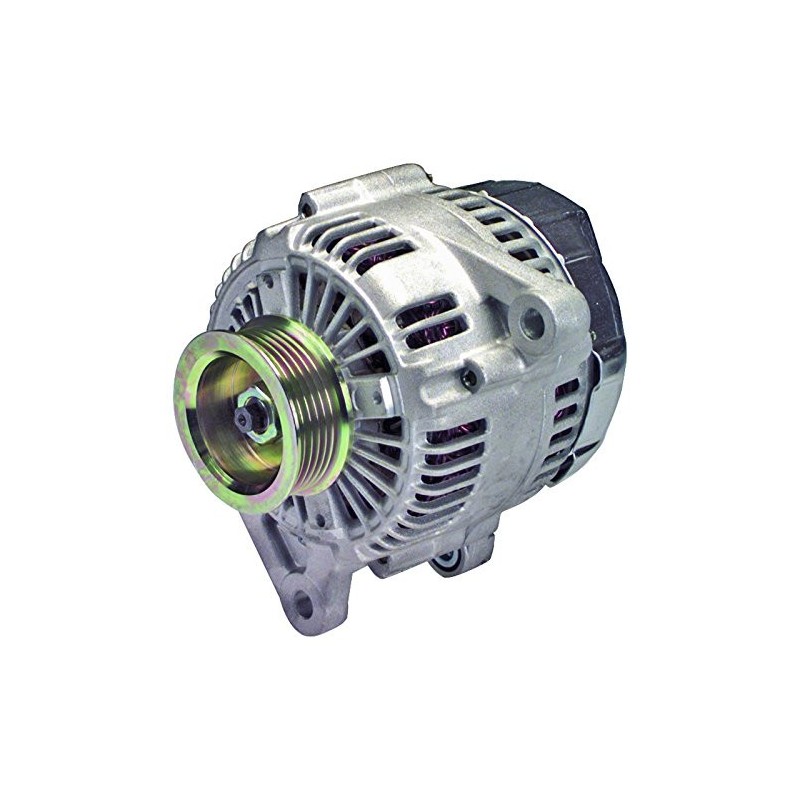

Alternator replacing 121000-4231 / 121000-4232 / 121000-4233
Alternator replacing
CHRYSLER 04609999AB, 04609999AB2, 4609999, 4609999AB, DENSO 121000-4231, 121000-4232, 121000-4233
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 120 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | 11.00 |
| B | Width/holder arm | 12.00 |
| E | Belt. adj. brackethole pos. | 10 |
| C | Mount. bracket dist | 68.00 |
| H | Pulley dia. | 64.80 |
| A | Pulley dist. | 26.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 89.00 |
| j | Radius 2 | 91.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

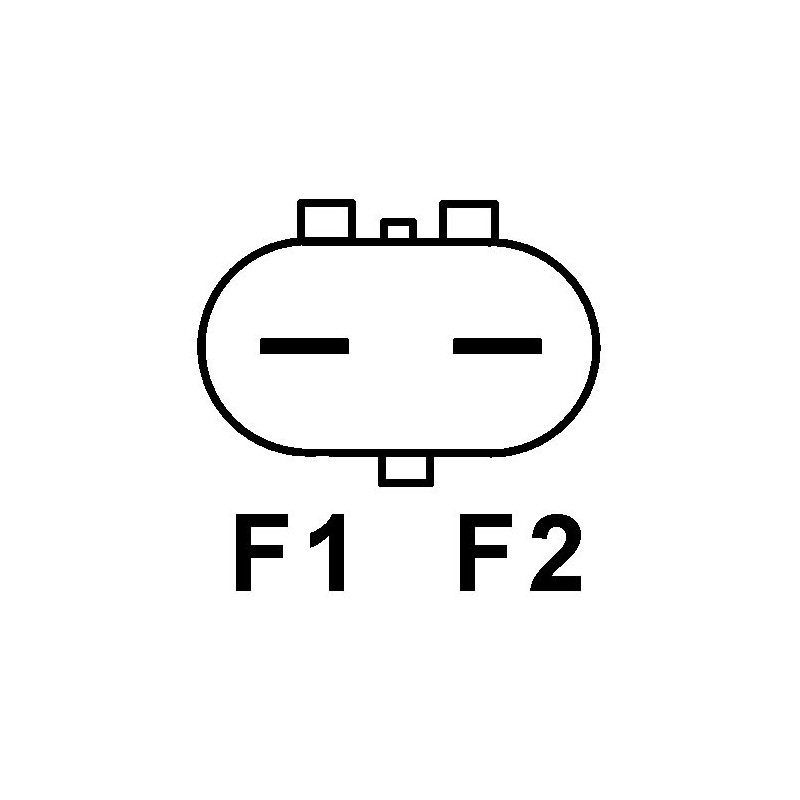

| o | Plug no. 1 | PL135 |
| R | Total length mm | 170.50 |
More information | ||
|---|---|---|
| Fan | If | |
| Pulley | Serpentine Pulley | |
| Tipo regulator | Ir | |
| Vaccum pump | Without | |
generic brand
Replacing | |
|---|---|
| 121000-4230 | DENSO |
| 121000-4231 | DENSO |
| 121000-4232 | DENSO |
| 121000-4233 | DENSO |
| 4609999 | CHRYSLER |
| 4609999AB | CHRYSLER |
LRA03594 / ALT6210 / 90295355
fits:
| Model | Litre | Tipo of Gas | Start build | Tipo engine | KW | Cylindré en cm3 | Cylindres |
| Intrepid | 2.7 | Unleaded | 1999 01 | EER | 0 | 2700 | 6 |
| Intrepid | 2.7 | Unleaded | 1998 01 | EER | 0 | 2700 | 6 |
| Intrepid | 2.7 | Unleaded | 2001 01 | EER | 0 | 2700 | 6 |
| Intrepid | 2.7 | Unleaded | 2003 01 | 0 | 2700 | 6 | |
| Intrepid | 2.7 | Unleaded | 2000 01 | EER | 0 | 2700 | 6 |
