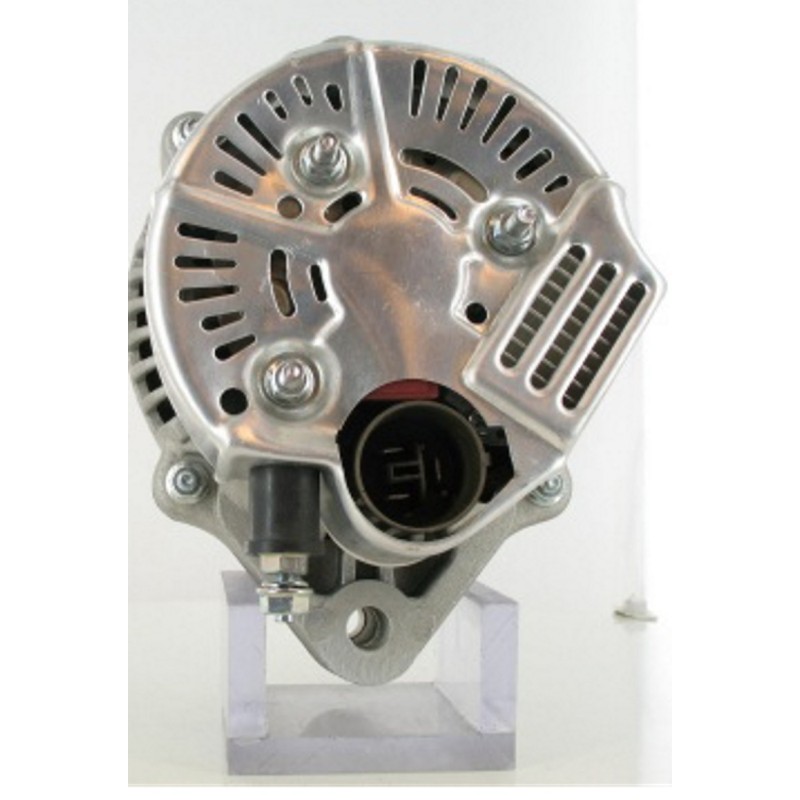

Alternator replacing DENSO 100211-9730 / 100211-9731 / 100211-9732
Alternator NEW for ISUZU
= BOSCH 0986044981
= ISUZU 8970348990 / 8971211800 / 8970348991
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 57.80 |
| E | Belt. adj. brackethole pos. | 60 |
| H | Pulley dia. | 49.50 |
| A | Pulley dist. | 91.20 |
| i | Grooves/pulley | 4 |
| j | Radius | 80.25 |
| j | Radius 2 | 84.50 |
| k | Position B + | M6 |
| n | Rotation | Cr |

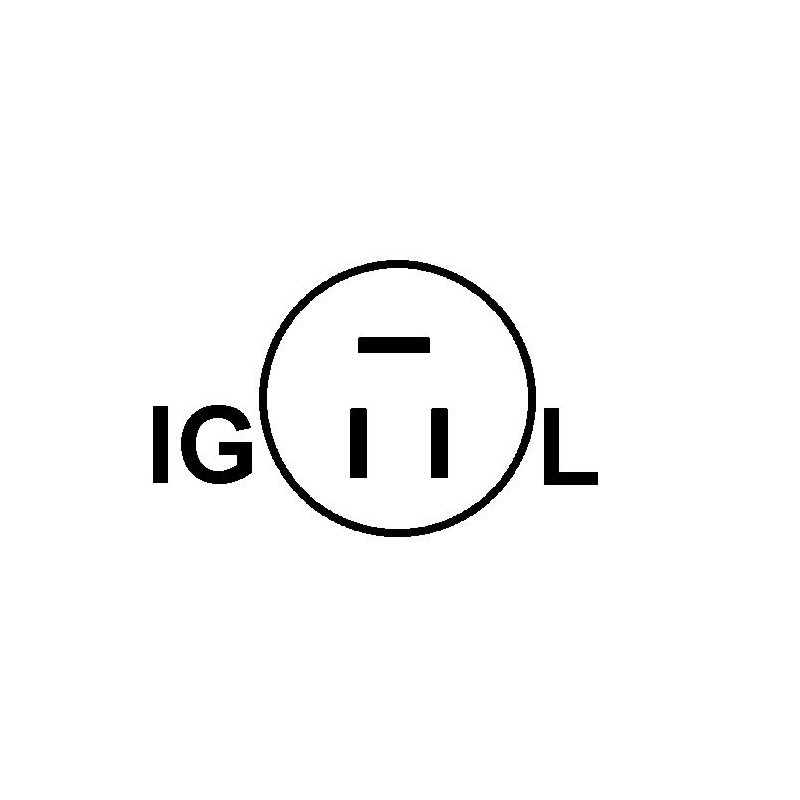

| o | Plug no. 1 | PL11 |
| R | Total length mm | 155.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |
Generic brand
= Reference :
| 029730 |
| 0986044981 |
| 1002110830 |
| 1002119730 |
| 1002119731 |
| 1002119732 |
| 1012110830 |
| 113076 |
| 1188301ND |
| 1204125 |
| 13521 |
| 135557075 |
| 283564 |
| 290384 |
| 8970348990 |
| 8971211800 |
| 90295204 |
| 9044981F |
| 934085 |
| ALT5052 |
| DRA4085 |
| LRA1766 |
