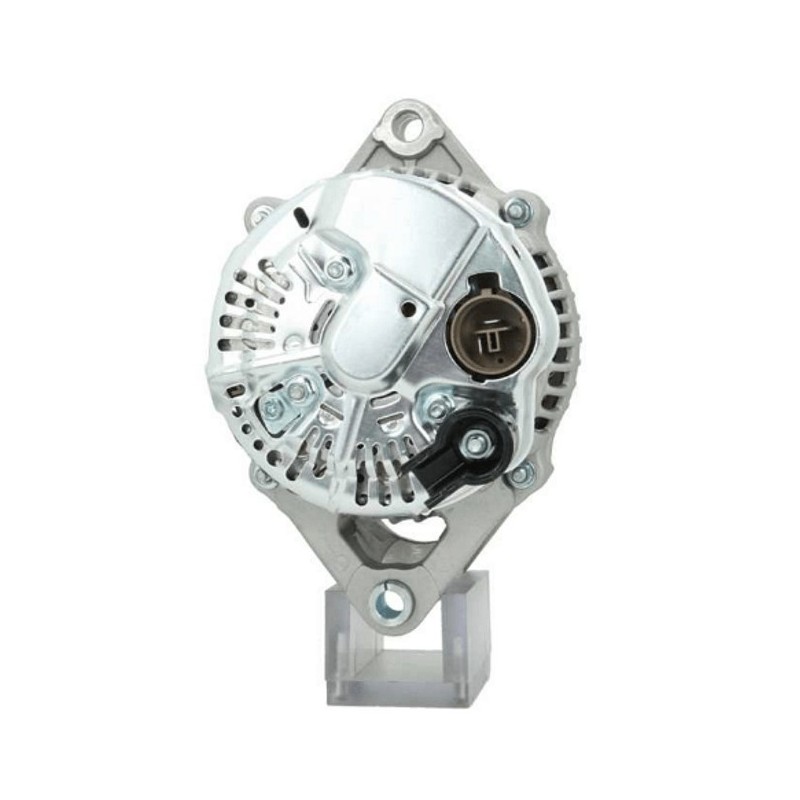

Alternator replacing DENSO 121000-4331 / 121000-4330 / 121000-4320

Information:

Voltage 14

Amp 130

D = Bracket hole 10.50

G = Belt. adj. bracket hole 11.40

B = Width/holder arm 12.00

E = Belt. adj. brackethole pos. 60

Mount. bracket dist 54.00

C = Pulley dia. 64.50

H = Pulley dist. 35.00

A = Grooves/pulley 6

J = Radius 96.00

J = Radius 87.00

Position B + M6

Rotation Cr

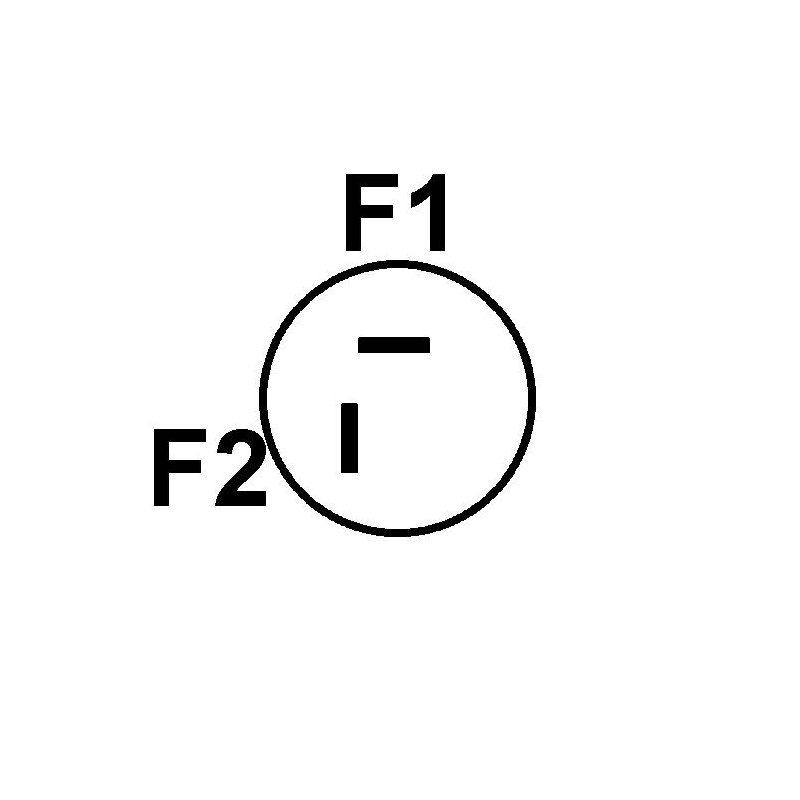

Plug no. 1 PL93

Fan If

Pulley Serpentine Pulley

R = Total length mm 191.00

= CHRYSLER 04727325 / 38522264F / 4686099 / 4727221

4727325 / 4727325AA / 4727329 / 4727329a / 4727329aa

5104775AA

= DELCO REMY DRZ0199

= DENSO 121000-4331 / 121000-4330 / 121000-4320 / 121000-4161 121000-4160 / 121000-4332

= HELLA 8EL738046001

Used onon  :

- DODGE caravan 3,0 / 3,3 / 3,8 essence

- CHRYSLER voyager 2,4 / 3,0 / 3,3 / 3,8 essence

          NO CORE EXCHANGE NEEDED

                             TWO YEARS WARRANTY
