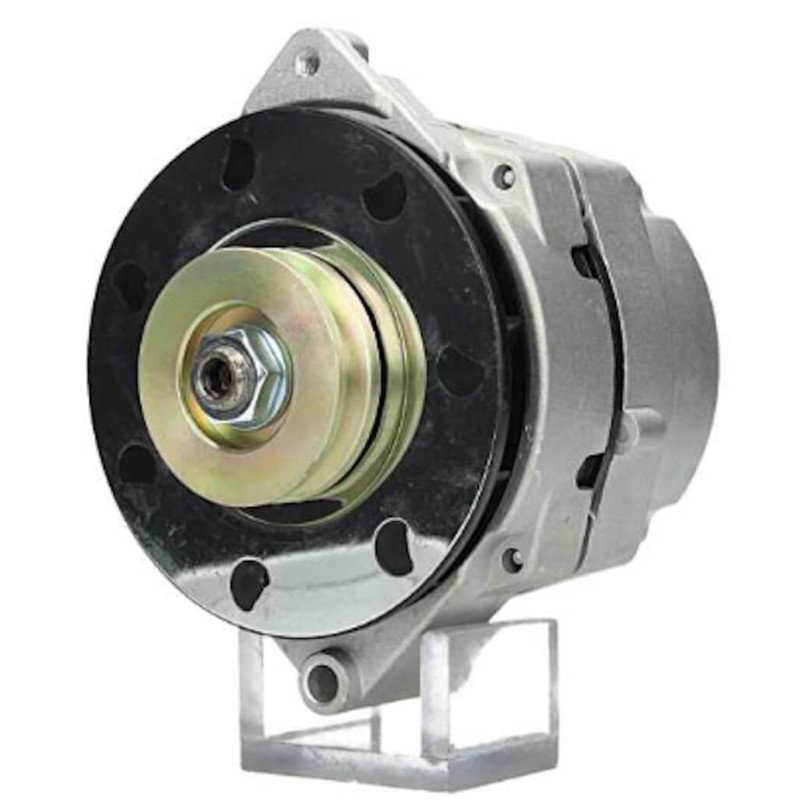

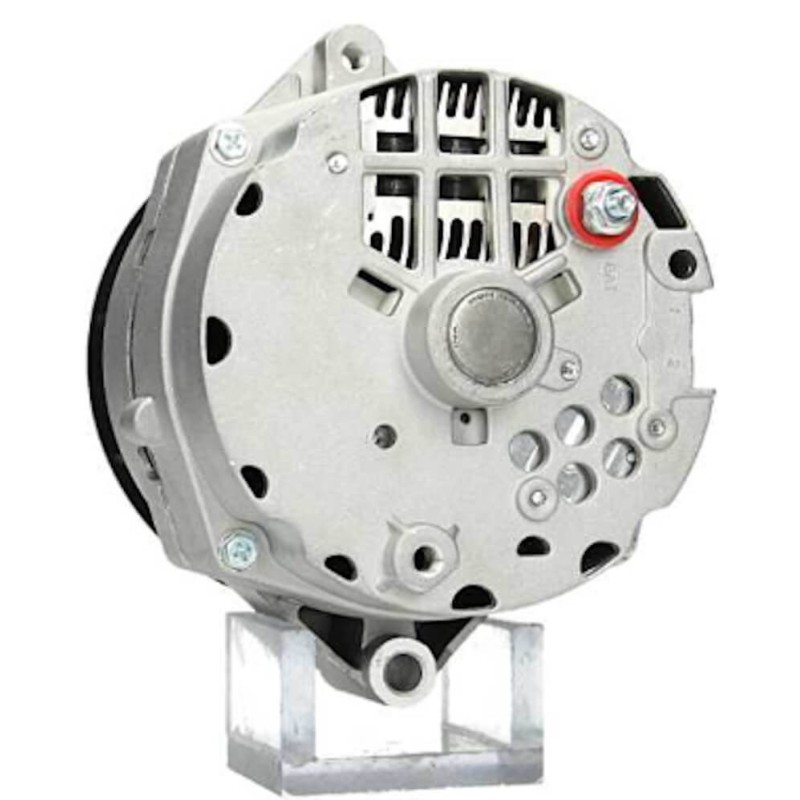

Alternator replacing DELCO REMY 1105654 / 1105651 / 1105630 / 1105629
Alternator NEW for American Motors, Buick,CADILLAC
CHEVROLET, GMC, Jeep, OLDSMOBILE, PONTIAC
= DELCO REMY :
1105604 / 1105602 / 1105592 / 1105582 / 1105654 / 1105651 / 1105630
1105581 / 1105572 / 1105569 / 1105629 / 1105568 / 1105567 / 1105566
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 94
D =Bracket hole M10
G =Belt. adj. bracket hole M8
B =Width/holder arm 51.00
E =Belt. adj. brackethole pos. 60
H = Pulley dia. 68.65
Grooves/pulley 1
J1 =Radius 81.30
J2 =Radius 81.70
Position B + M6
Rotation Cr

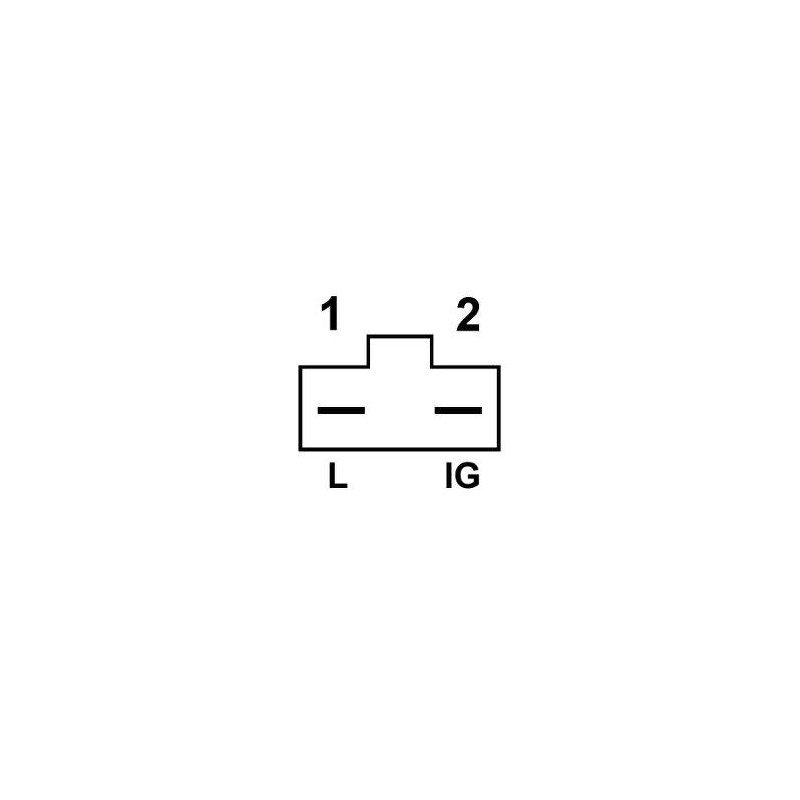

Plug no. 1 PL134
Fan Ef
Pulley Pulley
Remarks Replacing: 12SI.
R =Total length mm 170.00
= DELCO REMY :
1105604 / 1105602 / 1105592 / 1105582 / 1105654 / 1105651 / 1105630
1105581 / 1105572 / 1105569 / 1105629 / 1105568 / 1105567 / 1105566
1105565 / 1105562 / 1105561 / 1105547 / 1105545 / 1105544 / 1105543
1105542 / 1105541 / 1105507 / 1105506 / 1105496 / 1105495 / 1105493
1105480 / 1105449 / 1105447 / 1105446 / 1105445 / 1105444 / 1105443
1105442 / 1105441 / 1105428 / 1105402 / 1101484 / 1101332 / 1101324
1101305 / 1101304 / 1101301 / 1101300 / 1101299 / 1101298 /
1101245 / 1101244 / 1101243 / 1101242 / 1101241 / 1101240
1101157 / 10497079
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
