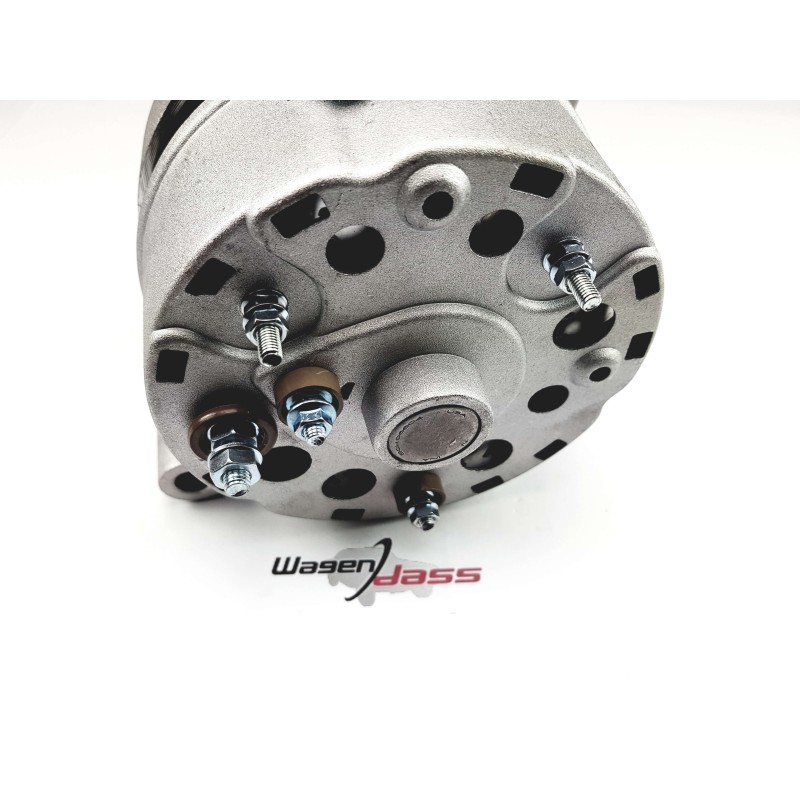

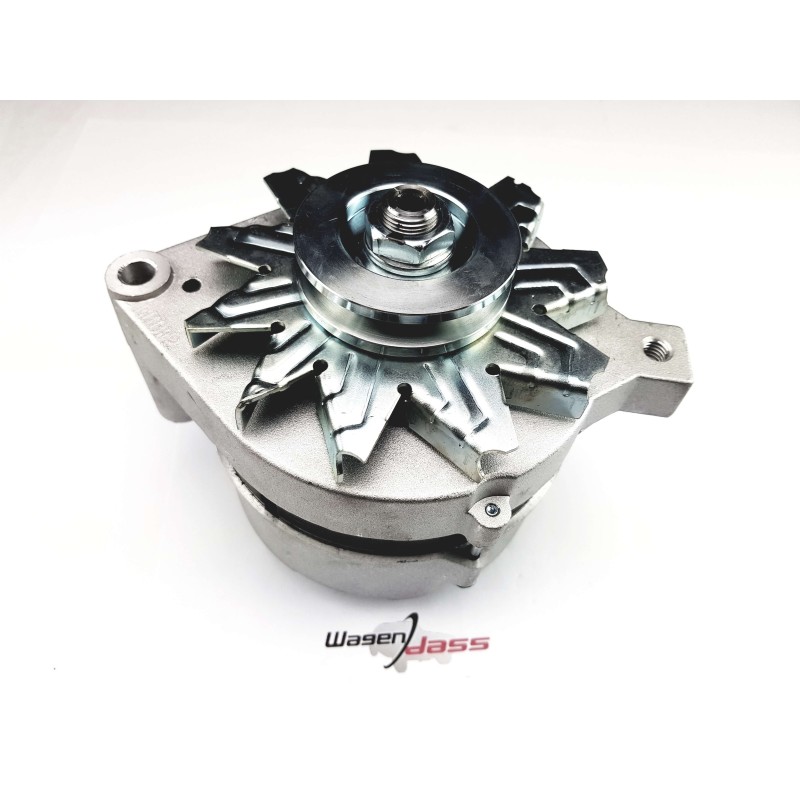

Alternator replacing FORD E6SF10300EA / E27F10300BA / E1GF10300DA / E1EF10300HA

Information:

Voltage 14

Amp 65

D = Bracket hole 7/16

G = Belt. adj. bracket hole 3/8"-16

B = Width/holder arm 76.25

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 66.70

A = Pulley dist. 101.00

Grooves/pulley 1

Position B + 1/4" UNC

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

Remarks Replacing: 1G série

brand wai

American Motors 3227687, 3227689, 3228505, 3228506, BOSCH 9 120 450 006, 9 120 450 124, CHRYSLER 8126436

FORD 87HLL-10300-DA, D0HF-10300-D, D0TF-10300-K, D0TF-10346-B, D0TZ-10346-C, D0UF-10300-A, D1AF-10300-AA, D20F-10300-CB, D20F-10300-EB, D22F-10300-BA, D2AF-10300-CA, D2AF-10300-CB, D2DF-10300-AB, D2DF-10300-AC, D2HF-10300-AA, D2HF-10300-AB, D2HF-10300-AC, D2OF-10300-CA, D2OF-10300-CB, D2OF-10346-CA, D2TF-10300-EA, D2TF-10300-EB, D2TF-10300-EC, D2TF-10346-BA, D2TZ-10346-B, D2TZ-10346-BA, D2UF-10300-AA, D2UF-10300-AB, D2UF-10300-AC, D30F-10300-BA, D32F-10300-BA, D3DF-10300-AA, D3DF-10300-CA, D3HF-10300-DA, D3OF-10300-EA, D3UF-10300-AA, D40F-10300-BA, D40F-10300-DA, D42F-10300-BA, D4AF-10346-AA, D4DF-10300-AA, D4OF-10300-DA, D4OF-10300-DF, D4OF-10346-AA, D4OZ-10346-A, D4UF-10300-AA, D5AF-10300-CA, D5AF-10300-DA, D5AF-10300-EA, D5AF-10300-FA, D5AF-10300-GA, D5AF-10300-HA, D5AF-10300-JA, D5AF-10300-KA, D5AF-10300-LA, D5AF-10346-BA, D5AF-10346-CA, D5AZ-10346-A, D5AZ-10346-B, D6FF-10300-BA, D6FF-10300-CA, D7AF-10300-AA, D7AF-10300-BA, D7AF-10300-CA, D7AF-10300-DA, D7AF-10300-EA, D7AF-10300-FA, D7AF-10300-GA, D7AF-10300-HA, D7AF-10300-JA, D7AF-10300-KA, D7AF-10300-LA, D7AF-10346-AA, D7AF-10346-BA, D7AF-10346-CA, D7AZ-10346-A, D7AZ-10346-B, D7AZ-10346-C, D7TF-10300-AA, D7TF-10300-BA, D7TF-10300-CA, D8BF-10300-AA, D8BF-10300-BA, D8BF-10300-CA, D8BF-10346-AA, D8BF-10346-BA, D8VF-10346-AA, D8ZE-10300-CA, D8ZF-10300-AA, D8ZF-10300-BA, D8ZF-10300-CA, D8ZF-10300-EA, D8ZF-10300-HA, D8ZF-10346-AA, D94F-10300-AA, D9AF-10300-BA, D9BZ-10346-A, D9BZ-10346-B, D9HT-10300-DA, D9HT-10300-EA, D9UF-10300-AA, D9UF-10300-BA, D9UF-10300-CA, D9UF-10300-DA, D9VF-10300-AA, D9VF-10346-AA, D9VY-10346-A, D9VY-10346-AA, D9VY-10346-B, D9ZF-10300-AA, D9ZF-10346-AA, D9ZZ-10346-A, E0SF-10300-AA, E0TF-10300-AA, E1AF-10300-CA, E1BF-10300-AA, E1BF-10300-HA, E1BF-10346-AA, E1BF-10346-BA, E1BZ-10346-B, E1BZ-10346-BRM, E1EF-10300-EB, E1EF-10300-FB, E1EF-10300-HA, E1EF-10300-JA, E1EF-10300-LA, E1EF-10300-MA, E1GF-10300-DA, E1GF-10346-EA, E1HT-10300-AA, E1HT-10300-BA, E1TF-10300-AA, E1ZF-10300-AA, E1ZF-10300-BA, E1ZF-10300-CA, E1ZF-10300-DA, E1ZF-10300-FA, E1ZF-10346-AA, E1ZZ-10346-A, E1ZZ-10346-ARM, E27F-10300-AA, E27F-10300-BA, E2BF-10300-AA, E2GZ-10346-C, E2GZ-10346-CRM, E37F-10300-BA, E37F-10300-CA, E37F-10300-DA, E3EF-10300-BA, E3EF-10346-BA, E3TF-10300-BA, E3ZF-10300-BA, E3ZF-10300-EA, E47F-10300-AA, E47F-10300-BA, E47F-10300-CA, E4TF-10300-AA, E4TF-10300-BA, E4TF-10300-CA, E4UF-10300-AA, E4ZF-10300-BA, E4ZF-10300-CA, E5HT-10300-EA, E6SF-10300-DA, E6SF-10300-EA, E9PZ-13046-A, F2OF-10346-KA

FORD ENGINEERING 87HLL-DA, D0HF-D, D0TF-K, D0UF-A, D1AF-AA, D20F-CB, D20F-EB, D22F-BA, D2AF-CA, D2AF-CB, D2DF-AB, D2DF-AC, D2HF-AA, D2HF-AB, D2HF-AC, D2OF-CA, D2OF-CB, D2TF-EA, D2TF-EB, D2TF-EC, D2UF-AA, D2UF-AB, D2UF-AC, D30F-BA, D32F-BA, D3DF-AA, D3DF-CA, D3HF-DA, D3OF-EA, D3UF-AA, D40F-BA, D40F-DA, D42F-BA, D4DF-AA, D4OF-DA, D4OF-DF, D4UF-AA, D5AF-CA, D5AF-DA, D5AF-EA, D5AF-FA, D5AF-GA, D5AF-HA, D5AF-JA, D5AF-KA, D5AF-LA, D6FF-BA, D6FF-CA, D7AF-AA, D7AF-BA, D7AF-CA, D7AF-DA, D7AF-EA, D7AF-FA, D7AF-GA, D7AF-HA, D7AF-JA, D7AF-KA, D7AF-LA, D7TF-AA, D7TF-BA, D7TF-CA, D8BF-AA, D8BF-BA, D8BF-CA, D8ZE-CA, D8ZF-AA, D8ZF-BA, D8ZF-CA, D8ZF-EA, D8ZF-HA, D94F-AA, D9AF-BA, D9HT-DA, D9HT-EA, D9UF-AA, D9UF-BA, D9UF-CA, D9UF-DA, D9VF-AA, D9ZF-AA, E0SF-AA, E0TF-AA, E1AF-CA, E1BF-AA, E1BF-HA, E1EF-EB, E1EF-FB, E1EF-HA, E1EF-JA, E1EF-LA, E1EF-MA, E1GF-DA, E1HT-AA, E1HT-BA, E1TF-AA, E1ZF-AA, E1ZF-BA, E1ZF-CA, E1ZF-DA, E1ZF-FA, E27F-AA, E27F-BA, E2BF-AA, E37F-BA, E37F-CA, E37F-DA, E3EF-BA, E3TF-BA, E3ZF-BA, E3ZF-EA, E47F-AA, E47F-BA, E47F-CA, E4TF-AA, E4TF-BA, E4TF-CA, E4UF-AA, E4ZF-BA, E4ZF-CA, E5HT-EA, E6SF-DA, E6SF-EA

Jeep-Eagle 8126436, MOTOROLA 10-731, 8AL2062L, PRESTOLITE 110-731

It is important to check your regulator before installing the new alternator


                       NO CORE EXCHANGE NEEDED

                                            TWO YEARS WARRANTY
