Alternator replacing DELCO REMY 1105678 / 1105677 / 1101806 / 10497145

Information:

Voltage 14, Amp 100/105

D =Bracket hole 10.00

G =Belt. adj. bracket hole M8

B =Width/holder arm 50.50

E =Belt. adj. brackethole pos. 60

H =Pulley dia. 55.50

A =Pulley dist. 73.00

Grooves/pulley 6

J1 =Radius 83.00

J2 =Radius 83.00

Position B + M6

Rotation Cr

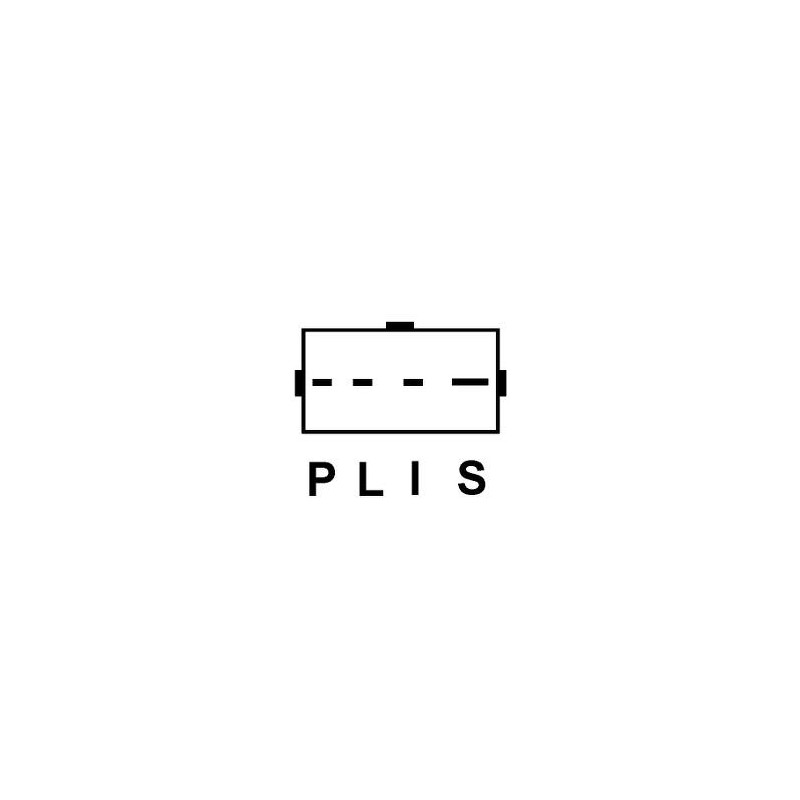

Plug no. 1 PL24

Fan Ef

Pulley Serpentine Pulley

Remarks Replacing: CS130.

R =Total length mm 170.00

generic brand

= DELCO REMY 10463323, 10497122, 1105678, GM 10497122

                   NO CORE EXCHANGE NEEDED

                                        TWO YEARS WARRANTY
