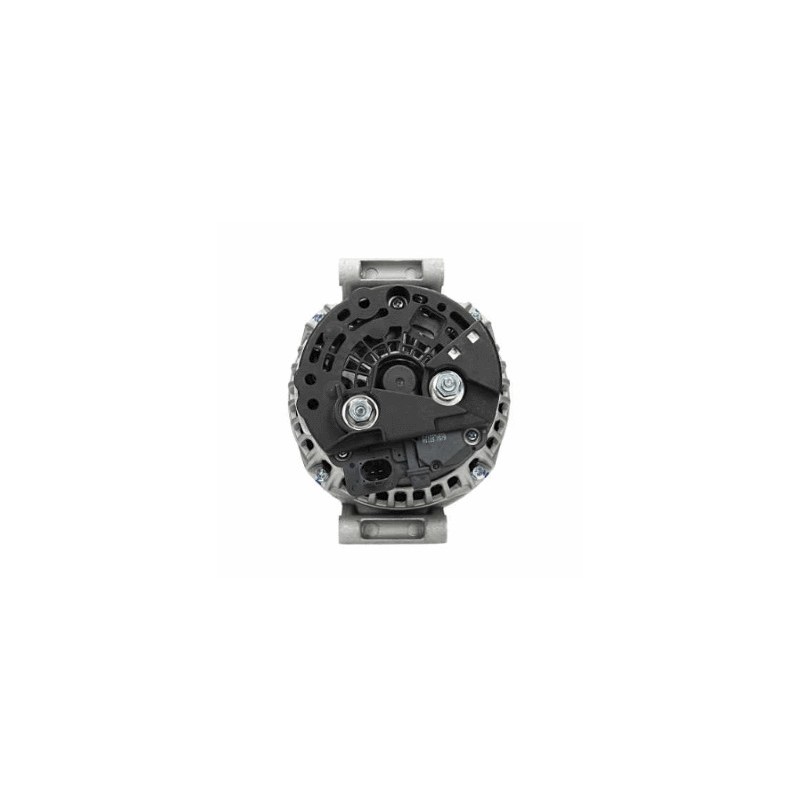

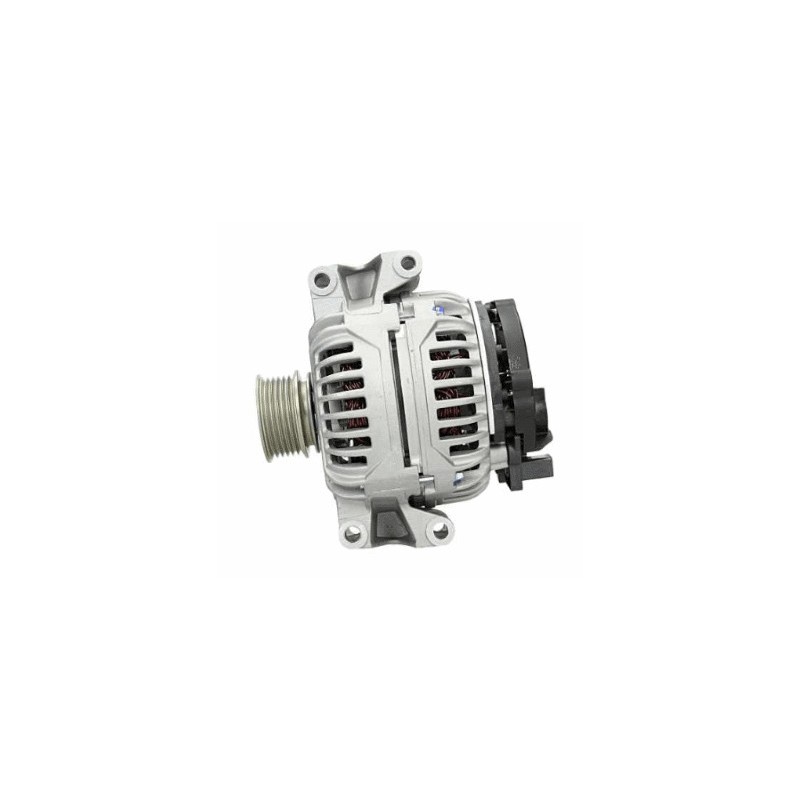

Alternator replacing 0124525088 / 0124525009 / SG14B022 / TG14C025
Alternator NEW for SEAT / SKODA / VW /AUDI
06B903016AA / 06B903016AB / 06B903016AF / 06B903019E / 06D903016A / 06J903023C / 0986046180
0986048130 / 439393 / DRB6180 / LRA02255 / sg14b010 / SG14B016
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
generic brand
Information:
Voltage 14
Amp 140
D = Bracket hole 9.00
G = Belt. adj. bracket hole 9.00
B = Width/holder arm 70.00
C = Mount. bracket dist 56.00
H = Pulley dia. 56.00
A = Pulley dist. 29.00
Grooves/pulley 6
Position B + M8
Rotation Cr

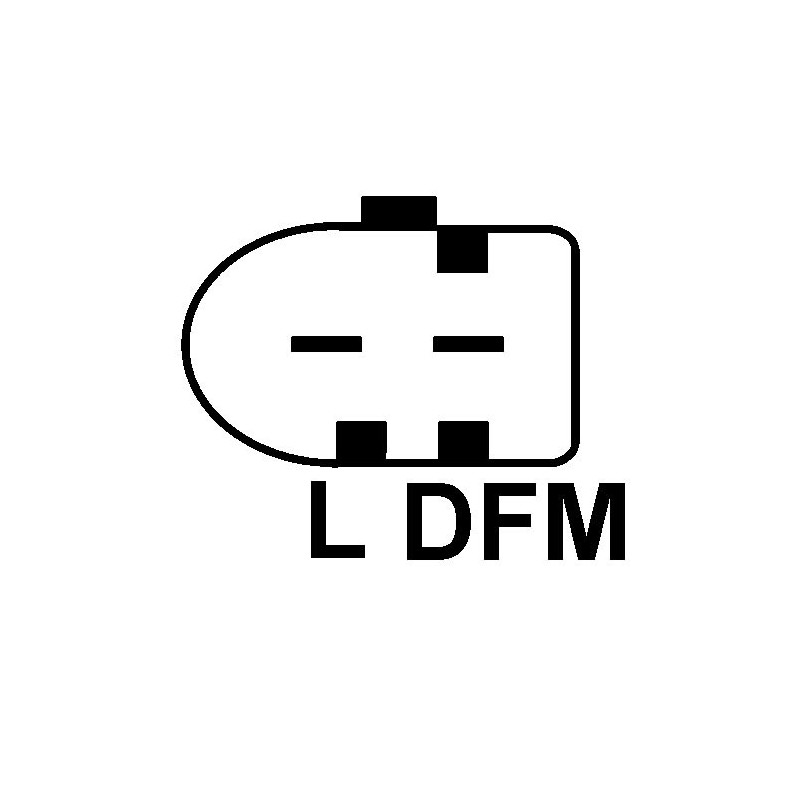

Plug no. 1 PL61
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
Belt. adj. bracket hole 9.00
= BOSCH 0124525088 / 0124525009 / F000BL0809
= VOLKSWAGEN 06B903016AA / 06B903016AB / 06b903016af
06d903016a / 06j903023c / 06K903023
= VALEO 2542494 / 2542494A / 2542739 / 2542739A
2542739B / 2543369 / 2606237 / 2606237a
sg14b010 / SG14B016 / SG14B022 / TG14C025
| 0124525009 |
| 0124525088 |
| 06B903016AA |
| 06B903016AB |
| 06B903016AF |
| 06B903019E |
| 06D903016A |
| 06J903023C |
| 0986046180 |
| 0986048130 |
| 205525140 |
| 2205489 |
| 23255 |
| 23255N |
| 2542494 |
| 2542739 |
| 284733 |
| 437360 |
| 439393 |
| 439822 |
| 440483 |
| 442031 |
| 543369 |
| 606237 |
| 6240SP |
| 738194001 |
| 90156602 |
| 9046180F |
| 946180 |
| CA1811IR |
| DRB6180 |
| HCA1811IR |
| L46180 |
| LRA02255 |
| SG14B010 |
| SG14B016 |
| SG14B022 |
| TG14C025 |
fits:
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Beetle | 2.0 | Unleaded | 2011 04 | - | CBFA | TSi | 147 | 200 | Hayon | 1984 | 4 | 5C1 |
| Beetle | 2.0 | Unleaded | 2012 12 | - | CBFA | TSI | 147 | 200 | Décapotable | 1984 | 4 | |
| Beetle | 2.0 | Unleaded | 2012 12 | - | CCZA | TSI | 147 | 200 | Décapotable | 1984 | 4 | |
| Beetle | 2.0 | Unleaded | 2011 04 | - | CCZA | TSi | 147 | 200 | Hayon | 1984 | 4 | 5C1 |
| Beetle | 2.0 | Unleaded | 2012 12 | - | CCTA | TSI | 147 | 200 | Décapotable | 1984 | 4 | |
| Beetle | 2.0 | Unleaded | 2011 04 | - | CCTA | TSi | 147 | 200 | Hayon | 1984 | 4 | 5C1 |
| CC | 2.0 | Unleaded | 2011 11 | - | CCZB | TSi | 155 | 210 | Coupé | 1984 | 4 | |
| CC | 1.8 | Unleaded | 2011 11 | - | CDAA | TSi | 118 | 160 | Coupé | 1798 | 4 | |
| Eos | 2.0 | Unleaded | 2008 05 | - | CAWB | TFSi | 147 | 200 | Décapotable | 1984 | 4 | |
| Eos | 2.0 | Unleaded | 2009 05 | - | CCZA | TFSi | 147 | 200 | Décapotable | 1984 | 4 |
| Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A3 | 2.0 | Unleaded | 2008 04 | 2013 05 | CCZA | TFSi | 147 | 200 | Décapotable | 1984 | 4 | ||
| A3 | 2.0 | Unleaded | 2008 04 | 2013 05 | CAWB | TFSi | 147 | 200 | Décapotable | 1984 | 4 | ||
| A4 | 2.0 | Unleaded | 2004 11 | - | BPG | TFSi | 147 | 200 | 1984 | 4 | 8EC | ||
| A4 | 2.0 | Unleaded | 2006 06 | - | BWT | TFSi | 147 | 200 | Quattro | 1984 | 4 | 8EC | |
| A4 | 2.0 | Unleaded | 2004 11 | - | BWE | TFSi | 147 | 200 | Break | Quattro | 1984 | 4 | 8ED |
| A4 | 2.0 | Unleaded | 2005 06 | - | BUL | TFSi | 162 | 220 | Quattro | 1984 | 4 | 8EC | |
| A4 | 2.0 | Unleaded | 2006 10 | - | BYK | FSi | 125 | 170 | 1984 | 4 | 8EC | ||
| A4 | 2.0 | Unleaded | 2006 10 | - | BYK | FSi | 125 | 170 | Break | 1984 | 4 | 8ED | |
| A4 | 2.0 | Unleaded | 2005 10 | - | TFSi | 120 | 163 | Décapotable | 1984 | 4 | 8H7, 8HE | ||
| A4 | 2.0 | Unleaded | 2006 01 | - | BWT | TFSi | 147 | 200 | Décapotable | 1984 | 4 | 8H7, 8HE |
