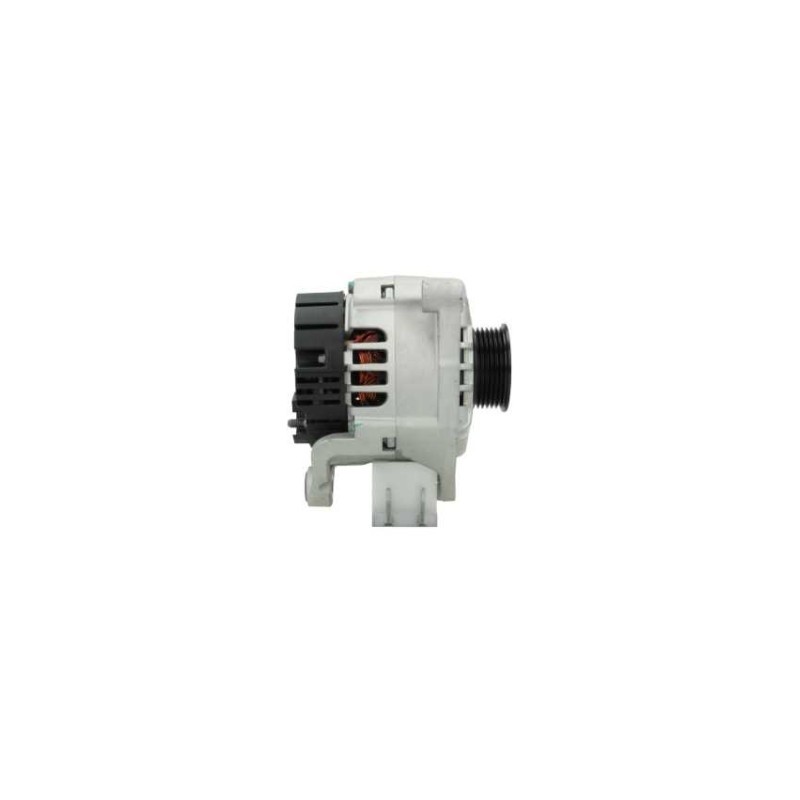

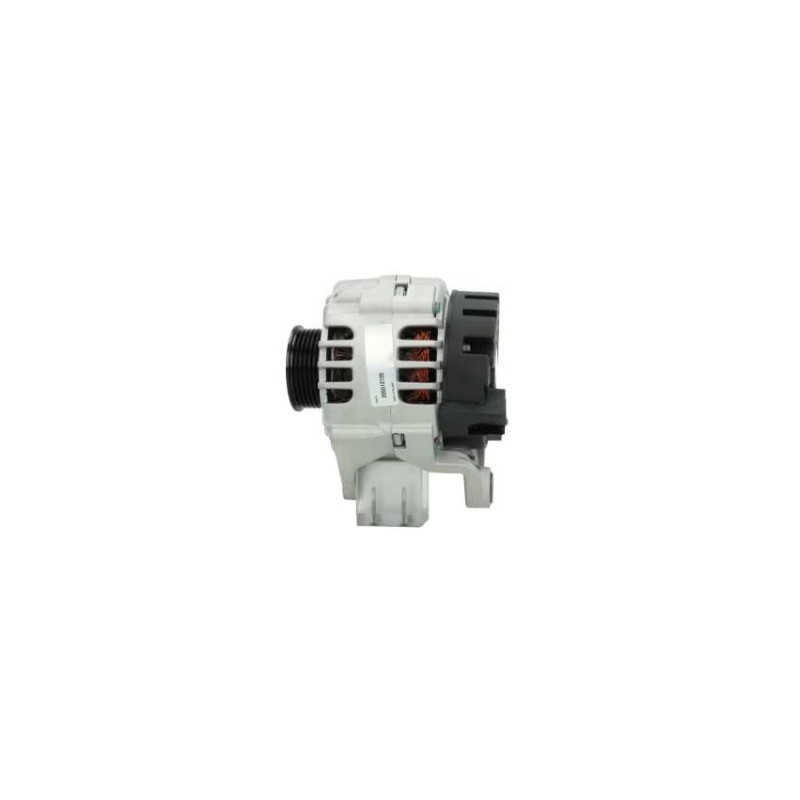

Alternator VALEO SG12B054 replacing 0986044330 / 0986044337 / SG12B011
Alternator NEW replacing VALEO SG12B011 / SG12B025 / SG12B054 / 2542233 / 2542233A / 437178 / 437358 / 442035
VW 06B903018DX / 06B90301D / 06C903016 / 06C903016A / 06C903018 / 078903016F / 078903016H
NO CORE EXCHANGE NEEDED
More info
Specs Electricals | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 120 | |
Specs Physique | ||
|---|---|---|
| A | Pulley dist. | 30.00 |
| B | Width/holder arm | 14.00 |
| C | Mount. bracket dist | 82.00 |
| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 50 |
| G | Belt. adj. bracket hole | 9.65 |
| H | Pulley dia. | 64.80 |
| I | Grooves/pulley | 6 |
| J | Radius | 92.00 |
| J | Radius 2 | 96.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 20 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL61 |
| R | Total length mm | 165.00 |
Replacing :
Replacing | |
|---|---|
| 0124515028 | BOSCH |
| 0124515040 | BOSCH |
| 0124515058 | BOSCH |
| 038903018F | VOLKSWAGEN |
| 059903015F | VOLKSWAGEN |
| 059903015G | VOLKSWAGEN |
| 059903015GX | VOLKSWAGEN |
| 06C903016 | VOLKSWAGEN |
| 06C903016A | VOLKSWAGEN |
| 078903016F | VOLKSWAGEN |
| 078903016H | VOLKSWAGEN |
| 078903016HX | VOLKSWAGEN |
| 2542233 | VALEO |
| 2542233A | VALEO |
| 2542233C | VALEO |
| 2542324 | VALEO |
| 2542324A | VALEO |
| 2542324D | VALEO |
| 2542546 | VALEO |
| 2542546B | VALEO |
| CA1588IR | HC-PARTS |
| SG12B011 | VALEO |
| SG12B025 | VALEO |
| SG12B054 | VALEO |
| 0124515028 | BOSCH |
| 0124515040 | BOSCH |
| 06B903018DX | VW |
| 06B90301D | VW |
| 06C903016 | VW |
| 06C903016A | VW |
| 06C903018 | VW |
| 078903016F | VW |
| 078903016H | VW |
| 0986044330 | BOSCH ruil |
| 0986044337 | BOSCH ruil |
| 11203459 | MAHLE |
| 113751 | Cargo |
| 12044330 | EuroTec |
| 205512120 | PSH |
| 2542233 | VALEO |
| 437178 | VALEO |
| 437358 | VALEO |
| 442035 | VALEO |
| 542546 | VALEO |
| 56921 | EAI |
| 5908SP | Spidan |
| 746087 | VALEO |
| 8EL011711571 | HELLA |
| 8EL737873001 | HELLA |
| 90156339 | WILSON |
| 90225508 | WILSON |
| 9044330F | Friesen |
| 934068 | EDR |
| ALT0004sa | Electrolog |
| ALT0057sa | Electrolog |
| ALT0102SA | Electrolog |
| ALT1232sa | Electrolog |
| ALT2311 | UNIPOINT |
| CA1588IR | HC |
| DRA4068 | DELCO REMY |
| F032UA0066 | BOSCH |
| F032UA0066K2F | BOSCH |
| F042208009 | BOSCH |
| F042A01186 | BOSCH |
| HCA1588IR | HC |
| IA1307 | MAHLE |
| L44330 | ATL |
| MG34 | MAHLE |
| OAN10346 | Optimum |
| SG12B011 | VALEO |
| SG12B054 | VALEO |
| SG12B054OR | Generic |
Mounted on :
AUDI
VOLKSWAGEN
