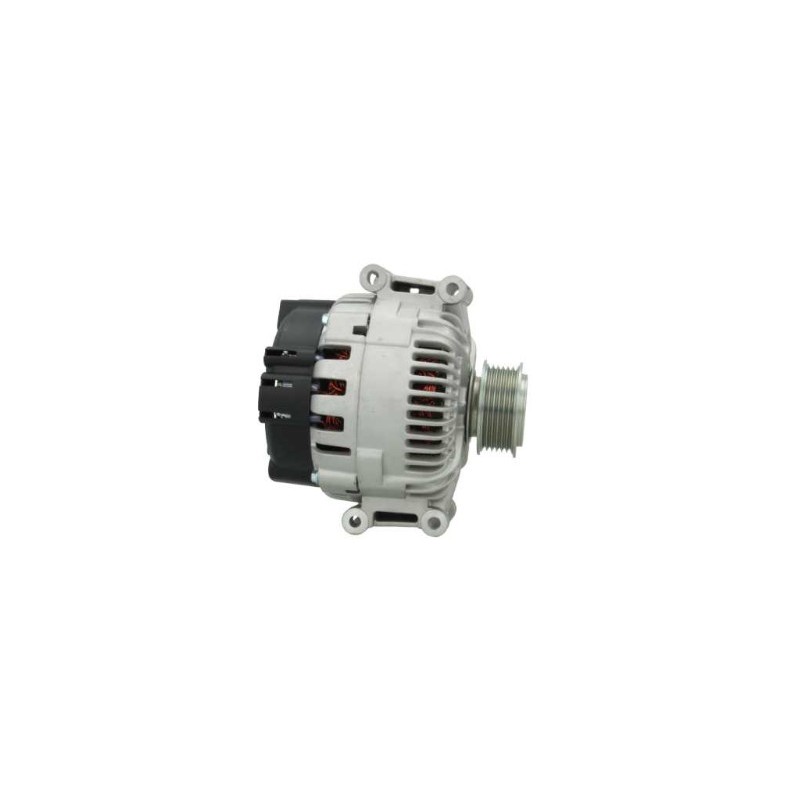

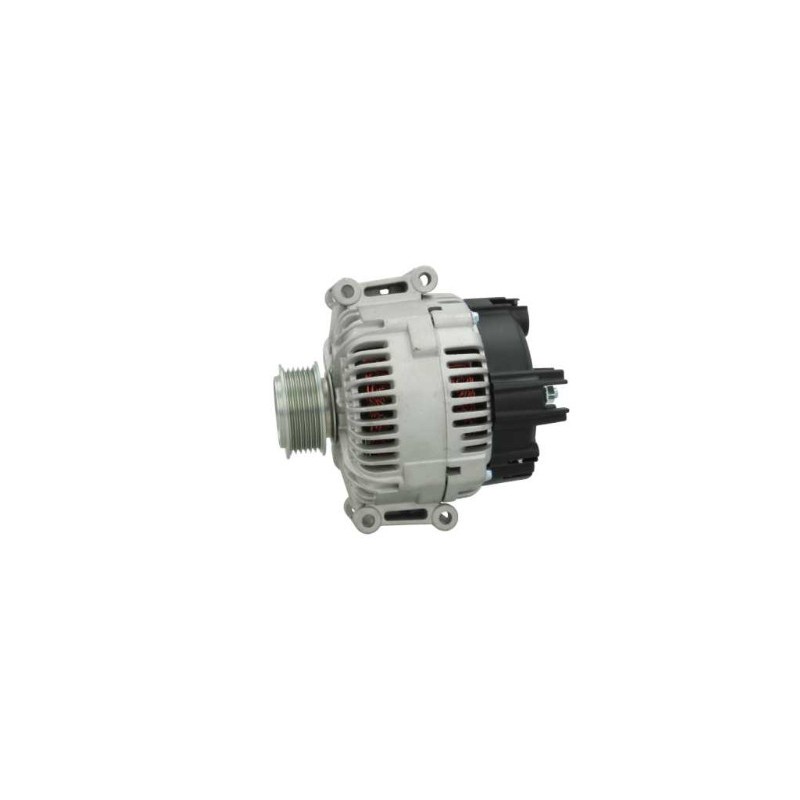

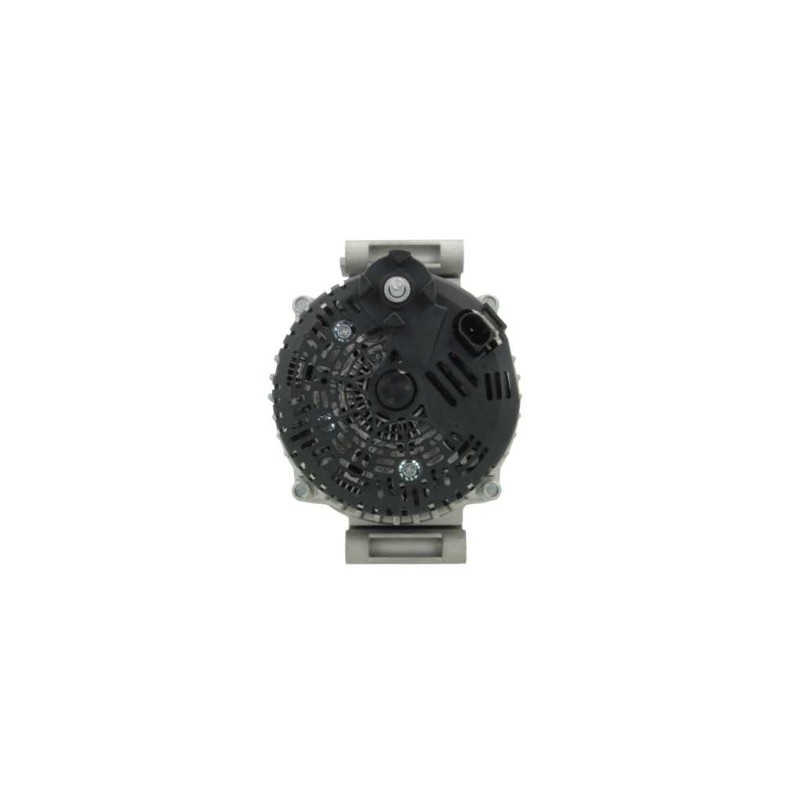

Alternator VALEO TG17C044 forAUDI A6
Alternator NEW VALEO 2542798 / TG17C023 / TG17C044
= VOLKSWAGEN 06E903016K / 06E903016G / 06E903016KX / 06E903016L / 06E903016LX / 06E903016M / 06E903016T
Generic brand available under the reference w115414
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 180 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.00 |
| G | Belt. adj. bracket hole | 9.00 |
| B | Width/holder arm | 70.00 |
| C | Mount. bracket dist | 56.00 |
| H | Pulley dia. | 64.50 |
| A | Pulley dist. | 29.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 80.50 |
| j | Radius 2 | 82.50 |
| k | Position B + | M8 |
| n | Rotation | Cr |

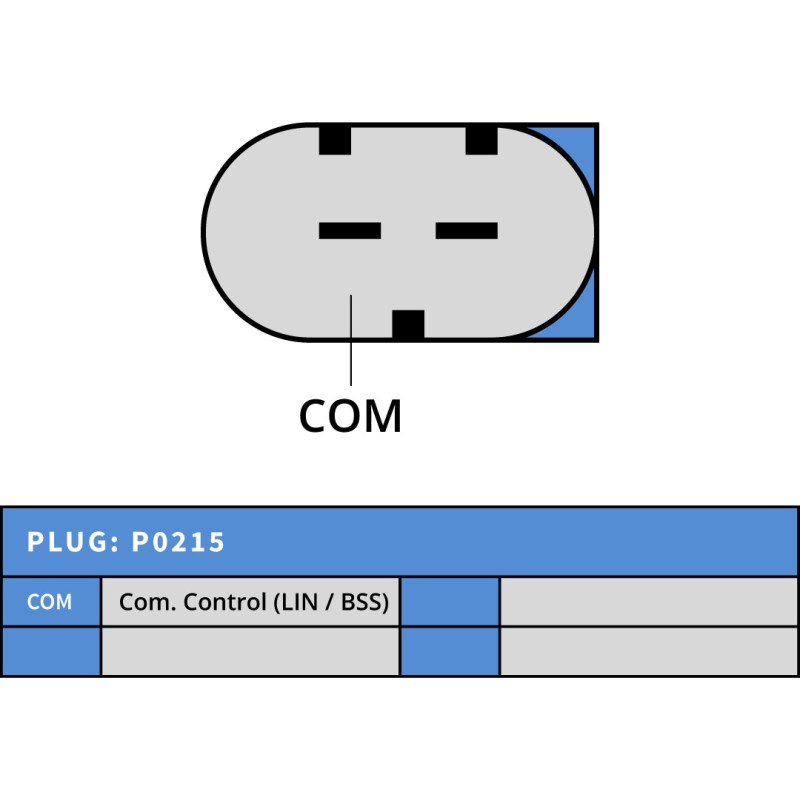

| o | Plug no. 1 | PL86 |
| G | Belt. adj. bracket hole 2 2 | 9.5x8 |
| R | Total length mm | 198.00 |
| Tipo borne | COM | |
| Code ID | BSS2 | |
Replacing :
| 0121715022 |
| 0121715122 |
| 06E903016G |
| 06E903016K |
| 06E903016KX |
| 06E903016L |
| 06E903016LX |
| 06E903016M |
| 06E903016T |
| 205521180 |
| 2542798 |
| 2542798A |
| 284871 |
| 437528 |
| 439554 |
| 543280 |
| 9090392F |
| 930053 |
| DRA0358 |
| LR1180858 |
| LRA02365 |
| TG17C023 |
| TG17C044 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Data sheet
| Poulie | serpentine |
| Connecteur régulateur | PL6 |
| Ampérage | 140 |
| Voltage | 14 |
