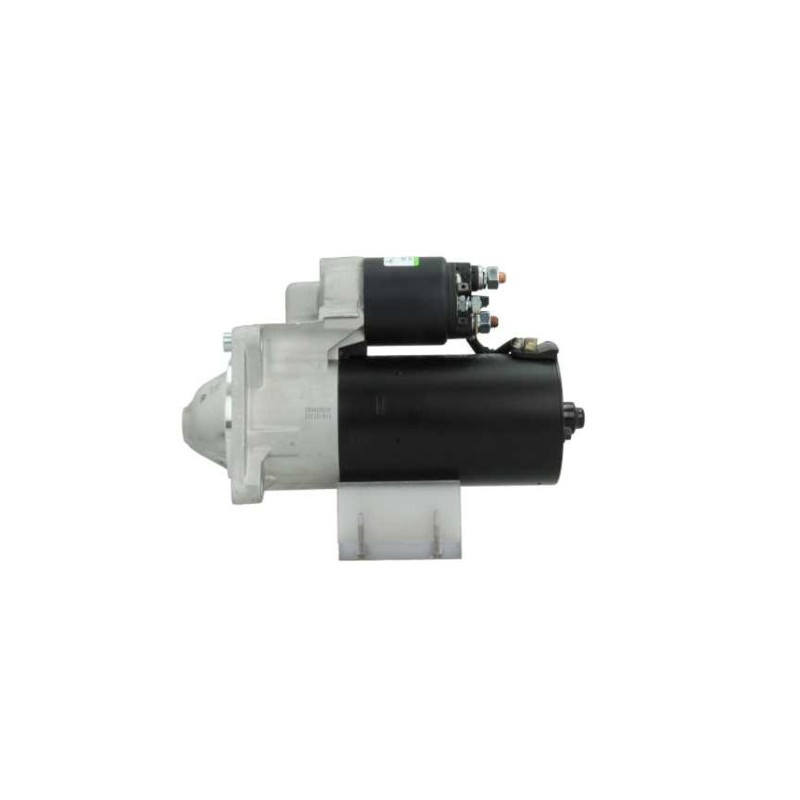

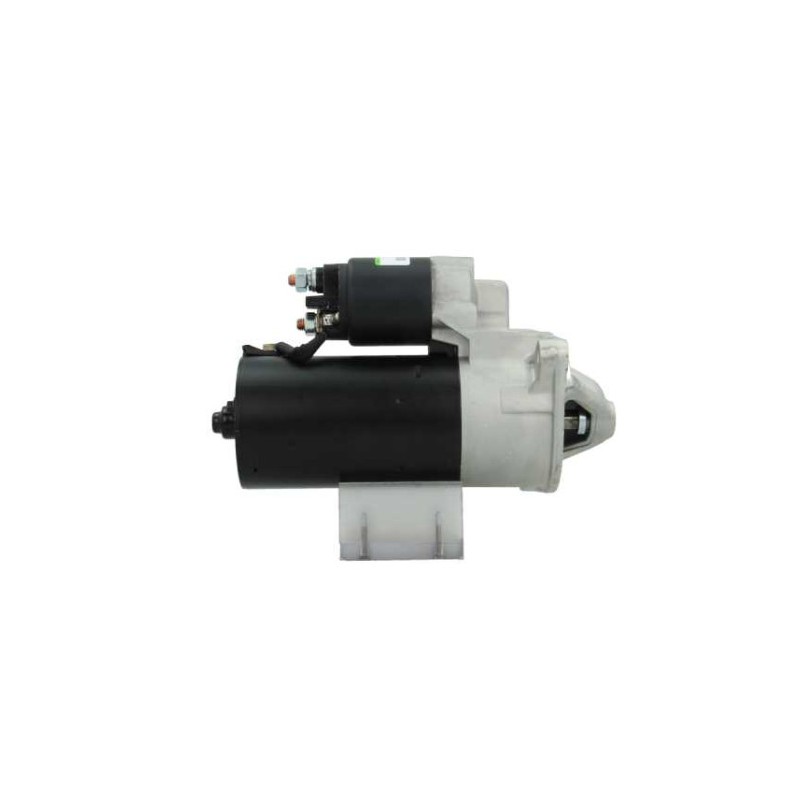

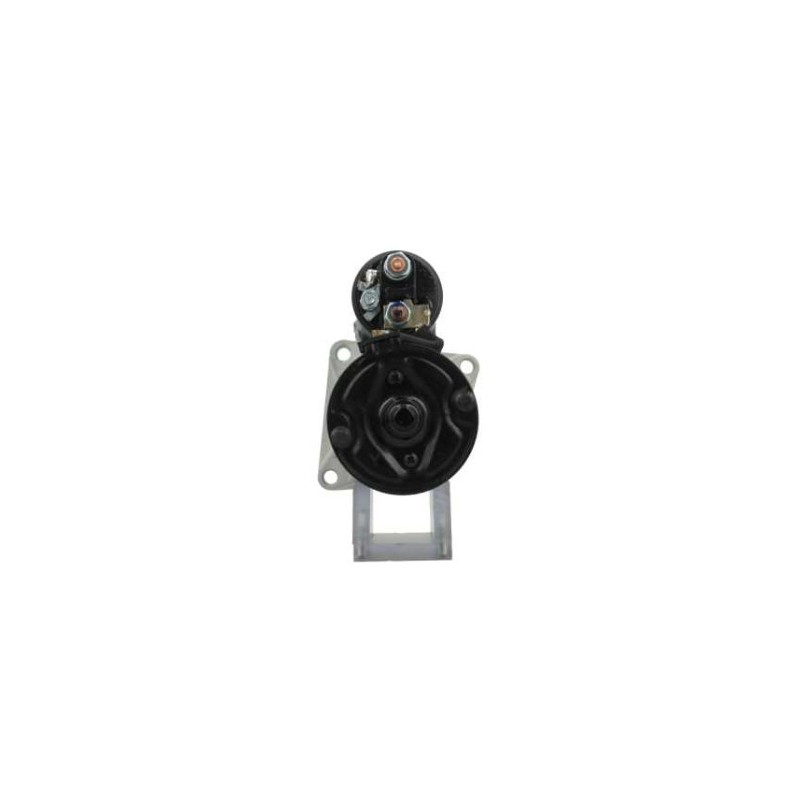

Starter replacing 0001109254 / 0001109267 / DRS0021 / IS1199
Starter Replacing BOSCH 0001109254 / 0001109267 / VM 3.553.2055F / LUCAS LRS02343
for FIAT / LDV Maxus
NO CORE EXCHANGE NEEDED
More info
Electrical information | |
|---|---|
| Voltage | 12 |
| Kw | 2.2 |
| Drive type | Steel |
Physical information | ||
|---|---|---|
| H | No./teeth | 9 |
| P | Rotation | CW |
| N | Gear type | GR |
| A | Mount. flange | 82.00 |
| I | B+ | M8 |
| B | Drive dist. | 0.00 |
| E | Mount. holes | 8.50 |
| E | Mount. hole 2 | 9.00 |
| E | Mount. hole 3 | 9.00 |
| F | Dist./back | 189.00 |
| G | Dist./front | 37.00 |
| M | Mount. bracket | No |
| O | Dist. mm | 82.00 |
| O | Dist. 2 | 116.00 |
| O | Dist. 3 | 82.00 |
| R | Total length mm | 240.00 |
generic brand
replacing
| 0001109254 | BOSCH | |
| 0001109267 | BOSCH | |
| 11090134 | EuroTec | |
| 120665 | PIC | |
| 12313 | EAI | |
| 254015 | Elstock | |
| 31510 | Lester | |
| 35532055F | VM (STABILIMENTI MEC | |
| 500543093 | PSH | |
| 518100009 | ||
| 8080324F | Friesen | |
| 910021 | EDR | |
| DRS0021 | DELCO REMY | |
| IS1199 | MAHLE | |
| LRS02343 | LUCAS | |
| STR1522sa | Electrolog |
