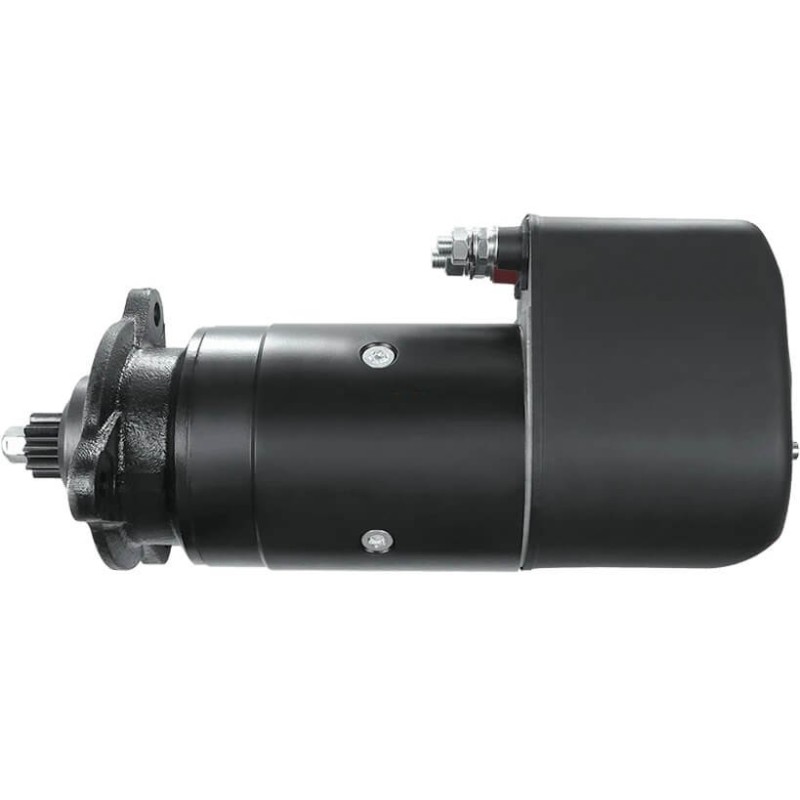

Starter replacing BOSCH 0001417051 / 0001417038 / 0001417001 / 0001411009 / 0001410024

Information:

Voltage 24

KW 6.6

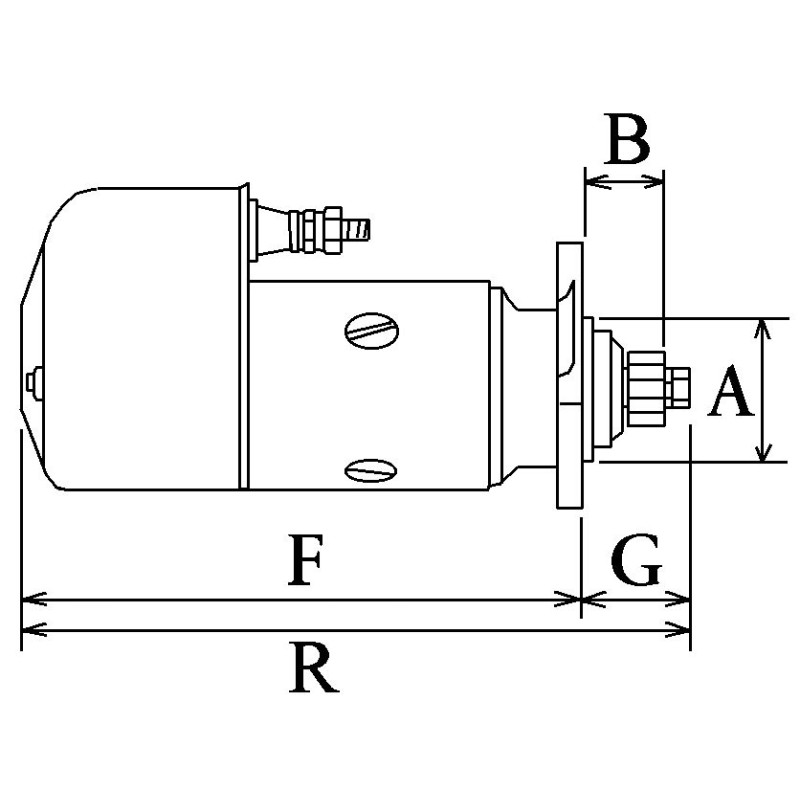

A =Mount flange 92.00

B =Drive distance 48.50

F =Distance / Back 343.00

G =Distance / Front 61.00

H =Nbr of teeth 9

B+ M12

B- M10

Gear type Dd

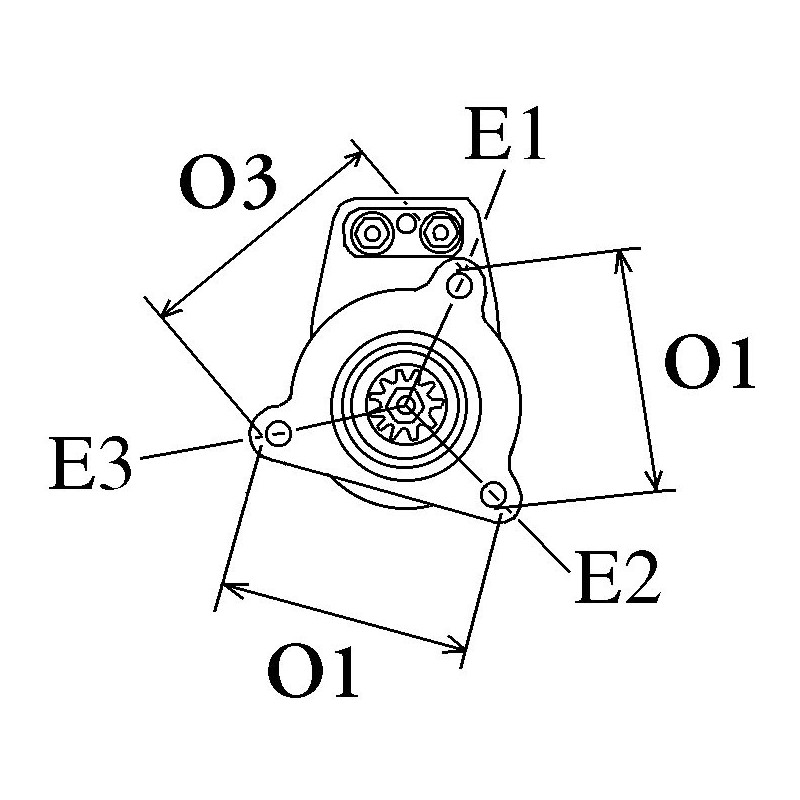

O1 =Distance 124.50

O2 =Distance 2 124.50

O3 =Distance 3 124.50

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R =Total length mm 407.00

Generic Brand

= AVF 001/004 / 001/109 / 001/504 / 001/506 / 001/507 / 001/508 / 001/605

= Butec 860506 / 860132 / 857468

= CAV 2998010

= ISKRA 11.139.032 / AZK5191

= LIEBHERR 6000309 / 6104080

= MAN 51.26201-7057 / 51.26201-7061 / 51.26201-7087 / 51.26201-7110 / 51.26201-7123 / 51.26201-9057 / 51.26201-9061

= MAGNETON 9125010

= Monark 81466008 / 81467001

= MERCEDES-BENZ 0001512801 / 0011519701 / 0041516101 / 0051512801 / A0001512801 / A0011519701 / A0041516101 / A0051512801

= DELCO REMY 19024051

= RENAULT 5000049122 / 5000241777

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
