Starter replacing ESW24E5 / ESW24E50 / 36001705 / 30644954 / 30659475

W116088

12418 EAI CST15281AS CASCO
20479182 REAL CST15281ES CASCO
25-4459 ELSTOCK CST15281GS CASCO
255396R KUHNER CST15281OS CASCO
255396V KUHNER CST15281RS CASCO
30601705 VOLVO DRS1172 DELCO
30644780 VOLVO DS2282 DELCO
30644954 VOLVO ESW24E5 VALEO
30659475 VOLVO ESW24E50 VALEO
€138.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
2-year warranty
No instructions, no return of the old
Secure payments

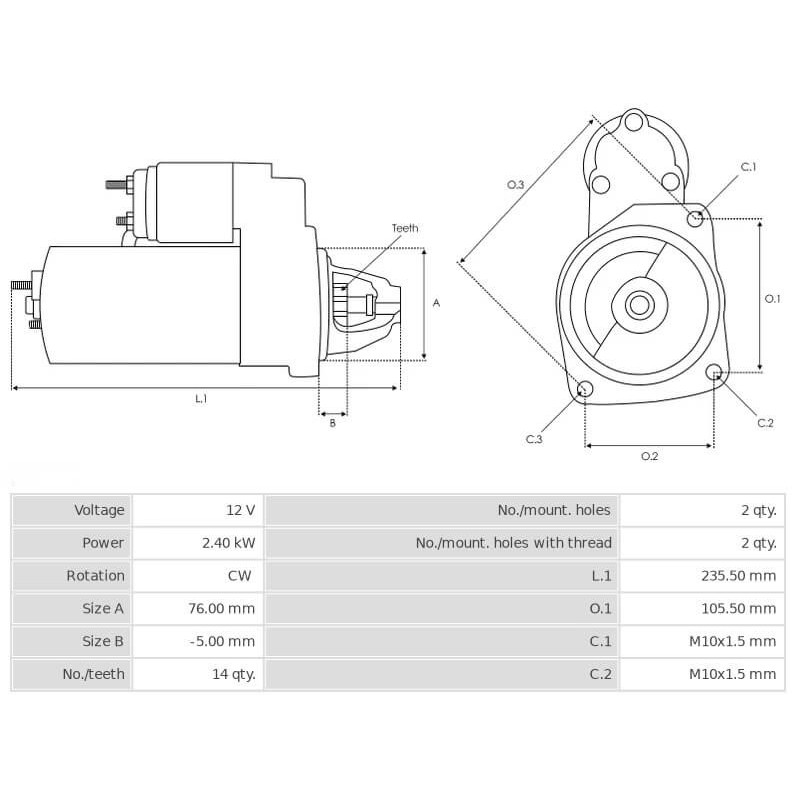

Features

Electrical information
Voltage 12
Kw 2.4
Physical information
H No./teeth 14
P Rotation CW
N Gear type GR
A Mount. flange 76.20
I B+ M8
No./mount. holes 3 (2)
B Drive dist. -5.50
E Mount. holes M10
E Mount. hole 2 M10
F Dist./back 186.00
G Dist./front 33.00
M Mount. bracket No
O Dist. mm 105.75

generic brand

replacing

12418 EAI CST15281AS CASCO
20479182 REAL CST15281ES CASCO
25-4459 ELSTOCK CST15281GS CASCO
255396R KUHNER CST15281OS CASCO
255396V KUHNER CST15281RS CASCO
30601705 VOLVO DRS1172 DELCO
30644780 VOLVO DS2282 DELCO
30644954 VOLVO ESW24E5 VALEO
30659475 VOLVO ESW24E50 VALEO
3240 CEVAM LRS03786 LUCAS
36001705 VOLVO LRS3786 LUCAS
36002868 VOLVO STRE431 3EFFE
36013580 VOLVO STV5240 KRAUF
438308 VALEO UD14915S AS-PL
6015281 SANDO VAL438308 WOODAUTO
810.540.143 PSH VALESW24E50 WOODAUTO
88214671 POWERMAX STR00344 ELECTROLOG
AEY3786 AUTOELECTRO STX210326R STARDAX
CST15281 CASCO STX210326 STARDAX

Fits

Brand Model Typ Year Remarks
VOLVO V60 2.4 D5 AWD [D5244T10] 01/01/10 AT
VOLVO V60 2.4 D5 AWD [D5244T10] 01/01/10 ST
VOLVO XC60 2.0 D3 [D5204T7] 01/01/12 AT
VOLVO XC60 2.0 D3 [D5204T7] 01/01/12 ST
VOLVO XC60 2.0 D3 DRIVEe [D5204T2] 01.2010-12.2012 AT
VOLVO XC60 2.0 D3 DRIVEe [D5204T2] 01.2010-12.2012 ST
VOLVO V70 2.4 D [D5244T14] 01.2009-12.2010 AT
VOLVO XC60 2.0 D3 DRIVEe [D5204T3] 01.2010-12.2012 AT
VOLVO XC70 2.0 D3 [D5204T2] 01/01/11 AT
VOLVO V70 2.4 D [D5244T14] 01.2009-12.2010 ST
VOLVO XC60 2.0 D3 DRIVEe [D5204T3] 01.2010-12.2012 ST
VOLVO XC70 2.0 D3 [D5204T2] 01/01/11 ST
VOLVO XC60 2.0 D4 [B5204T3] 01/01/12 AT
VOLVO XC60 2.0 D4 [B5204T3] 01/01/12 ST
VOLVO XC70 2.0 D3 [D5204T3] 01/01/11 AT
VOLVO XC70 2.0 D3 [D5204T3] 01/01/11 ST
VOLVO V70 2.4 D [D5244T5] 01.2007-12.2009 AT
VOLVO V70 2.4 D [D5244T5] 01.2007-12.2009 ST
VOLVO XC70 2.4 D [D5244T14] 01.2007-12.2011 AT
VOLVO XC70 2.4 D [D5244T14] 01.2007-12.2011 ST
VOLVO V40 2.0 D3 [D5204T6] 01/01/12 AT
VOLVO V40 2.0 D3 [D5204T6] 01/01/12 ST
VOLVO XC70 2.4 D [D5244T5] 01.2007-12.2011 AT
VOLVO XC70 2.4 D [D5244T5] 01.2007-12.2011 ST
VOLVO V40 2.0 D3 [D5204T6] 01/01/13 AT
VOLVO V40 2.0 D3 [D5204T6] 01/01/13 ST
VOLVO V40 2.0 D4 [D5204T4] 01/01/12 AT
VOLVO V40 2.0 D4 [D5204T4] 01/01/12 ST
VOLVO V70 2.4 D4 AWD [D5244T12] 01/01/13 AT
VOLVO V70 2.4 D4 AWD [D5244T12] 01/01/13 ST
VOLVO V40 2.0 D4 [D5204T4] 01/01/13 AT
VOLVO V40 2.0 D4 [D5204T4] 01/01/13 ST
VOLVO V70 2.4 D4 AWD [D5244T17] 01/01/13 AT
VOLVO V60 2.0 D3 [D5204T2] 01.2010-12.2011 AT
VOLVO V70 2.4 D4 AWD [D5244T17] 01/01/13 ST
VOLVO XC70 2.4 D4 [D5244T12] 01/01/11 AT
VOLVO V60 2.0 D3 [D5204T2] 01.2010-12.2011 ST
VOLVO XC70 2.4 D4 [D5244T12] 01/01/11 ST
VOLVO XC70 2.4 D4 [D5244T5] 01/01/11 AT
VOLVO XC70 2.4 D4 [D5244T5] 01/01/11 ST
VOLVO V70 2.4 D5 [D5244T10] 01.2009-12.2011 AT
VOLVO V70 2.4 D5 [D5244T10] 01.2009-12.2011 ST
VOLVO V60 2.0 D3 [D5204T7] 01/01/12 AT
VOLVO V70 2.4 D5 [D5244T11] 01/01/11 AT
VOLVO V60 2.0 D3 [D5204T7] 01/01/12 ST
VOLVO V70 2.4 D5 [D5244T11] 01/01/11 ST
VOLVO V70 2.0 D3 [D5204T2] 01.2010-12.2011 AT
VOLVO V70 2.0 D3 [D5204T2] 01.2010-12.2011 ST
VOLVO V70 2.4 D5 [D5244T15] 01/01/11 AT
VOLVO V70 2.4 D5 [D5244T15] 01/01/11 ST
VOLVO XC70 2.4 D5 [D5244T10] 01.2007-12.2011 AT
VOLVO XC70 2.4 D5 [D5244T10] 01.2007-12.2011 ST
VOLVO XC70 2.4 D5 [D5244T11] 01/01/11 AT
VOLVO XC70 2.4 D5 [D5244T11] 01/01/11 ST
VOLVO V70 2.0 D3 [D5204T7] 01/01/12 AT
VOLVO XC60 2.4 D AWD [D5244T16] 01.2009-12.2011 AT
VOLVO XC70 2.4 D5 [D5244T15] 01/01/11 AT
VOLVO V70 2.0 D3 [D5204T7] 01/01/12 ST
VOLVO XC60 2.4 D AWD [D5244T16] 01.2009-12.2011 ST
VOLVO XC70 2.4 D5 [D5244T15] 01/01/11 ST
VOLVO V60 2.0 D4 [D5204T3] 01/01/11 AT
VOLVO XC70 2.4 D5 [D5244T20] 01/01/15 AT
VOLVO V60 2.0 D4 [D5204T3] 01/01/11 ST
VOLVO XC70 2.4 D5 [D5244T20] 01/01/15 ST
VOLVO XC60 2.4 D AWD [D5244T5] 01.2009-12.2011 AT
VOLVO XC70 2.4 D5 [D5244T4] 01.2007-12.2011 AT
VOLVO XC60 2.4 D AWD [D5244T5] 01.2009-12.2011 ST
VOLVO XC70 2.4 D5 [D5244T4] 01.2007-12.2011 ST
VOLVO V70 2.4 D5 [D5244T4] 01.2007-12.2009 AT
VOLVO V70 2.4 D5 [D5244T4] 01.2007-12.2009 ST
VOLVO XC60 2.4 D DRIVe [D5244T14] 01.2009-12.2010 AT
VOLVO XC60 2.4 D DRIVe [D5244T14] 01.2009-12.2010 ST
VOLVO XC60 2.4 D4 AWD [D5244T12] 01/01/11 AT
VOLVO S60 2.4 D5 [D5244T23] 01/01/14 ST
VOLVO V70 2.4 D5 AWD [D5244T10] 01.2009-12.2011 AT
VOLVO XC60 2.4 D4 AWD [D5244T12] 01/01/11 ST
VOLVO V70 2.4 D5 AWD [D5244T10] 01.2009-12.2011 ST
VOLVO V70 2.4 D5 AWD [D5244T15] 01/01/11 AT
VOLVO V70 2.4 D5 AWD [D5244T15] 01/01/11 ST
VOLVO XC60 2.4 D4 AWD [D5244T17] 01/01/11 AT
VOLVO XC60 2.4 D4 AWD [D5244T17] 01/01/11 ST
VOLVO S60 2.4 D5 AWD [D5244T23] 01/01/14 ST
VOLVO V70 2.4 D5 AWD [D5244T4] 01.2007-12.2009 AT
VOLVO V70 2.4 D5 AWD [D5244T4] 01.2007-12.2009 ST
VOLVO V60 2.4 D4 AWD [D5244T12] 01/01/13 AT
VOLVO V60 2.4 D4 AWD [D5244T12] 01/01/13 ST
VOLVO V60 2.4 D4 AWD [D5244T17] 01/01/12 AT
VOLVO V60 2.4 D4 AWD [D5244T17] 01/01/12 ST
VOLVO V60 2.4 D5 [D5244T10] 01/01/10 AT
VOLVO V60 2.4 D5 [D5244T10] 01/01/10 ST
VOLVO XC60 2.4 D5 AWD [D5244T4] 01/01/09 AT
VOLVO XC60 2.4 D5 AWD [D5244T4] 01/01/09 ST
