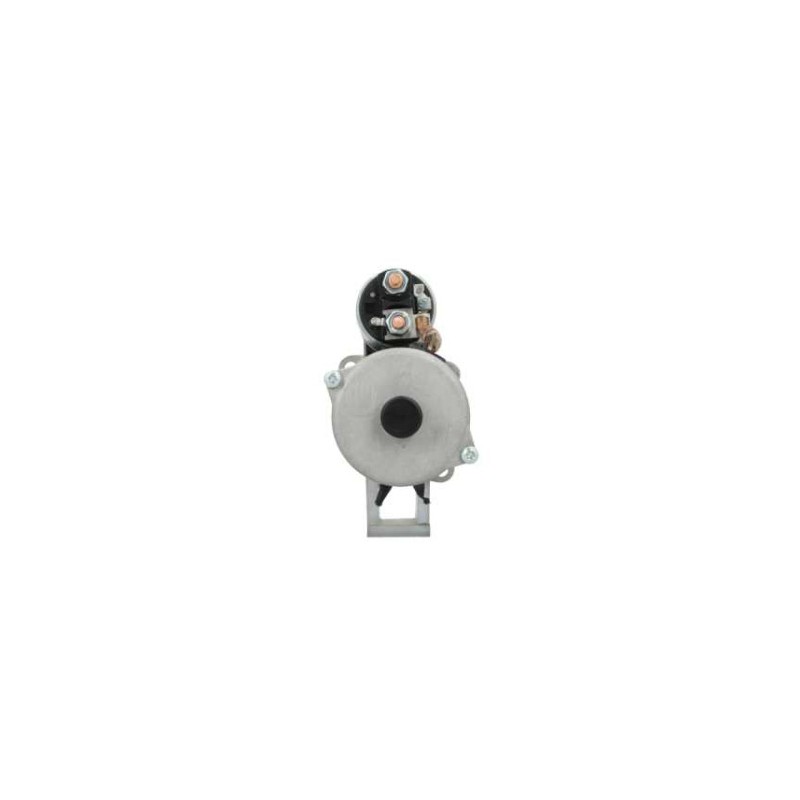

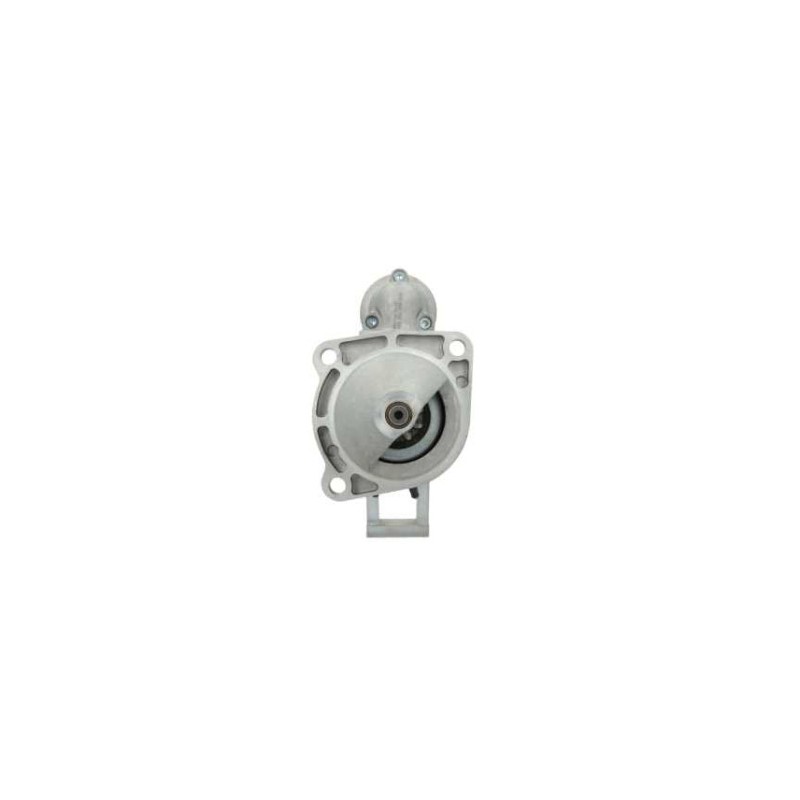

Starter replacing 0001369014 / 0001369024 / 01179318 / 01180805
Starter replacing 0001369014 / 0001369024 / 01179318 / 01180805
BOSCH 0001369014, 0001369024, KHD 01179318, 01179319, 01180805, 117-9318, 117-9319, LEECE NEVILLE 35256954, 35258620, 35258620S, 35262490, LETRIKA (ISKRA) 11.130.567, MAGNETON 9-142-802, PRESTOLITE 35258620
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 3.1 | |

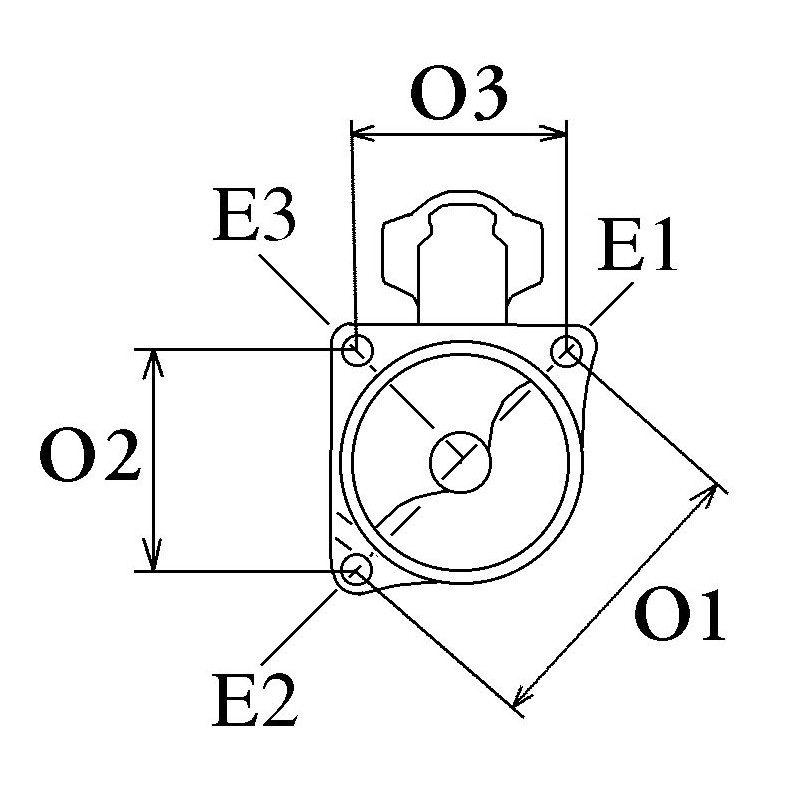

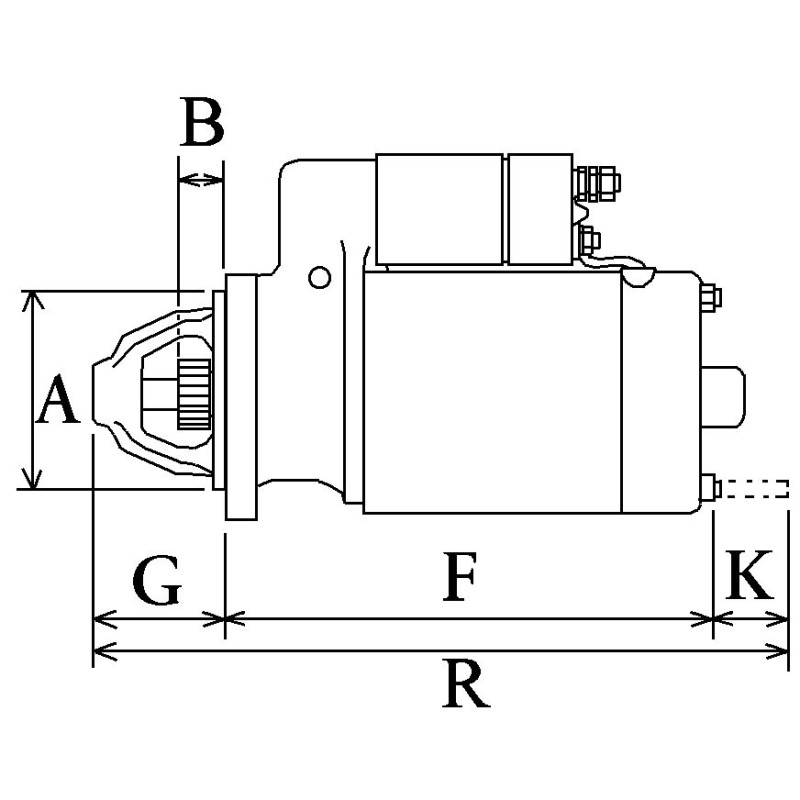

Physical Information | ||
|---|---|---|
| A | Mount flange | 89.00 |
| E | Mounting holes | 10.50 |
| E | Mounting holes 2 | 10.50 |
| E | Mounting holes 3 | 10.50 |
| B | Drive distance | 28.50 |
| F | Distance / Back | 229.30 |
| G | Distance / Front | 72.80 |
| H | Nbr of teeth | 9 |
| I | B+ | M10 |
| N | Gear type | Dd |
| O | Distance mm | 126.50 |
| O | Distance 2 | 89.45 |
| O | Distance 3 | 89.50 |
| P | Rotation | CW |
| R | Total length mm | 303.00 |
generic brand
replacing
| 0001358046 | Bosch |
| 0001358049 | Bosch |
| 0001359027 | Bosch |
| 0001359073 | Bosch |
| 0001369014 | Bosch |
| 01179318 | KHD |
| 01179319 | KHD |
| 01180805 | KHD |
| 05712904R | Bomag |
| 0986016550 | Bosch ruil |
| 0986016557 | Bosch ruil |
| 11011140 | EuroTec |
| 11016550 | EuroTec |
| 11130026 | Mahle |
| 11130567 | Mahle |
| 112555 | Cargo |
| 1161384 | KHD |
| 1163669 | KHD |
| 1164668 | KHD |
| 1164994 | KHD |
| 1173240 | KHD |
| 1179318 | KHD |
| 1179319 | KHD |
| 1182233 | KHD |
| 120590 | PIC |
| 18026 | Lester |
| 19083022 | Delco |
| 252110 | Elstock |
| 2934710 | KHD |
| 33885 | EAI |
| 36117 | Sparex |
| 433318 | Valeo |
| 560002093 | PSH |
| 72735936 | Mahle |
| 8816550F | Friesen |
| 8EA737086001 | Hella |
| 91156896 | Wilson |
| AES9187 | Auto Electro |
| AS1386AC | Auto Charge |
| AZJ3179 | Mahle |
| B15R12X3H7622 | KHD |
| C000900060120 | Agco |
| CS103 | HC |
| DEM110 | ADI |
| DRS6550 | Remy |
| DRS6550N | Remy |
| DS7660 | Remy |
| DS7660N | Remy |
| F119900060010 | Fendt |
| F716903060040 | Fendt |
| IS0026 | Mahle |
| IS0567 | Mahle |
| LES0472 | Lucas |
| LRS00987 | Lucas |
| LRS921 | Lucas |
| LRS987 | Lucas |
| MS308 | Mahle |
| MSR697 | Magneti Marelli |
| RNL1655 | RNL |
| SR9942X | Bosch (USA) |
Used on :
DEUTZ-FAHR
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | Engine in cm3 | Cylindres |
| DX | DX 3.70 | 03/08/19 | Diesel | 1986 06 | - | F4L912 | Diesel | 3770 | 4 |
| DX | DX 3.90 | 04/01/19 | Diesel | 1986 06 | - | F4L913 | Diesel | 4086 | 4 |
| DX | DX 4.10 | 03/08/19 | Diesel | 1986 06 | - | F4L912 | Diesel | 3770 | 4 |
| DX | DX 4.51 | 04/01/19 | Diesel | 1990 01 | - | BF4L913 | Diesel | 4068 | 4 |
| DX | DX 4.70 | 04/01/19 | Diesel | 1986 06 | - | BF4L913 | Diesel | 4086 | 4 |
| DX | DX 6.31 | 01/06/00 | Diesel | 1990 01 | - | BF6L913 | Diesel | 6128 | 6 |
| DX | DX 6.50 | 06/01/19 | Diesel | 1986 06 | - | BF6L913 | Diesel | 6128 | 6 |
| DX | DX 3.50 | 03/01/19 | Diesel | 1986 06 | - | F3L913 | Diesel | 3064 | 3 |
| DX | DX 3.80 | 04/01/19 | Diesel | 1986 06 | - | F4L913 | Diesel | 4086 | 4 |
| DX | DX 4.31 | 04/01/19 | Diesel | 1991 01 | - | F4L913 | Diesel | 4086 | 4 |
| DX | DX 4.50 | 04/01/19 | Diesel | 1986 06 | - | BF4L913 | Diesel | 4086 | 4 |
| DX | DX 7.10 | 06/01/19 | Diesel | 1986 06 | - | BF6L913 | Diesel | 6128 | 6 |
| DX | DX 3.30 | 02/08/19 | Diesel | 1986 06 | - | F3L912 | Diesel | 2827 | 3 |
| DX | DX 3.60 | 03/08/19 | Diesel | 1986 06 | - | F4L912 | Diesel | 3770 | 4 |
| DX | DX 4.30 | 04/01/19 | Diesel | 1986 06 | - | F4L913 | Diesel | 4086 | 4 |
| DX | DX 6.05 | 05/07/19 | Diesel | 1986 06 | - | F6L912 | Diesel | 5655 | 6 |
| DX | DX 3.10 | 02/08/19 | Diesel | 1986 06 | - | F3L912 | Diesel | 2827 | 3 |
| DX | DX 6.30 | 06/01/19 | Diesel | 1986 06 | - | F6L913 | Diesel | 6128 | 6 |
| DX | DX 6.60 | 01/06/00 | Diesel | 1988 10 | - | BF6L913 | Diesel | 6128 | 6 |
| Intrac | Intrac 6.30 | 01/06/00 | Diesel | 1989 01 | - | BF6L913 | TD | 6128 | 6 |
| D Series | D 6807 | 03/08/19 | Diesel | 1986 06 | - | F4L912 | Diesel | 3770 | 4 |
| M Series | M 3330 | 02/08/19 | Diesel | 1987 03 | 2002 03 | F3L912 | 2827 | 3 | |
| M Series | M 1080 | 04/07/19 | Diesel | 1981 01 | - | F5L912 | Diesel | 4712 | 5 |
| M Series | M 1202 | 05/07/19 | Diesel | 1980 01 | - | F6L912 | Diesel | 5655 | 6 |
| M Series | M 3360 | 03/08/19 | Diesel | 1987 03 | 2002 03 | F4L912 | 3770 | 4 | |
| D Series | D 7007 | 03/08/19 | Diesel | 1986 06 | - | F4L912 | Diesel | 3770 | 4 |
| M Series | M 2385 | 05/07/19 | Diesel | 1982 01 | - | F6L912 | Diesel | 5655 | 6 |
| M Series | M 980 | 03/08/19 | Diesel | 1981 01 | - | F4L912 | Diesel | 3770 | 4 |
FENDT
| Farmer | 200 Series | 2.8 | Diesel | 1974 02 | - | F3L912 | Diesel | 0 | 0 | 2830 | 3 |
| Farmer | 204 | 3.8 | Diesel | 1979 02 | - | F4L 912 | Diesel | 48 | 65 | 3770 | 4 |
KHD
| Engine | Engine | 5.7 | Diesel | 1990 05 | - | F6L912 | Diesel | 0 | 0 | 5655 | 6 | ||
| Engine | Engine | 3.8 | Diesel | 1989 07 | - | F4L912 | Diesel | 0 | 0 | 3770 | 4 | ||
| Engine | Engine | 2.8 | Diesel | 1986 07 | - | F3L912.. | Diesel | 0 | 0 | 2827 | 3 |
BOSCH
| DDOD | DDOD 36 | 4.0 | Diesel | 1982 04 | 1999 01 | F4L912 | 0 | 0 | 4026 | 4 | ||||
| DDOD | DDOD 27 | 2.8 | Diesel | 1982 04 | 1999 01 | F3L912 | 0 | 0 | 2826 | 3 |
LINDE, Chariot Elevateur
| H | H 35, 40 | - | - | F4L 912 | 0 | 0 | 0 | ||||||||||
| H | H 70 | - | - | F6L912 | 0 | 0 | 0 |
IRMER
Jenbacher Werke
Kramer
